JS 175 W JCB Excavator Specs & Dimensions - (2008 - 2013)

The JS 175 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine here.…

The JS 175 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine here.

The JCB JS 175 W is a 17.7t machine with Isuzu engine which powers this model with up to 128kW or 171 horse power. The JS 175 W is categorised in the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.27m x 2.81m x (no data).

The JS 175 W is manufactured and distributed with Overload alert. It has been sold without air Quick hitch mech., Cabin adjustment and Material Handling Excavator as of 2013. There are more detailed specifications and machine descriptions available in the original JCB JS 175 W specs data sheet. Specification sheet is available for a free download in English, Spanish, French and Italian - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €177000 and €225000. Production of the JS 175 W stopped in 2013. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 10 other wheel excavators, which range from 11.2t up to 22t are produced by JCB. Of these, JS 145 W, JS 200 W and also JS 175 W are the most frequently visited on LECTURA Specs. We can see currently about 10 models of the JS 175 W wheel excavator with an average age of 7 years and average price of €48300. Want more detailed specifications? Download the latest JCB JS 175 W specs data sheet on LECTURA Specs today!

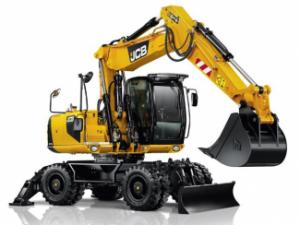

Wheel Excavators JCB JS 175 W

Technical specs - JS 175 W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.7 t
Standard tyres
10.00x20
Boom
VA
Transport length
8.27 m
Transport width
2.81 m
Max. Reach horizontal
9.35 m
Dredging depth
6.1 m
Tear-out force
96 kN
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
128 kW
Displacement
5.199 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, transport height, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, transport height, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, dipper short, boost tearout artic, dipper longest, boost tearout artic, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 175 W FAQ

When was the JCB JS 175 W manufactured?

The JCB JS 175 W was manufactured from 2008 to 2013.

How much does the JCB JS 175 W wheel excavator weigh?

The JCB JS 175 W wheel excavator weighs 17.7 tons.

What are the transport dimensions of the JCB JS 175 W wheel excavator?

The JCB JS 175 W has a transport length of 8.27 meters and a transport width of 2.81 meters.

What is the standard tyre size of the JCB JS 175 W wheel excavator?

The JCB JS 175 W wheel excavator has standard tyres sized 10.00x20.

What are the excavation performance specifications of the JCB JS 175 W wheel excavator?

The JCB JS 175 W wheel excavator has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.35 meters, and features an adjustable boom.

What is the tear-out force of the JCB JS 175 W wheel excavator?

The JCB JS 175 W wheel excavator has a tear-out force of 96 kN.

How much is a JCB JS 175 W Wheel excavator (2008u20132013) worth?

The residual value of the JCB JS 175 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
