HMK 140 W Hidromek Excavator Specs & Dimensions - (2011 - 2020)

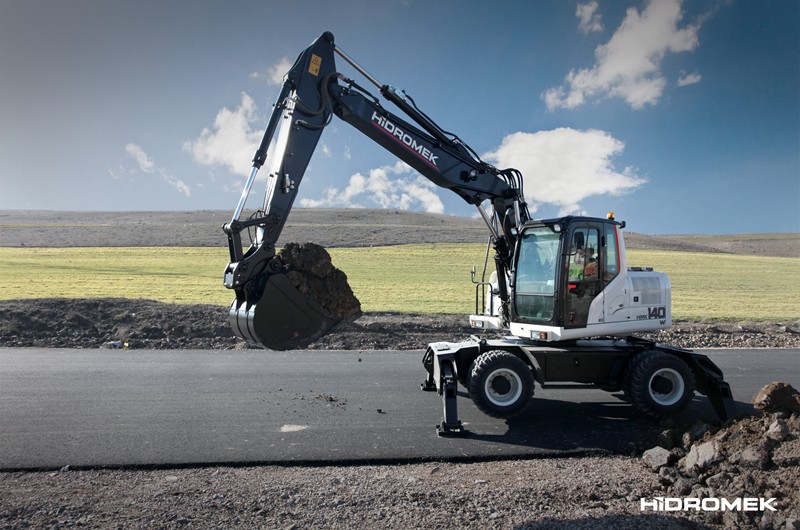

Manufactured by Hidromek, this is the HMK 140 W wheel excavator. Find and download detailed specs and data sheets for this machine…

Manufactured by Hidromek, this is the HMK 140 W wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 84.7kW or 113 horse power, delivered from its powerful Isuzu engine to the 15.7t HMK 140 W machine. This Hidromek wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.12m x 2.5m x 3.28m. The bucket of HMK 140 W has a capacity of 0,6m³ which is average for this type of machine.

The Hidromek HMK 140 W has been equipped and sold with Aircondition, Cabin adjustment and Diesel particulate filter. Material Handling Excavator, Overload alert and Quick hitch mech. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Hidromek HMK 140 W specs data sheet.

The production is still going in 2017, where this HMK 140 W is available at a new list price between €97000 and €123000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Hidromek models of this type on LECTURA Specs are the HMK 200 W, and 1 other wheel excavators, which currently range from 22.1t up to 22.1t are also available. This HMK 140 W wheel excavator, which has been in production between 2011 and 2017 ranks in the LECTURA index at #124. Want more detailed specifications? Download the latest Hidromek HMK 140 W specs data sheet on LECTURA Specs today!

Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W
Wheel Excavators Hidromek HMK 140 W

Visit Hidromek live at

Technical specs - HMK 140 W Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.2 t
Standard tyres
10.00-20 7.5-20
Bucket capacity
0.6 m³
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
7.78 m
Transport width
2.5 m
Transport height
3.4 m
Max. Reach horizontal
7.99 m
Dredging depth
5.02 m
Tear-out force
105.9 kN
Bucket width
1 m
Travel speed
33 km/h
Model series
HMK
Engine manuf.
Isuzu
Engine type
AI-4JJ 1 X
Engine power
92 kW
Displacement
2.999 l
Revolutions at max torque
1800 rpm
Max. torque
420 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
III A / Tier 3

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Hidromek HMK 140 W FAQ

When was the Hidromek HMK 140 W manufactured?

The Hidromek HMK 140 W was manufactured from 2011 to 2020.

How much does the Hidromek HMK 140 W weigh?

The Hidromek HMK 140 W weighs 16.2 tons.

What are the transport dimensions of the Hidromek HMK 140 W wheel excavator?

The Hidromek HMK 140 W has a transport length of 7.78 meters, a transport width of 2.5 meters, and a transport height of 3.4 meters.

What is the travel speed of the Hidromek HMK 140 W wheel excavator?

The Hidromek HMK 140 W has a travel speed of 33 km/h.

What are the undercarriage specifications of the Hidromek HMK 140 W wheel excavator?

The Hidromek HMK 140 W is equipped with standard tyres sized 10.00-20 and 7.5-20, and it features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hidromek HMK 140 W wheel excavator?

The Hidromek HMK 140 W has a dredging depth of 5.02 meters, a maximum horizontal reach of 7.99 meters, and features a monobloc boom.

What is the tear-out force of the Hidromek HMK 140 W wheel excavator?

The Hidromek HMK 140 W has a tear-out force of 105.9 kN.

What are the specifications of the primary work tool on the Hidromek HMK 140 W wheel excavator?

The primary work tool of the Hidromek HMK 140 W wheel excavator has a bucket capacity of 0.6 cubic meters and a bucket width of 1 meter.

How much is a Hidromek HMK 140 W Wheel excavator (2011u20132020) worth?

The residual value of the Hidromek HMK 140 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
