E 175 WT Fiat Kobelco Excavator Specs & Dimensions - (2003 - 2005)

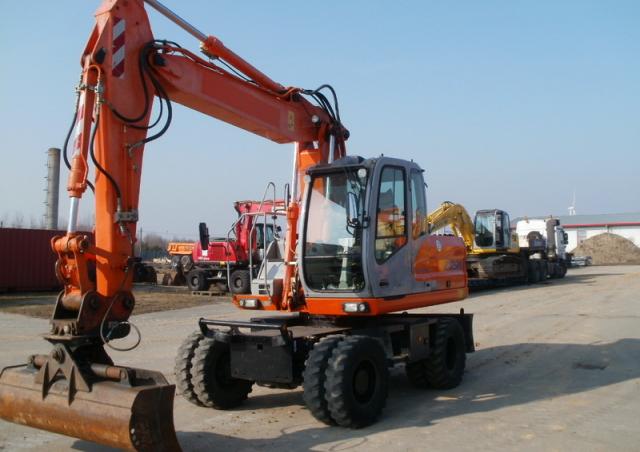

Manufactured by Fiat Kobelco, this is the E 175 WT wheel excavator. Find and download detailed specs and data sheets for this mach…

Manufactured by Fiat Kobelco, this is the E 175 WT wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Fiat Kobelco E 175 WT is a 18.05t machine with Iveco engine which powers this model with up to 118kW or 158 horse power. The Fiat Kobelco E 175 WT can be grouped in the medium sized machine segment in the wheel excavators category. The model's dimensions are 7.825m x 2.53m x 3.14m. The bucket capacity of E 175 WT is 0,93m³, which is above average for this type of machine.

The E 175 WT is manufactured and distributed with Blade, Overload alert and Aircondition. It does not include Cabin adjustment, Quick hitch hydr. And Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Fiat Kobelco E 175 WT specs data sheet. You can download it for free in English and German on LECTURA Specs.

The production stopped in 2005, where this E 175 WT was available at a new list price between €150000 and €191000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Fiat Kobelco currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Fiat Kobelco E 175 WT specs data sheet on LECTURA Specs today!

Wheel Excavators Fiat Kobelco E 175 WT

Technical specs - E 175 WT Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.05 t
Standard tyres
10.00-20
Bucket capacity
0.93 m³
Boom
VA
Transport length
7.825 m
Transport width
2.53 m
Transport height
3.14 m
Max. Reach horizontal
9.39 m
Dredging depth
5.51 m
Bucket width
2.44 m
Engine manuf.
Iveco
Engine type
F4BE0684B
Engine power
118 kW
Displacement
5.9 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco E 175 WT FAQ

When was the Fiat Kobelco E 175 WT manufactured?

The Fiat Kobelco E 175 WT was manufactured from 2003 to 2005.

How much does the Fiat Kobelco E 175 WT weigh?

The Fiat Kobelco E 175 WT weighs 18.05 tons.

What are the transport dimensions of the Fiat Kobelco E 175 WT wheel excavator?

The Fiat Kobelco E 175 WT has a transport length of 7.83 meters, a transport width of 2.53 meters, and a transport height of 3.14 meters.

What is the standard tyre size of the Fiat Kobelco E 175 WT undercarriage?

The Fiat Kobelco E 175 WT has standard tyres of size 10.00-20.

What are the excavation performance specifications of the Fiat Kobelco E 175 WT wheel excavator?

The Fiat Kobelco E 175 WT has a dredging depth of 5.51 meters, a maximum horizontal reach of 9.39 meters, and features an adjustable boom.

What are the primary work tool specifications of the Fiat Kobelco E 175 WT?

The Fiat Kobelco E 175 WT has a bucket capacity of 0.93 cubic meters and a bucket width of 2.44 meters.

How much is a Fiat Kobelco E 175 WT Wheel excavator (2003u20132005) worth?

The residual value of the Fiat Kobelco E 175 WT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
