1000 FAI Excavator Specs & Dimensions - (1990 - 1993)

The 1000 wheel excavator model is manufactured by FAI. Find and download detailed specs and data sheets for this machine here. …

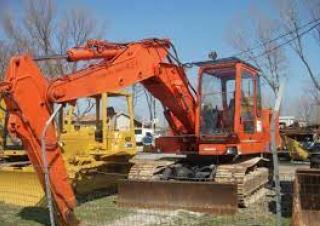

The 1000 wheel excavator model is manufactured by FAI. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 70.5kW or 94 horse power, delivered from its powerful Perkins engine to the 16t 1000 machine. The 1000 is categorised in the medium sized machine segment in the wheel excavators category. The 1000’s size is 2.44m x 7.1m x 3.1m. The bucket of 1000 has a capacity of 0,6m³ which is average for this type of machine.

Blade, Quick hitch mech. And Track guidance are not provided on this model as of 1993. There are more detailed specifications and machine descriptions available in the original FAI 1000 specs data sheet.

The production stopped in 1993, where this 1000 was available at a new list price between €91000 and €116000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

FAI currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest FAI 1000 specs data sheet on LECTURA Specs today!

Wheel Excavators FAI 1000

Technical specs - 1000 FAI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Standard tyres
18 R 19.5XF
Bucket capacity
0.6 m³
Transport length
7.1 m
Transport width
2.44 m
Transport height
3.1 m
Engine manuf.
Perkins
Engine type
T 4.236 I
Engine power
70.5 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

FAI 1000 FAQ

When was the FAI 1000 wheel excavator manufactured?

The FAI 1000 wheel excavator was manufactured from 1990 to 1993.

How much does the FAI 1000 wheel excavator weigh?

The FAI 1000 wheel excavator weighs 16 tons.

What are the transport dimensions of the FAI 1000 wheel excavator?

The FAI 1000 wheel excavator has a transport length of 7.1 meters, a transport width of 2.44 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the FAI 1000 wheel excavator?

The FAI 1000 wheel excavator is equipped with standard tyres sized 18 R 19.5XF.

What is the bucket capacity of the FAI 1000 wheel excavator?

The FAI 1000 wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a FAI 1000 Wheel excavator (1990u20131993) worth?

The residual value of the FAI 1000 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
