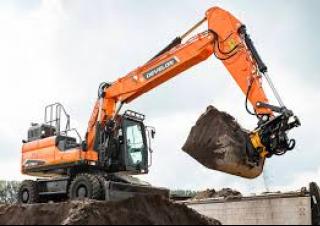

Wheel Excavators Develon DX170W-7
Wheel Excavators Develon DX170W-7
Wheel Excavators Develon DX170W-7
Wheel Excavators Develon DX170W-7

Visit Develon live at

Technical specs - DX170W-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.1 t
Standard tyres
10.00-20 16PR
Bucket capacity
0.66 m³
Bucket capacity min.
0.66 m³
Bucket capacity max.
0.66 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
8.64 m
Transport width
2.53 m
Transport height
3.098 m
Max. Reach horizontal
8.695 m
Dredging depth
5.32 m
Bucket width
1.058 m
Dipper length
2.5 m
Turning radius outside
5.872 m
Travel speed
37 km/h
Model series
DX
Engine manuf.
Develon
Engine type
DL06V
Engine power
113 kW
Dimension lxwxh
1094x847x948 mm
Displacement
5.89 l
Revolutions at max torque
2000 rpm
Max. torque
660/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Stage V

More technical details, like: tear-out force, turning radius inside are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX170W-7 FAQ

When was the Develon DX170W-7 manufactured?

The Develon DX170W-7 was first produced in 2023.

How much does the Develon DX170W-7 wheel excavator weigh?

The Develon DX170W-7 wheel excavator weighs 18.1 tons.

What are the transport dimensions of the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 has a transport length of 8.64 meters, a transport width of 2.53 meters, and a transport height of 3.098 meters.

What is the travel speed of the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 has a travel speed of 37 km/h.

What are the undercarriage specifications of the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 is equipped with 10.00-20 16PR standard tyres and features 4-fold outrigger stabilisers.

What is the outside turning radius of the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 has an outside turning radius of 5.872 meters.

What are the excavation performance specifications of the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 has a dredging depth of 5.32 meters, a maximum horizontal reach of 8.695 meters, features a Monobloc boom, and has a dipper length of 2.5 meters.

What are the specifications of the primary work tool on the Develon DX170W-7 wheel excavator?

The Develon DX170W-7 is equipped with a bucket that has a capacity of 0.66 cubic meters and a width of 1.058 meters.

How much is a Develon DX170W-7 Wheel excavator (2023u20132025) worth?

The residual value of the Develon DX170W-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
