M318C Caterpillar Excavator Specs & Dimensions - (2005 - 2011)

Weight: 19.7t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 1.09m³ – Boom: MB – Transport leng…

Weight: 19.7t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 1.09m³ – Boom: MB – Transport length: 8.95m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M318C excavator manufactured between 2005 - 2011. Get more in-depth insight with Caterpillar M318C digger specifications. See information, like: Weight: 19.7t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.35m³ – Bucket capacity max.: 1.09m³ – Boom: MB – Transport length: 8.95m and more.

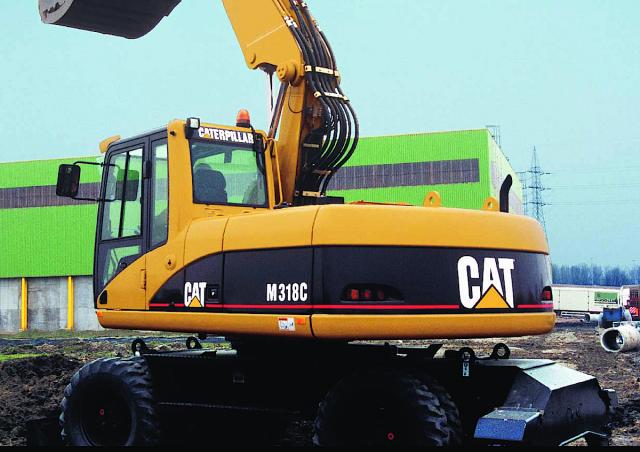

Wheel Excavators Caterpillar M318C

Technical specs - M318C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.7 t
Standard tyres
10.00-20
Bucket capacity min.
0.35 m³
Bucket capacity max.
1.09 m³
Boom
MB
Transport length
8.95 m
Transport width
2.55 m
Transport height
3.33 m
Max. Reach horizontal
9.6 m
Dredging depth
6.3 m
Tear-out force
118 kN
Bucket width
1.4 m
Travel speed
34 km/h
Engine manuf.
Caterpillar
Engine type
3056 ATAAC
Engine power
113 kW
Displacement
6 l
No. of cylinders
6
Cylinder bore x stroke
100x127 mm

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M318C FAQ

When was the Caterpillar M318C manufactured?

The Caterpillar M318C was manufactured from 2005 to 2011.

How much does the Caterpillar M318C weigh?

The Caterpillar M318C weighs 19.7 tons.

What are the transport dimensions of the Caterpillar M318C wheel excavator?

The Caterpillar M318C has a transport length of 8.95 meters, a transport width of 2.55 meters, and a transport height of 3.33 meters.

What is the travel speed of the Caterpillar M318C wheel excavator?

The Caterpillar M318C wheel excavator has a travel speed of 34 km/h.

What are the undercarriage tyre specifications of the Caterpillar M318C wheel excavator?

The Caterpillar M318C wheel excavator is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the Caterpillar M318C wheel excavator?

The Caterpillar M318C wheel excavator has a dredging depth of 6.3 meters, a maximum horizontal reach of 9.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar M318C wheel excavator?

The Caterpillar M318C wheel excavator has a tear-out force of 118 kN.

What are the specifications of the primary work tool bucket on the Caterpillar M318C wheel excavator?

The primary work tool bucket of the Caterpillar M318C has a maximum capacity of 1.09 cubic meters, a minimum capacity of 0.35 cubic meters, and a width of 1.4 meters.

How much is a Caterpillar M318C Wheel excavator (2005u20132011) worth?

The residual value of the Caterpillar M318C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
