M317 Caterpillar Excavator Specs & Dimensions - (2020 - 2026)

Weight: 18.55t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport lengt…

Weight: 18.55t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.455m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M317 excavator manufactured between 2020 - 2026. Get more in-depth insight with Caterpillar M317 digger specifications. See information, like: Weight: 18.55t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.455m and more.

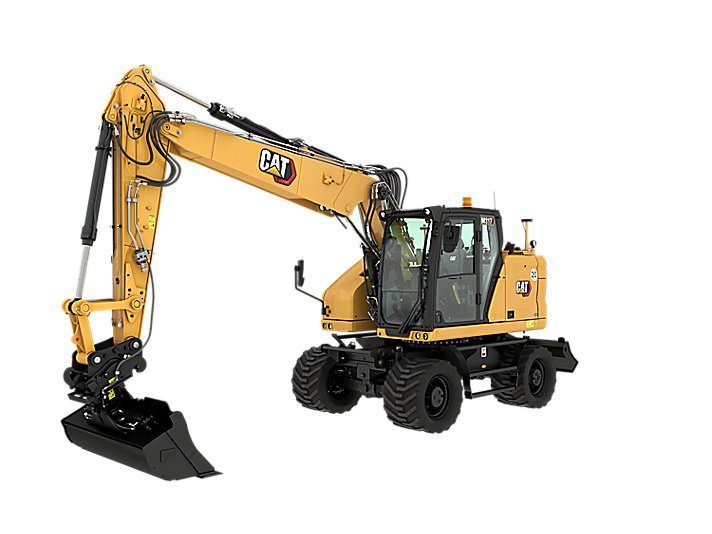

Wheel Excavators Caterpillar M317

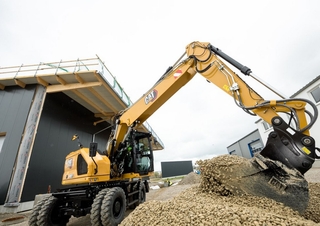

Wheel Excavators Caterpillar M317

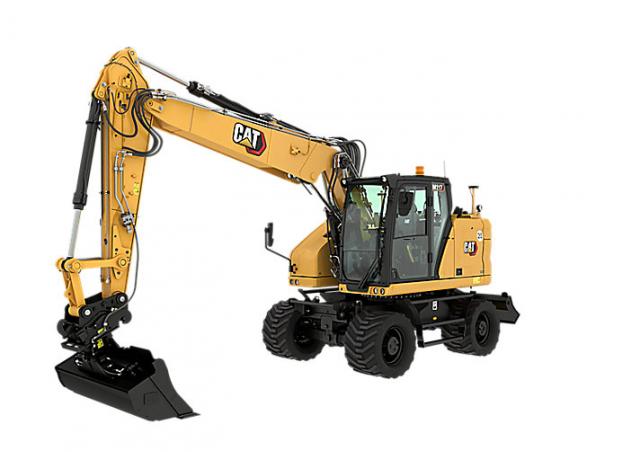

Wheel Excavators Caterpillar M317
Wheel Excavators Caterpillar M317

Technical specs - M317 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.55 t
Standard tyres
10.00-20
Bucket capacity
0.8 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.455 m
Transport width
2.71 m
Transport height
3.3 m
Max. Reach horizontal
8.87 m
Dredging depth
5.69 m
Tear-out force
92 kN
Bucket width
1.1 m
Turning radius outside
6.4 m
Travel speed
30 km/h
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
112 kW
Displacement
4.4 l
Max. torque
710/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M317 FAQ

When was the Caterpillar M317 manufactured?

The Caterpillar M317 was first produced in 2020.

How much does the Caterpillar M317 wheel excavator weigh?

The Caterpillar M317 wheel excavator weighs 18.55 tons.

What are the transport dimensions of the Caterpillar M317 wheel excavator?

The Caterpillar M317 has a transport length of 8.46 meters, a transport width of 2.71 meters, and a transport height of 3.3 meters.

What is the travel speed of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator has a travel speed of 30 km/h.

What are the undercarriage specifications of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator has an outside turning radius of 6.4 meters.

What are the excavation performance specifications of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator has a dredging depth of 5.69 meters, a maximum horizontal reach of 8.87 meters, and features an adjustable boom.

What is the tear-out force of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator has a tear-out force of 92 kN.

What are the bucket specifications of the Caterpillar M317 wheel excavator?

The Caterpillar M317 wheel excavator has a bucket capacity of 0.8 cubic meters and a bucket width of 1.1 meters.

How much is a Caterpillar M317 Wheel excavator (2020u20132025) worth?

The residual value of the Caterpillar M317 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
