M316 Caterpillar Excavator Specs & Dimensions - (2020 - 2026)

Weight: 17.5t – Standard tyres: 10.00-20 – Bucket capacity: 0.72m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport lengt…

Weight: 17.5t – Standard tyres: 10.00-20 – Bucket capacity: 0.72m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.485m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M316 excavator manufactured between 2020 - 2026. Get more in-depth insight with Caterpillar M316 digger specifications. See information, like: Weight: 17.5t – Standard tyres: 10.00-20 – Bucket capacity: 0.72m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.485m and more.

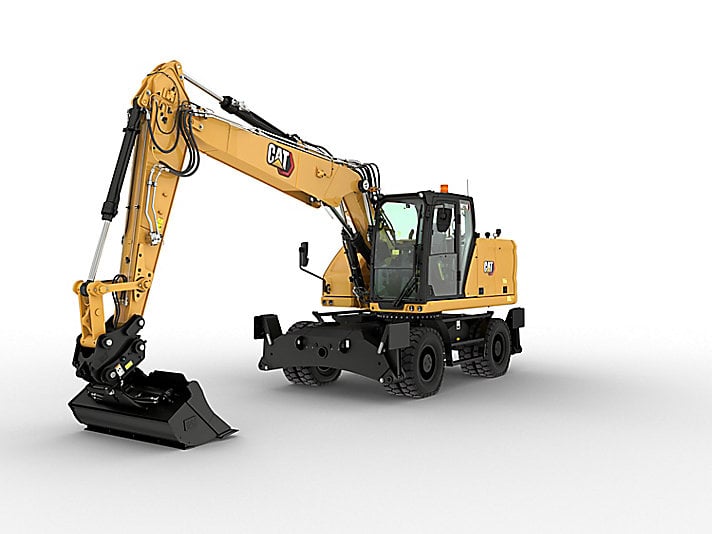

Wheel Excavators Caterpillar M316

Technical specs - M316 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.5 t
Standard tyres
10.00-20
Bucket capacity
0.72 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.485 m
Transport width
2.55 m
Transport height
3.3 m
Max. Reach horizontal
8.73 m
Dredging depth
5.41 m
Tear-out force
114 kN
Bucket width
1.1 m
Dipper length
2.5 m
Turning radius outside
6.3 m
Travel speed
35 km/h
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
110 kW
Displacement
4.4 l
Max. torque
710/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M316 FAQ

When was the Caterpillar M316 manufactured?

The Caterpillar M316 was first produced in 2020.

How much does the Caterpillar M316 wheel excavator weigh?

The Caterpillar M316 wheel excavator weighs 17.5 tons.

What are the transport dimensions of the Caterpillar M316 wheel excavator?

The Caterpillar M316 has a transport length of 8.49 meters, a transport width of 2.55 meters, and a transport height of 3.3 meters.

What is the travel speed of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has a travel speed of 35 km/h.

What is the average fuel consumption of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has an average fuel consumption of 9.3 liters per hour.

What are the undercarriage specifications of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has an outside turning radius of 6.3 meters.

What are the excavation performance specifications of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has an adjustable boom, a dredging depth of 5.41 meters, a maximum horizontal reach of 8.73 meters, and a dipper length of 2.5 meters.

What is the tear-out force of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has a tear-out force of 114 kN.

What are the bucket specifications of the Caterpillar M316 wheel excavator?

The Caterpillar M316 wheel excavator has a bucket capacity of 0.72 cubic meters and a bucket width of 1.1 meters.

How much is a Caterpillar M316 Wheel excavator (2020u20132025) worth?

The residual value of the Caterpillar M316 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar M316 overview

Caterpillar M316 features overview

With Cat Attachments

You can easily expand the performance of your machine by utilizing any of the variety of Cat Attachments. Each Cat Attachment is designed to fit the weight and horsepower of Cat wheeled excavators for improved performance, safety, and stability.


Engine

Maximize Performance

Work faster with up to 14% more swing torque with lower fuel and DEF consumption. Tiltrotator integration gives you more versatility to complete more tasks faster with one machine.


New Filters

Two levels of filtration protect your engine from dirty diesel. The new hydraulic oil filter improves filtration performance and lasts up to 50 percent longer than previous filter designs.


Operator's cab

Boosting Efficiency

The Cat M316 increases your productivity with more comfort in the cab, full tiltrotator integration, and easy-to-use controls. Lower fuel and maintenance costs puts money back in your pocket.


Next-Generation Wheeled Excavators

The new wheeled excavators match your performance needs to bring you: Lower operating and maintenance costs Increased operator efficiency and visibility More in-cab comfort.


Enhanced Cab Comfort

Operate comfortably with the ergonomic control layout and cab options. Get better visibility with rear-and side-view cameras and an optional 360-degree machine view system.


Cab Accessibility

Get in and out of the cab more easily with the tilt-up left console. Deluxe and Premium cab options offer supreme comfort from a heated/cooled seat to automatic temperature control.


Ergonomic Control Layout

Controls are positioned to reduce fatigue and straining movements to help keep you operating at your full potential.


Machine Settings

Access the operator manual at your fingertips as well as the power mode selector to keep productivity while using less fuel.


Touchscreen Monitor

Use the standard 254 mm (10-in) touchscreen monitor to adjust your heating/cooling setting for more comfort or to view your machine information.


Swing system

Air Conditioning System

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant, which has a CO2 equivalent of 1.216 metric tonnes.


Serviceability

Up to 10% Maintenance Savings

Fewer maintenance costs, combined with 100% daily ground-level maintenance and extended service intervals, increases uptime and keeps overall costs down.


Longer Service Intervals

The in-cab monitor tracks filter life and machine intervals, so you always know when it’s time for regular machine service.
