M315D2 Caterpillar Excavator Specs & Dimensions - (2017 - 2026)

Weight: 15.2t – Standard tyres: 10.00-20 – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length…

Weight: 15.2t – Standard tyres: 10.00-20 – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.31m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M315D2 excavator manufactured between 2017 - 2026. Get more in-depth insight with Caterpillar M315D2 digger specifications. See information, like: Weight: 15.2t – Standard tyres: 10.00-20 – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.31m and more.

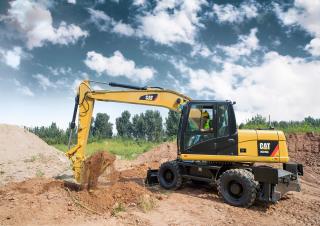

Wheel Excavators Caterpillar M315D2

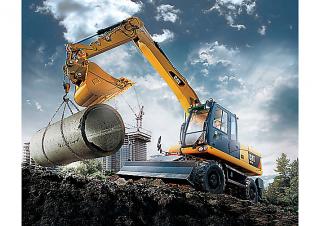

Wheel Excavators Caterpillar M315D2
Wheel Excavators Caterpillar M315D2
Wheel Excavators Caterpillar M315D2
Wheel Excavators Caterpillar M315D2
Wheel Excavators Caterpillar M315D2

Technical specs - M315D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.2 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.31 m
Transport width
2.55 m
Transport height
3.12 m
Max. Reach horizontal
8.52 m
Dredging depth
5.3 m
Tear-out force
103 kN
Bucket width
1 m
Dipper length
2 m
Turning radius outside
6.2 m
Travel speed
37 km/h
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
101 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
550 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3/EU IIIA/China III Nonroad

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M315D2 FAQ

When was the Caterpillar M315D2 manufactured?

The Caterpillar M315D2 was first produced in 2017.

How much does the Caterpillar M315D2 wheel excavator weigh?

The Caterpillar M315D2 wheel excavator weighs 15.2 tons.

What are the transport dimensions of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 has a transport length of 8.31 meters, a transport width of 2.55 meters, and a transport height of 3.12 meters.

What is the travel speed of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 has a travel speed of 37 km/h.

What is the average fuel consumption of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 wheel excavator has an average fuel consumption of 13.8 liters per hour.

What are the undercarriage specifications of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 has an outside turning radius of 6.2 meters.

What are the excavation performance specifications of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 wheel excavator has a dredging depth of 5.3 meters, a maximum horizontal reach of 8.52 meters, features an adjustable boom, and has a dipper length of 2 meters.

What is the tear-out force of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 wheel excavator has a tear-out force of 103 kN.

What are the bucket specifications of the Caterpillar M315D2 wheel excavator?

The Caterpillar M315D2 has a bucket capacity of 0.6 cubic meters and a bucket width of 1 meter.

How much is a Caterpillar M315D2 Wheel excavator (2017u20132025) worth?

The residual value of the Caterpillar M315D2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
