M315 Caterpillar Excavator Specs & Dimensions - (2021 - 2026)

Weight: 14.47t – Standard tyres: 10.00-20 – Bucket capacity: 0.63m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport leng…

Weight: 14.47t – Standard tyres: 10.00-20 – Bucket capacity: 0.63m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.14m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M315 excavator manufactured between 2021 - 2026. Get more in-depth insight with Caterpillar M315 digger specifications. See information, like: Weight: 14.47t – Standard tyres: 10.00-20 – Bucket capacity: 0.63m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.14m and more.

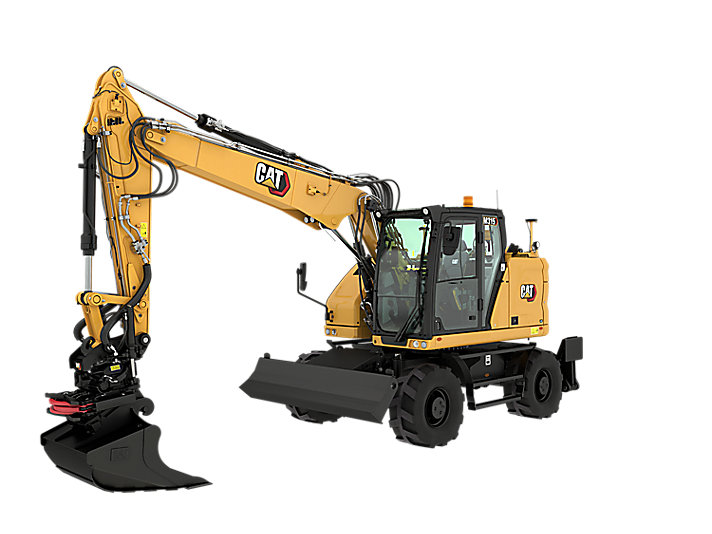

Wheel Excavators Caterpillar M315

Technical specs - M315 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.47 t
Standard tyres
10.00-20
Bucket capacity
0.63 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.14 m
Transport width
2.55 m
Transport height
3.3 m
Max. Reach horizontal
8.7 m
Dredging depth
5.46 m
Tear-out force
103 kN
Bucket width
1.1 m
Dipper length
2.5 m
Turning radius outside
6.3 m
Travel speed
30 km/h
Engine manuf.
Caterpillar
Engine type
C4.4
Engine power
110 kW
Displacement
4.4 l
Max. torque
710/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M315 FAQ

When was the Caterpillar M315 manufactured?

The Caterpillar M315 was first produced in 2021.

How much does the Caterpillar M315 wheel excavator weigh?

The Caterpillar M315 wheel excavator weighs 14.47 tons.

What are the transport dimensions of the Caterpillar M315 wheel excavator?

The Caterpillar M315 has a transport length of 8.14 meters, a transport width of 2.55 meters, and a transport height of 3.3 meters.

What is the travel speed of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator has a travel speed of 30 km/h.

What are the undercarriage specifications of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator has an outside turning radius of 6.3 meters.

What are the excavation performance specifications of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator has a dredging depth of 5.46 meters, a maximum horizontal reach of 8.7 meters, features an adjustable boom, and has a dipper length of 2.5 meters.

What is the tear-out force of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator has a tear-out force of 103 kN.

What are the bucket specifications of the Caterpillar M315 wheel excavator?

The Caterpillar M315 wheel excavator has a bucket capacity of 0.63 cubic meters and a bucket width of 1.1 meters.

How much is a Caterpillar M315 Wheel excavator (2021u20132025) worth?

The residual value of the Caterpillar M315 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
