WX145 S-3 Case Excavator Specs & Dimensions - (2008 - 2019)

Weight: 16.5t – Standard tyres: 600/40 - 22.5 – Bucket capacity min.: 0.2m³ – Bucket capacity max.: 0.8m³ – Boom: MB – Transport l…

Weight: 16.5t – Standard tyres: 600/40 - 22.5 – Bucket capacity min.: 0.2m³ – Bucket capacity max.: 0.8m³ – Boom: MB – Transport length: 8.25m

Check out detailed dimensions, specifications, information and technical data for Case WX145 S-3 excavator manufactured between 2008 - 2019. Get more in-depth insight with Case WX145 S-3 digger specifications. See information, like: Weight: 16.5t – Standard tyres: 600/40 - 22.5 – Bucket capacity min.: 0.2m³ – Bucket capacity max.: 0.8m³ – Boom: MB – Transport length: 8.25m and more.

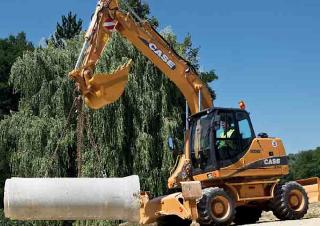

Wheel Excavators Case WX145 S-3

Technical specs - WX145 S-3 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Standard tyres
600/40 - 22.5
Bucket capacity min.
0.2 m³
Bucket capacity max.
0.8 m³
Boom
MB
Transport length
8.25 m
Transport width
2.53 m
Transport height
3.05 m
Max. Reach horizontal
8.4 m
Dredging depth
5.5 m
Tear-out force
104.3 kN
Bucket width
1.2 m
Travel speed
30 km/h
Model series
S
Engine manuf.
Case
Engine type
445TA/MLH
Engine power
90 kW
Displacement
4.5 l
No. of cylinders
4
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX145 S-3 FAQ

When was the Case WX145 S-3 manufactured?

The Case WX145 S-3 was manufactured from 2008 to 2019.

How much does the Case WX145 S-3 wheel excavator weigh?

The Case WX145 S-3 wheel excavator weighs 16.5 tons.

What are the transport dimensions of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 has a transport length of 8.25 meters, a transport width of 2.53 meters, and a transport height of 3.05 meters.

What is the travel speed of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 has a travel speed of 30 km/h.

What are the undercarriage tyre specifications of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 wheel excavator is equipped with standard tyres sized 600/40 - 22.5.

What are the excavation performance specifications of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 wheel excavator has a tear-out force of 104.3 kN.

What are the bucket specifications of the Case WX145 S-3 wheel excavator?

The Case WX145 S-3 has a bucket with a maximum capacity of 0.8 cubic meters, a minimum capacity of 0.2 cubic meters, and a width of 1.2 meters.

How much is a Case WX145 S-3 Wheel excavator (2008u20132019) worth?

The residual value of the Case WX145 S-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
