    Lectura specs Construction machinery Wheel Excavators Wheel Excavators Case Case WX 185 S-3 specifications

    Case WX 185 S-3 excavator specs (2008 - 2014)

    Rate this machine now!

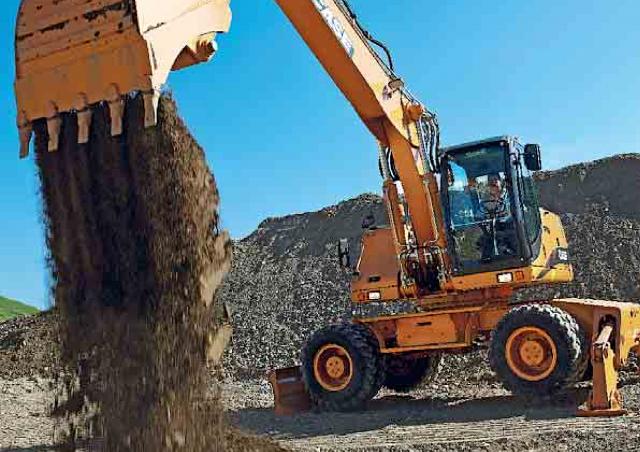

    Manufactured by case, this is the WX 185 S-3 wheel excavator. Find and download detailed specs and data sheets for this machine he... Read more

    Manufactured by case, this is the WX 185 S-3 wheel excavator. Find and download detailed specs and data sheets for this machine here.

    This wheel excavator is built to provide up to 118kW or 158 horse power, delivered from its powerful case engine to the 18.65t WX 185 S-3 machine. The case WX 185 S-3 can be grouped in the biggest machine segment in the wheel excavators category. The model's dimensions are 8.57m x 2.53m x 2.4m. The bucket of WX 185 S-3 has a capacity of 0,9m³ which is average for this type of machine.

    The case WX 185 S-3 has been equipped and sold with Blade. It does not include Track guidance, Material Handling Excavator and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original case WX 185 S-3 specs data sheet. Available in German, Italian, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    This model can be acquired for a list price between €200000 and €254000. Production of the WX 185 S-3 stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 188, WX 148, WX 168. Want more detailed specifications? Download the latest case WX 185 S-3 specs data sheet on LECTURA Specs today!

    Technical specs - WX 185 S-3 Case

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 18.65 t
    • Standard tyres 18-19.5XF
    • Bucket capacity 0,9 m³
    • Boom MB
    • Transport length 8.57 m
    • Transport width 2.53 m
    • Transport height 2.4 m
    • Max. Reach horizontal 8,8 m
    • Dredging depth 5,2 m
    • Tear-out force 111,6 kN
    • Bucket width 1,2 m
    • Engine manuf. Case
    • Engine type 667TA-MEB
    • Engine power 118 kW
    • Displacement 6.7 l
    • Revolutions at max torque 2000 rpm
    • Bucket capacity min. ###
    • Bucket capacity max. ###
    • Outrigger stabilisers ###
    • Dipper length ###
    • Turning radius inside ###
    • Turning radius outside ###
    • Travel speed ###
    • Dimension lxwxh ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###
    • Number Of Mono Booms ###
    • Total Number Of Dippers - Mono ###
    • Number Of Articulated Booms ###
    • Engine Manufacturer ###
    • Engine Model ###
    • Rated Speed ###
    • Engine Output - Net ###
    • Transmission Type ###
    • Tyre Size - Standard ###
    • Number Of Tyres - Standard ###
    • Maximum Transport Length - Mono Boom ###
    • Transport Height - Over Mono Boom ###
    • Wheelbase ###
    • Rear Axle To Slew Centre ###
    • Cab Height ###
    • Ground Clearance ###
    • Machine Width - Maximum ###
    • Overall Width - Stabilisers Down ###
    • Mono Boom Size ###
    • Standard Dipper Length ###
    • Longest Dipper Length ###
    • Ground Level Reach - Mono Boom ###
    • Maximum Dig Height - Mono Boom ###
    • Dump Clearance Height - Mono Boom ###
    • Dig Depth - Mono Boom ###
    • Dig Depth - Articulated Boom ###
    • Fuel Tank ###
    • Slew Speed ###
    • Max bucket breakout, Mono Boom ###
    • Boom Pressure ###
    • Operating Weight ###

    Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Track guidance
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
