200 MH Atlas Excavator Specs & Dimensions - (2010 - 2013)

Manufactured by Atlas, this is the 200 MH wheel excavator. Find and download detailed specs and data sheets for this machine here.…

Manufactured by Atlas, this is the 200 MH wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Atlas 200 MH is a 18t machine with Deutz engine which powers this model with up to 105kW or 140 horse power. The Atlas 200 MH can be grouped in the medium sized machine segment in the wheel excavators category. The 200 MH’s size is 2.49m x 8.49m x 3.08m. The bucket capacity of 200 MH is 1m³, which is above average for this type of machine.

The 200 MH is manufactured and distributed with Overload alert, Material Handling Excavator and Aircondition. It does not include Diesel particulate filter, Blade and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Atlas 200 MH specs data sheet. You can download it for free in French, German and English on LECTURA Specs.

The production stopped in 2013, where this 200 MH was available at a new list price between €257000 and €327000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Atlas models of this type on LECTURA Specs are the 350 MH, 1604 ZW and 1404 ZW, and 15 other wheel excavators, which currently range from 14.9t up to 52t are also available. Currently, 15 models of the 200 MH wheel excavator exist, at an average sale value of €295000 at 6 years of age. Want more detailed specifications? Download the latest Atlas 200 MH specs data sheet on LECTURA Specs today!

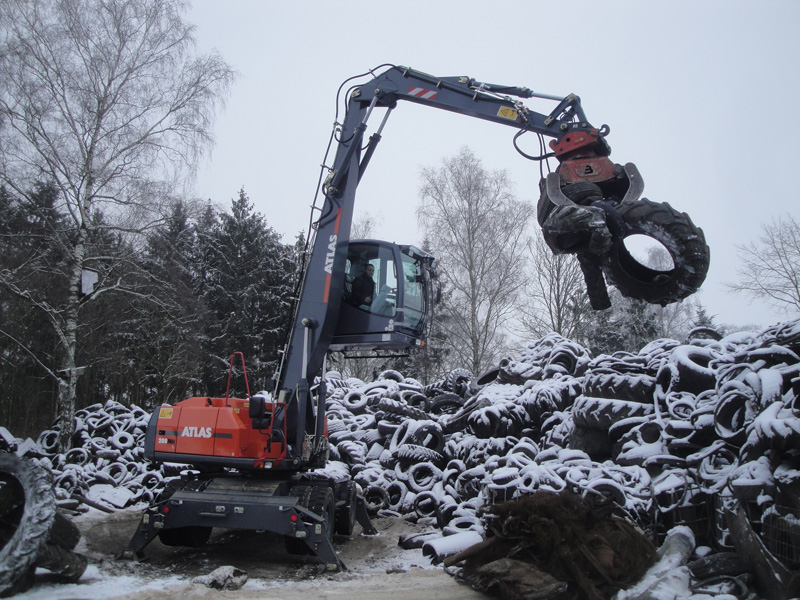

Wheel Excavators Atlas 200 MH
Wheel Excavators Atlas 200 MH
Wheel Excavators Atlas 200 MH
Wheel Excavators Atlas 200 MH
Wheel Excavators Atlas 200 MH
Wheel Excavators Atlas 200 MH

Visit Atlas live at

Technical specs - 200 MH Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
8.49 m
Transport width
2.49 m
Transport height
3.08 m
Max. Reach horizontal
10.25 m
Dredging depth
3.25 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD2012 L06
Engine power
105 kW
Displacement
6.057 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 200 MH FAQ

When was the Atlas 200 MH wheel excavator manufactured?

The Atlas 200 MH wheel excavator was manufactured from 2010 to 2013.

How much does the Atlas 200 MH wheel excavator weigh?

The Atlas 200 MH wheel excavator weighs 18 tons.

What are the transport dimensions of the Atlas 200 MH wheel excavator?

The Atlas 200 MH has a transport length of 8.49 meters, a transport width of 2.49 meters, and a transport height of 3.08 meters.

What is the travel speed of the Atlas 200 MH wheel excavator?

The Atlas 200 MH wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Atlas 200 MH wheel excavator?

The Atlas 200 MH is equipped with standard tyres sized 10.00-20 and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Atlas 200 MH wheel excavator?

The Atlas 200 MH wheel excavator has a dredging depth of 3.25 meters, a maximum horizontal reach of 10.25 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Atlas 200 MH wheel excavator?

The Atlas 200 MH wheel excavator has a bucket capacity of 1 cubic meter.

How much is a Atlas 200 MH Wheel excavator (2010u20132013) worth?

The residual value of the Atlas 200 MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
