190 W Atlas Excavator Specs & Dimensions - (2019 - 2026)

Weight: 18.9t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport leng…

Weight: 18.9t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 8.88m

Check out detailed dimensions, specifications, information and technical data for Atlas 190 W excavator manufactured between 2019 - 2026. Get more in-depth insight with Atlas 190 W digger specifications. See information, like: Weight: 18.9t – Standard tyres: 10.00-20 – Bucket capacity: 1.3m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 8.88m and more.

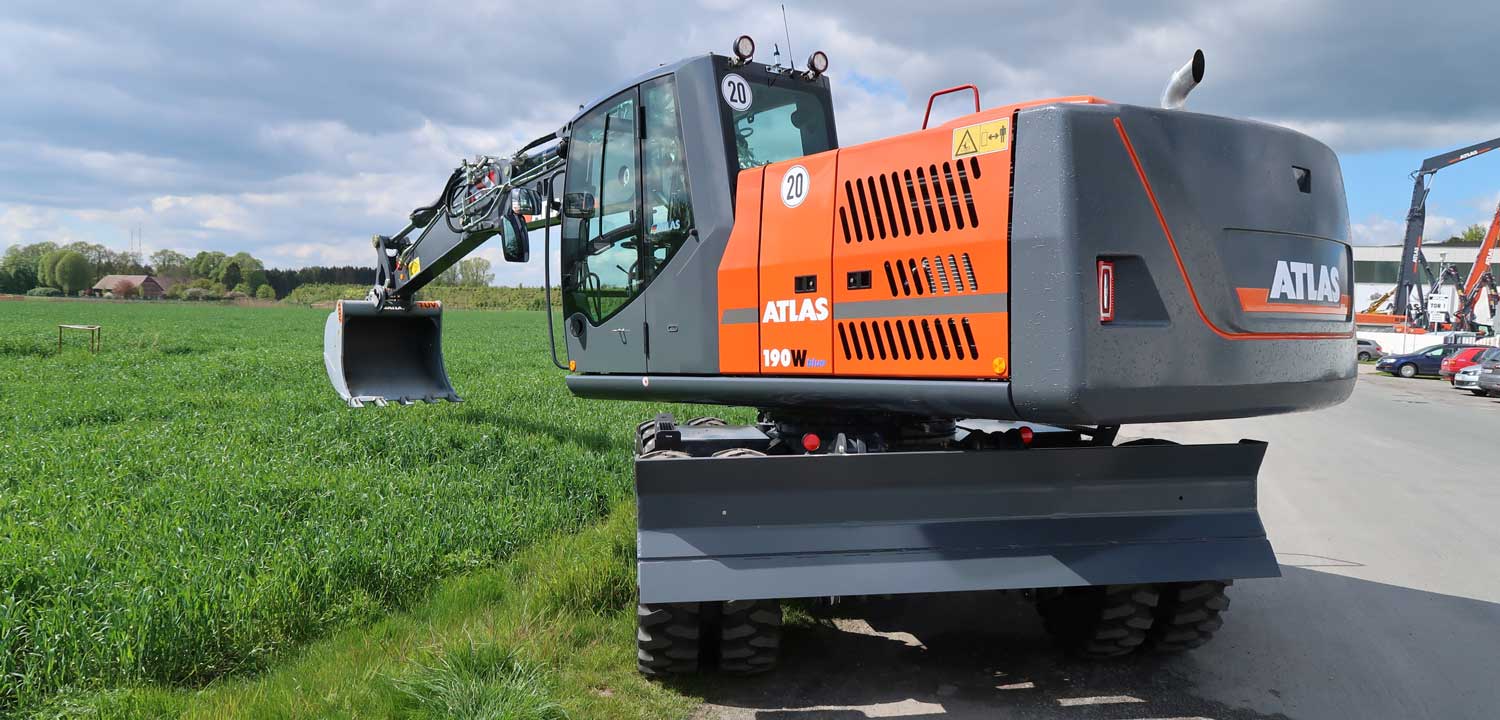

Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W
Wheel Excavators Atlas 190 W

Visit Atlas live at

Technical specs - 190 W Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.9 t
Standard tyres
10.00-20
Bucket capacity
1.3 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
8.88 m
Transport width
2.49 m
Transport height
3.1 m
Max. Reach horizontal
9.3 m
Dredging depth
5.75 m
Tear-out force
98 kN
Bucket width
1.1 m
Travel speed
20 km/h
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 190 W FAQ

When was the Atlas 190 W wheel excavator manufactured?

The Atlas 190 W wheel excavator was first produced in 2019.

How much does the Atlas 190 W wheel excavator weigh?

The Atlas 190 W wheel excavator weighs 18.9 tons.

What are the transport dimensions of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has a transport length of 8.88 meters, a transport width of 2.49 meters, and a transport height of 3.1 meters.

What is the travel speed of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 190 W wheel excavator?

The fuel consumption range of the Atlas 190 W wheel excavator is 8 to 17 liters per hour.

What are the undercarriage specifications of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator is equipped with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 190 W wheel excavator?

The Atlas 190 W wheel excavator has a dredging depth of 5.75 meters, a maximum horizontal reach of 9.3 meters, and features an adjustable boom.

What is the tear-out force of the Atlas 190 W wheel excavator?

The tear-out force of the Atlas 190 W wheel excavator is 98 kN.

What are the specifications of the primary work tool bucket on the Atlas 190 W wheel excavator?

The primary work tool bucket of the Atlas 190 W has a capacity of 1.3 cubic meters and a width of 1.1 meters.

How much is a Atlas 190 W Wheel excavator (2019u20132025) worth?

The residual value of the Atlas 190 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
