160 MH Atlas Excavator Specs & Dimensions - (2022 - 2026)

Weight: 16t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: …

Weight: 16t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 7.9m

Check out detailed dimensions, specifications, information and technical data for Atlas 160 MH excavator manufactured between 2022 - 2026. Get more in-depth insight with Atlas 160 MH digger specifications. See information, like: Weight: 16t – Standard tyres: 10.00-20 – Bucket capacity: 1m³ – Boom: MB – Outrigger stabilisers: 2/42/4-fold – Transport length: 7.9m and more.

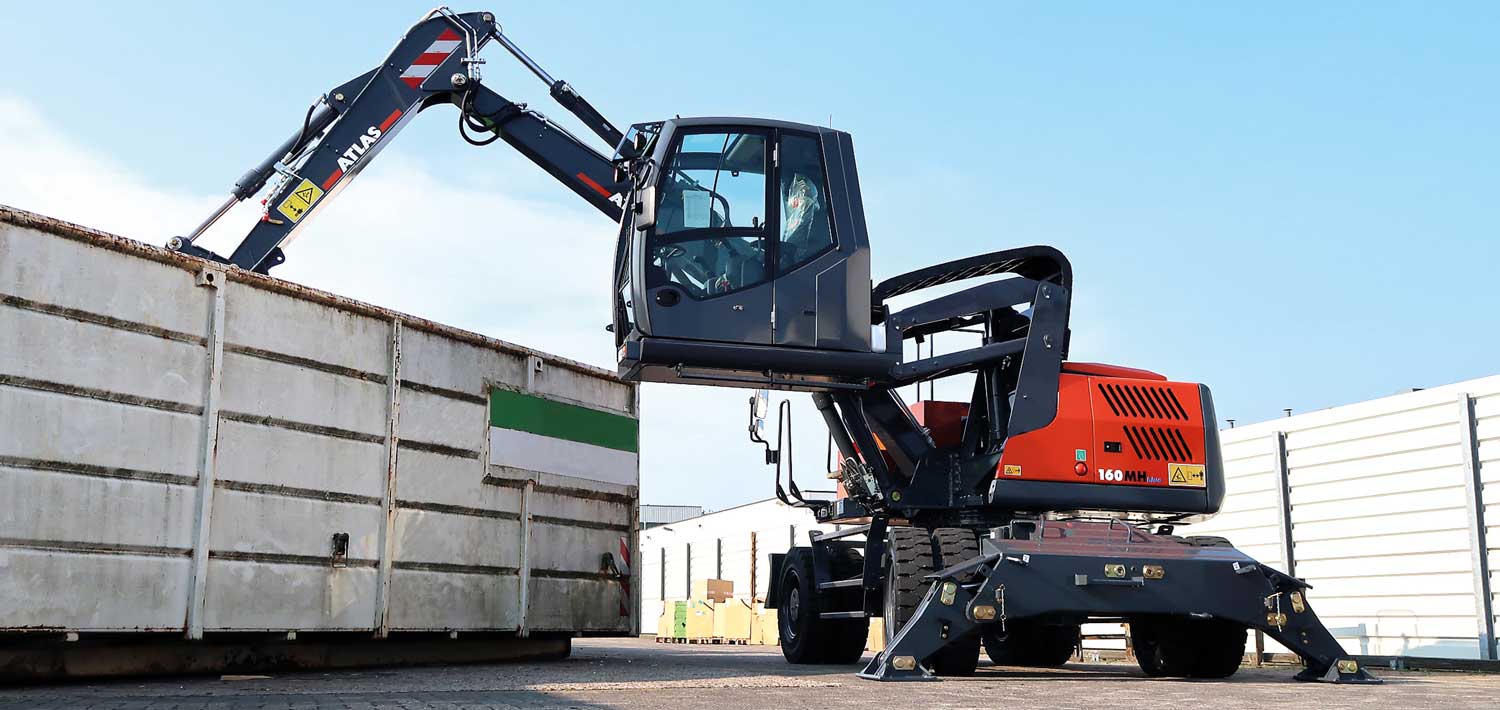

Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH
Wheel Excavators Atlas 160 MH

Visit Atlas live at

Technical specs - 160 MH Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Standard tyres
10.00-20
Bucket capacity
1 m³
Boom
MB
Outrigger stabilisers
2/4 2/4-fold
Transport length
7.9 m
Transport width
2.55 m
Transport height
3.15 m
Max. Reach horizontal
8.4 m
Dredging depth
4.9 m
Tear-out force
72 kN
Bucket width
1.1 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD4.1
Engine power
105 kW
Displacement
4.1 l
Max. torque
604 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Atlas 160 MH FAQ

When was the Atlas 160 MH manufactured?

The Atlas 160 MH was first produced in 2022.

How much does the Atlas 160 MH wheel excavator weigh?

The Atlas 160 MH wheel excavator weighs 16 tons.

What are the transport dimensions of the Atlas 160 MH wheel excavator?

The Atlas 160 MH has a transport length of 7.9 meters, a transport width of 2.55 meters, and a transport height of 3.15 meters.

What is the travel speed of the Atlas 160 MH wheel excavator?

The Atlas 160 MH wheel excavator has a travel speed of 20 km/h.

What is the fuel consumption range of the Atlas 160 MH wheel excavator?

The fuel consumption range of the Atlas 160 MH wheel excavator is between 7 and 13 liters per hour.

What are the undercarriage specifications of the Atlas 160 MH wheel excavator?

The Atlas 160 MH wheel excavator is equipped with 10.00-20 standard tyres and has 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Atlas 160 MH wheel excavator?

The Atlas 160 MH wheel excavator has a dredging depth of 4.9 meters, a maximum horizontal reach of 8.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Atlas 160 MH wheel excavator?

The Atlas 160 MH wheel excavator has a tear-out force of 72 kN.

What are the bucket specifications of the Atlas 160 MH wheel excavator?

The Atlas 160 MH wheel excavator has a bucket capacity of 1 cubic meter and a bucket width of 1.1 meters.

How much is a Atlas 160 MH Wheel excavator (2022u20132025) worth?

The residual value of the Atlas 160 MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
