ZM110 Zeppelin Excavator Specs & Dimensions - (2018 - 2021)

Weight: 10.1t – Standard tyres: 8.25 - 20/14 PR – Bucket capacity: 0.62m³ – Transport length: 6.66m – Transport width: 2.45m – Tra…

Weight: 10.1t – Standard tyres: 8.25 - 20/14 PR – Bucket capacity: 0.62m³ – Transport length: 6.66m – Transport width: 2.45m – Transport height: 2.99m

Check out detailed dimensions, specifications, information and technical data for Zeppelin ZM110 excavator manufactured between 2018 - 2021. Get more in-depth insight with Zeppelin ZM110 digger specifications. See information, like: Weight: 10.1t – Standard tyres: 8.25 - 20/14 PR – Bucket capacity: 0.62m³ – Transport length: 6.66m – Transport width: 2.45m – Transport height: 2.99m and more.

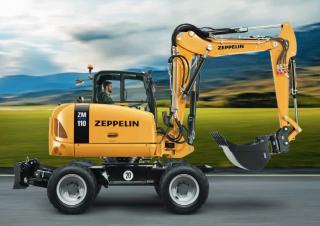

Wheel Excavators Zeppelin ZM110
Wheel Excavators Zeppelin ZM110
Wheel Excavators Zeppelin ZM110
Wheel Excavators Zeppelin ZM110

Visit Zeppelin live at

Technical specs - ZM110 Zeppelin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.1 t
Standard tyres
8.25 - 20/14 PR
Bucket capacity
0.62 m³
Transport length
6.66 m
Transport width
2.45 m
Transport height
2.99 m
Max. Reach horizontal
7.82 m
Dredging depth
3.95 m
Tear-out force
54.1 kN
Travel speed
20 km/h
Model series
ZM
Engine manuf.
Perkins
Engine type
854E-E34TA
Engine power
55 kW
Displacement
3.387 l
No. of cylinders
4
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Zeppelin ZM110 FAQ

When was the Zeppelin ZM110 manufactured?

The Zeppelin ZM110 was manufactured from 2018 to 2021.

How much does the Zeppelin ZM110 wheel excavator weigh?

The Zeppelin ZM110 wheel excavator weighs 10.1 tons.

What are the transport dimensions of the Zeppelin ZM110 wheel excavator?

The Zeppelin ZM110 has a transport length of 6.66 meters, a transport width of 2.45 meters, and a transport height of 2.99 meters.

What is the travel speed of the Zeppelin ZM110 wheel excavator?

The Zeppelin ZM110 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Zeppelin ZM110 wheel excavator?

The Zeppelin ZM110 is equipped with standard tyres sized 8.25 - 20/14 PR.

What are the excavation performance specifications of the Zeppelin ZM110 wheel excavator?

The Zeppelin ZM110 has a dredging depth of 3.95 meters and a maximum horizontal reach of 7.82 meters.

What is the tear-out force of the Zeppelin ZM110 wheel excavator?

The Zeppelin ZM110 wheel excavator has a tear-out force of 54.1 kN.

What is the bucket capacity of the primary work tool on the Zeppelin ZM110?

The primary work tool of the Zeppelin ZM110 has a bucket capacity of 0.62 cubic meters.

How much is a Zeppelin ZM110 Wheel excavator (2018u20132021) worth?

The residual value of the Zeppelin ZM110 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
