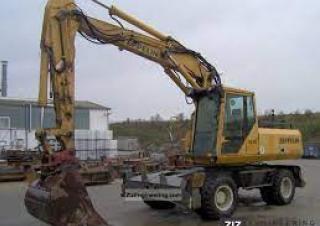

ZM 19 C Zeppelin Excavator Specs & Dimensions - (1995 - 1997)

The ZM 19 C wheel excavator model is manufactured by Zeppelin. Find and download detailed specs and data sheets for this machine h…

The ZM 19 C wheel excavator model is manufactured by Zeppelin. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 106kW or 142 horse power, delivered from its powerful Caterpillar engine to the 19t ZM 19 C machine. The Zeppelin ZM 19 C can be grouped in the biggest machine segment in the wheel excavators category. The bucket capacity of ZM 19 C is 0,8m³, which is above average for this type of machine.

It does not include Quick hitch hydr., Aircondition and Quick hitch mech.. There are more detailed specifications and machine descriptions available in the original Zeppelin ZM 19 C specs data sheet.

The production stopped in 1997, where this ZM 19 C was available at a new list price between €161000 and €205000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Zeppelin currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Zeppelin ZM 19 C specs data sheet on LECTURA Specs today!

Wheel Excavators Zeppelin ZM 19 C

Visit Zeppelin live at

Technical specs - ZM 19 C Zeppelin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Standard tyres
11.00-20
Bucket capacity
0.8 m³
Model series
ZM
Engine manuf.
Caterpillar
Engine type
3056 DIT
Engine power
106 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Zeppelin ZM 19 C FAQ

When was the Zeppelin ZM 19 C manufactured?

The Zeppelin ZM 19 C was manufactured from 1995 to 1997.

How much does the Zeppelin ZM 19 C weigh?

The Zeppelin ZM 19 C weighs 19 tons.

What is the standard tyre size of the Zeppelin ZM 19 C wheel excavator?

The Zeppelin ZM 19 C wheel excavator is equipped with standard tyres sized 11.00-20.

What is the bucket capacity of the primary work tool on the Zeppelin ZM 19 C?

The primary work tool of the Zeppelin ZM 19 C has a bucket capacity of 0.8 cubic meters.

How much is a Zeppelin ZM 19 C Wheel excavator (1995u20131997) worth?

The residual value of the Zeppelin ZM 19 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
