B 95 2PB Yanmar Excavator Specs & Dimensions - (2016 - 2020)

Weight: 9.1t – Boom: VA – Transport length: 5.7m – Transport width: 2.46m – Transport height: 2.46m – Max. Reach horizontal: 5.41m…

Weight: 9.1t – Boom: VA – Transport length: 5.7m – Transport width: 2.46m – Transport height: 2.46m – Max. Reach horizontal: 5.41m

Check out detailed dimensions, specifications, information and technical data for Yanmar B 95 2PB excavator manufactured between 2016 - 2020. Get more in-depth insight with Yanmar B 95 2PB digger specifications. See information, like: Weight: 9.1t – Boom: VA – Transport length: 5.7m – Transport width: 2.46m – Transport height: 2.46m – Max. Reach horizontal: 5.41m and more.

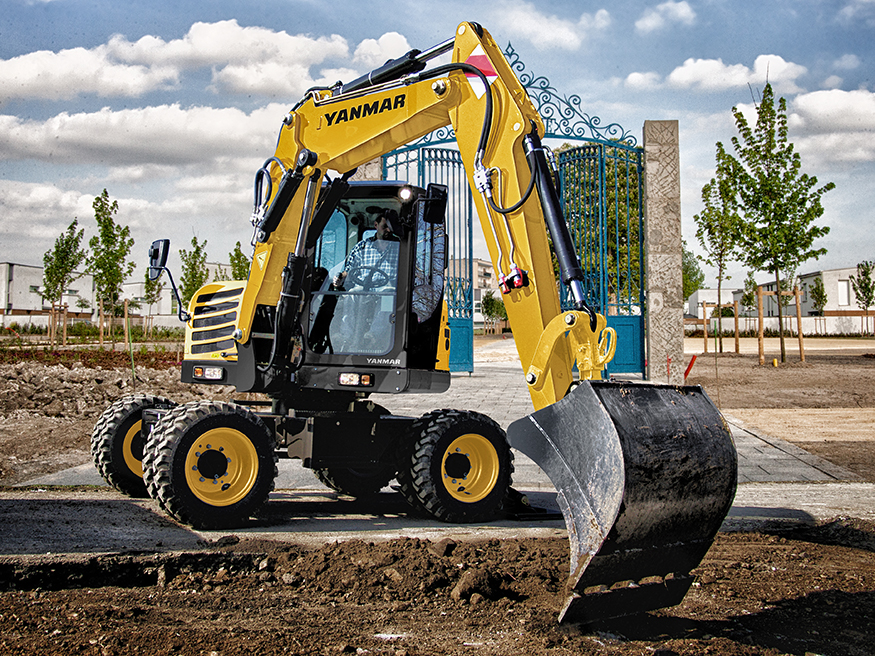

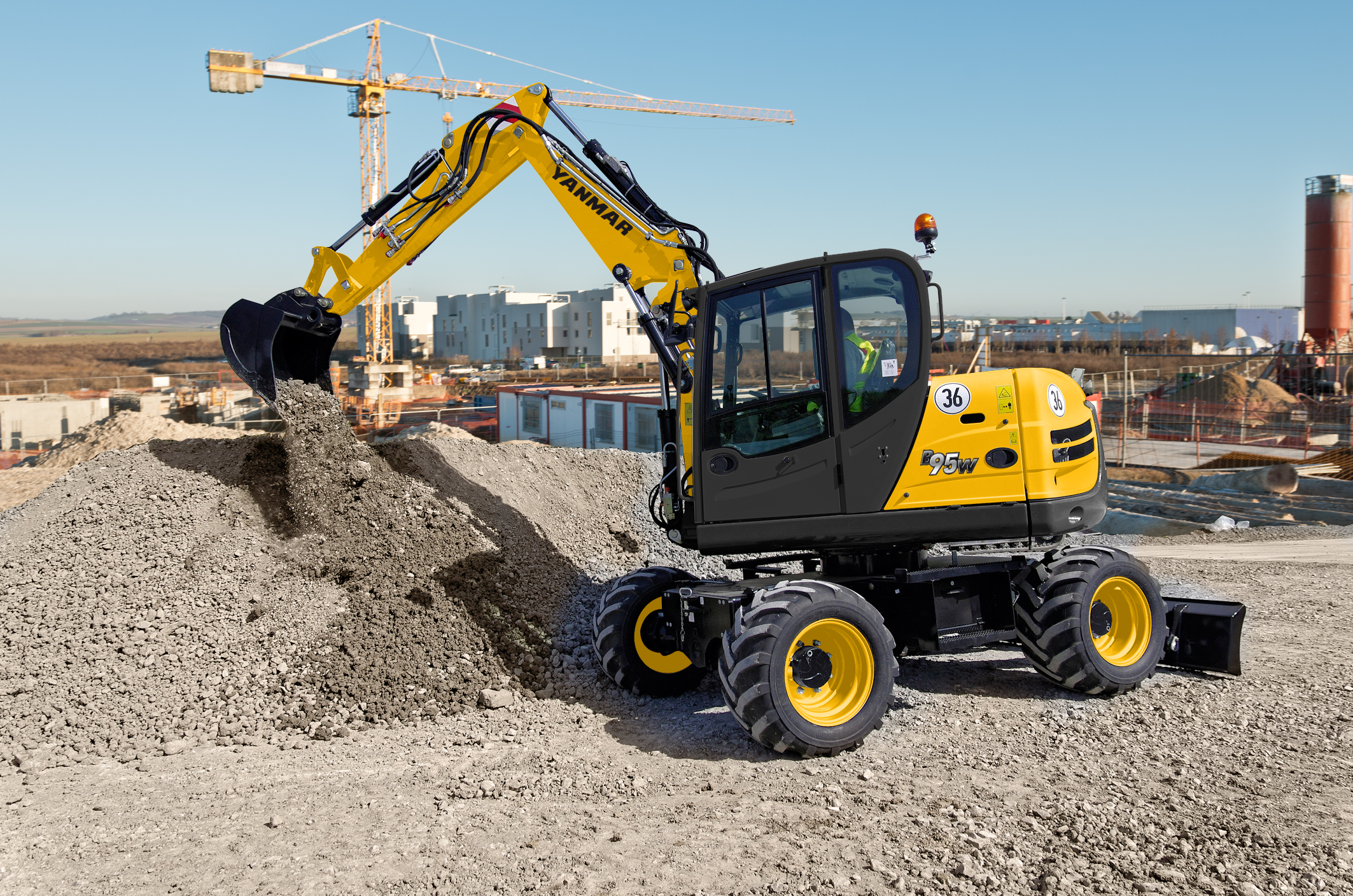

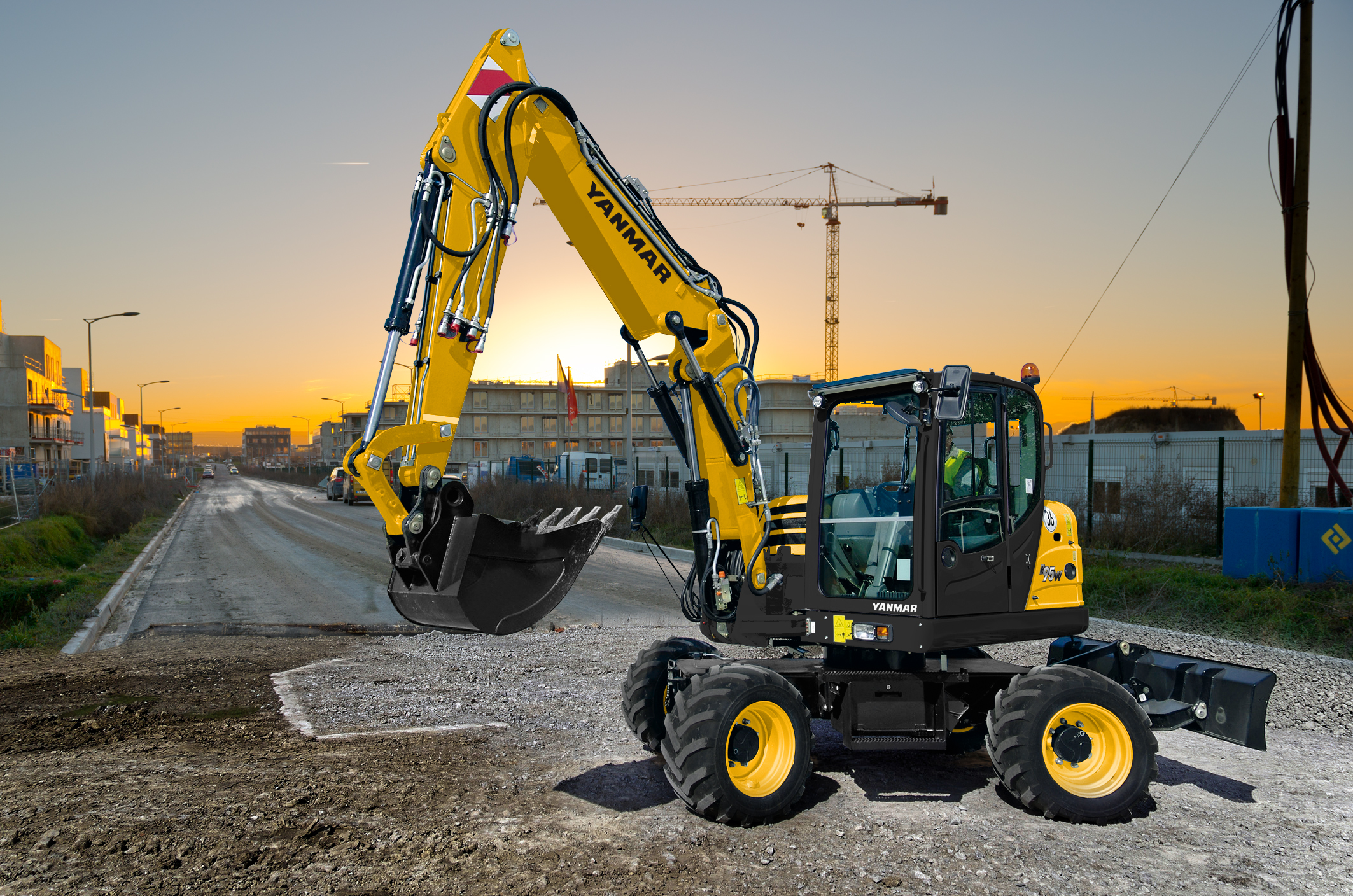

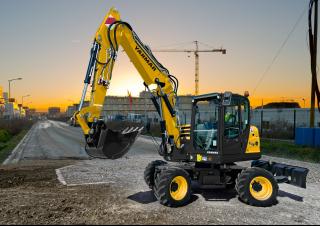

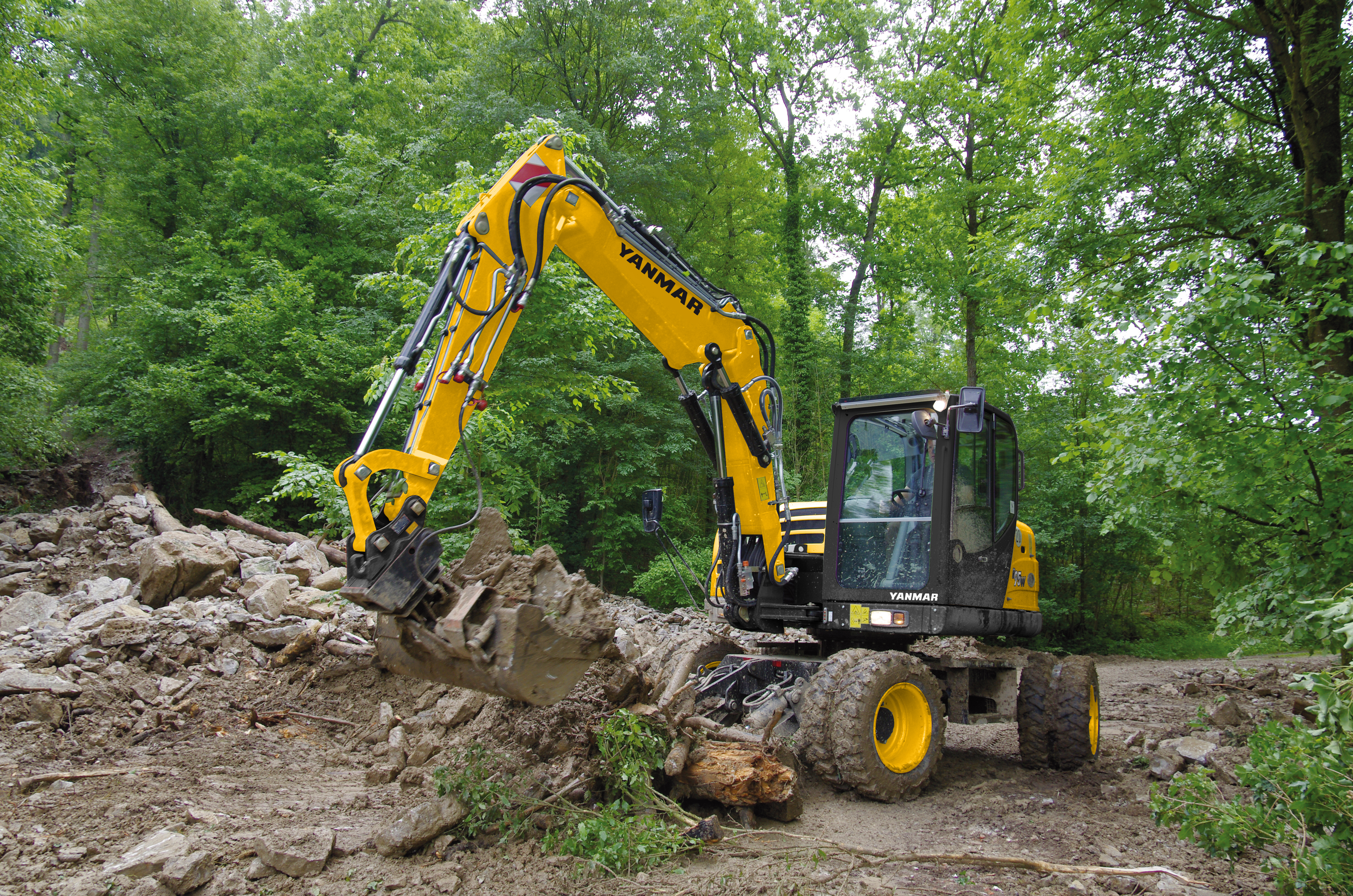

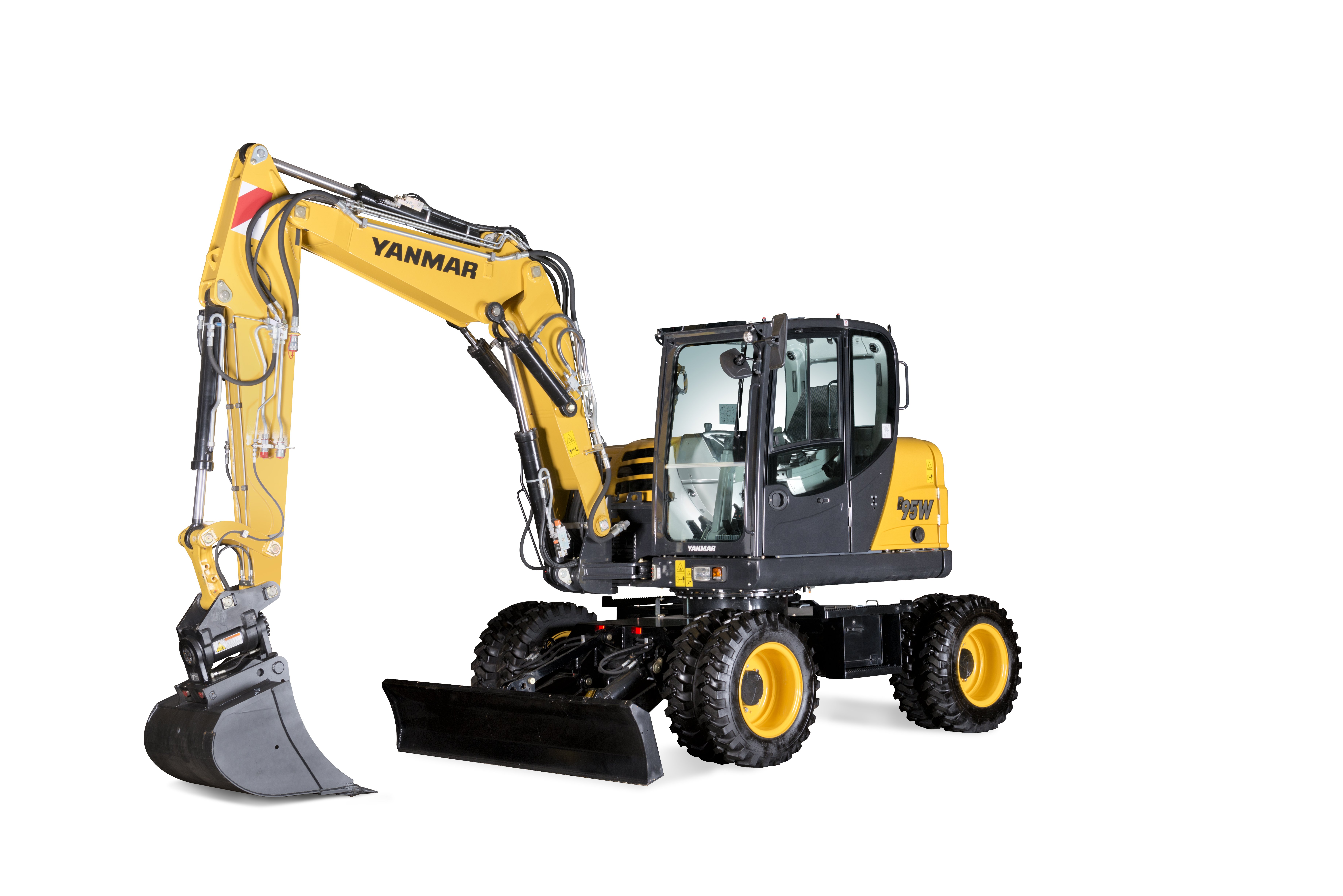

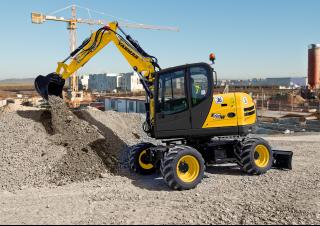

Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB
Wheel Excavators Yanmar B 95 2PB

Technical specs - B 95 2PB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Boom
VA
Transport length
5.7 m
Transport width
2.46 m
Transport height
2.46 m
Max. Reach horizontal
5.41 m
Dredging depth
4.1 m
Tear-out force
53.2 kN
Travel speed
20 km/h
Model series
B
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
No. of cylinders
4
Emission level
V/Tier 4 f

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B 95 2PB FAQ

When was the Yanmar B 95 2PB manufactured?

The Yanmar B 95 2PB was manufactured from 2016 to 2020.

How much does the Yanmar B 95 2PB wheel excavator weigh?

The Yanmar B 95 2PB wheel excavator weighs 9.1 tons.

What are the transport dimensions of the Yanmar B 95 2PB wheel excavator?

The Yanmar B 95 2PB has a transport length of 5.7 meters, a transport width of 2.46 meters, and a transport height of 2.46 meters.

What is the travel speed of the Yanmar B 95 2PB wheel excavator?

The Yanmar B 95 2PB has a travel speed of 20 km/h.

What are the excavation performance specifications of the Yanmar B 95 2PB wheel excavator?

The Yanmar B 95 2PB has a dredging depth of 4.1 meters, a maximum horizontal reach of 5.41 meters, and features an adjustable boom.

What is the tear-out force of the Yanmar B 95 2PB wheel excavator?

The Yanmar B 95 2PB wheel excavator has a tear-out force of 53.2 kN.

How much is a Yanmar B 95 2PB Wheel excavator (2016u20132020) worth?

The residual value of the Yanmar B 95 2PB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
