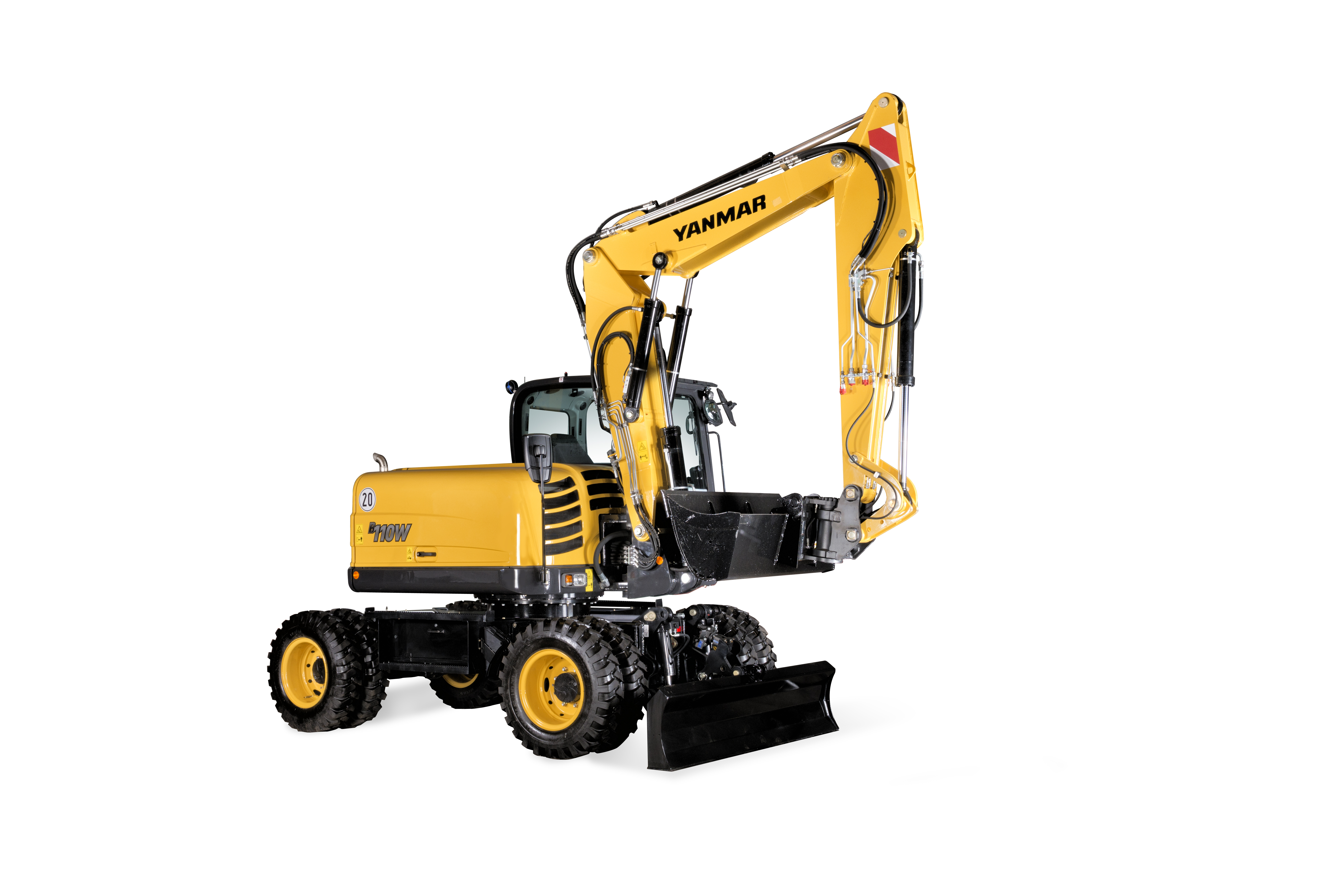

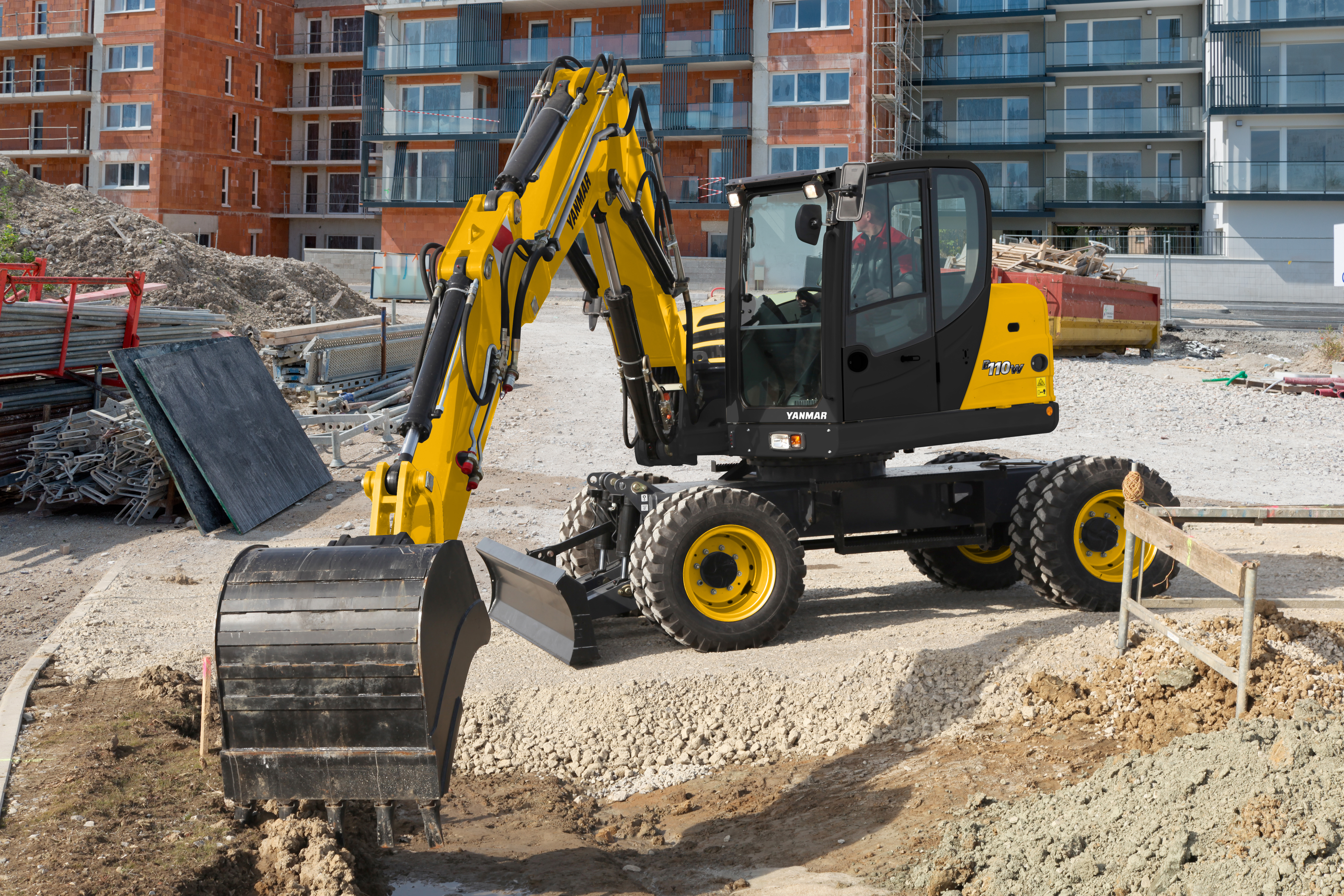

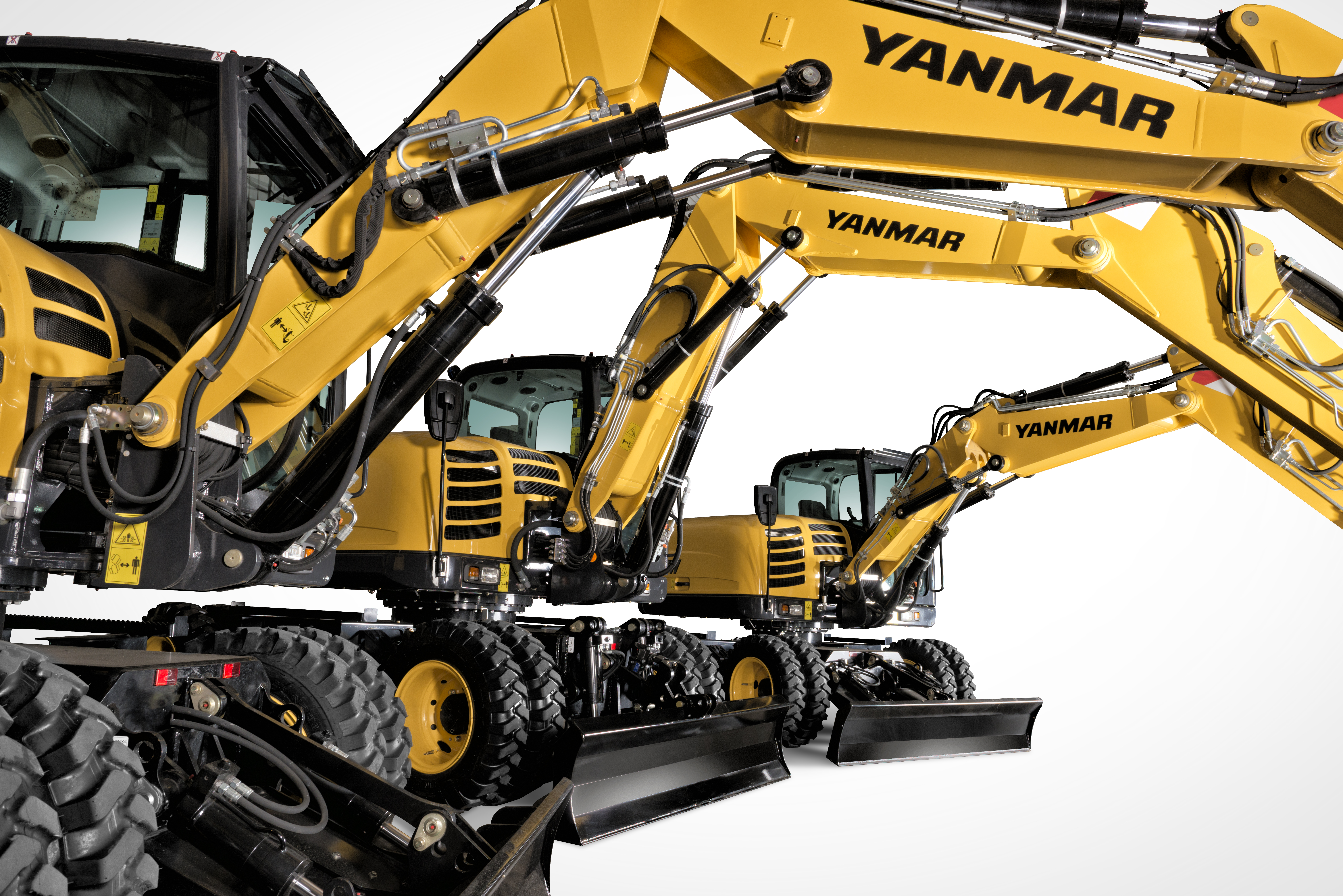

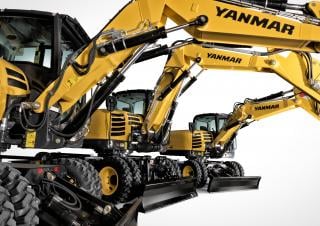

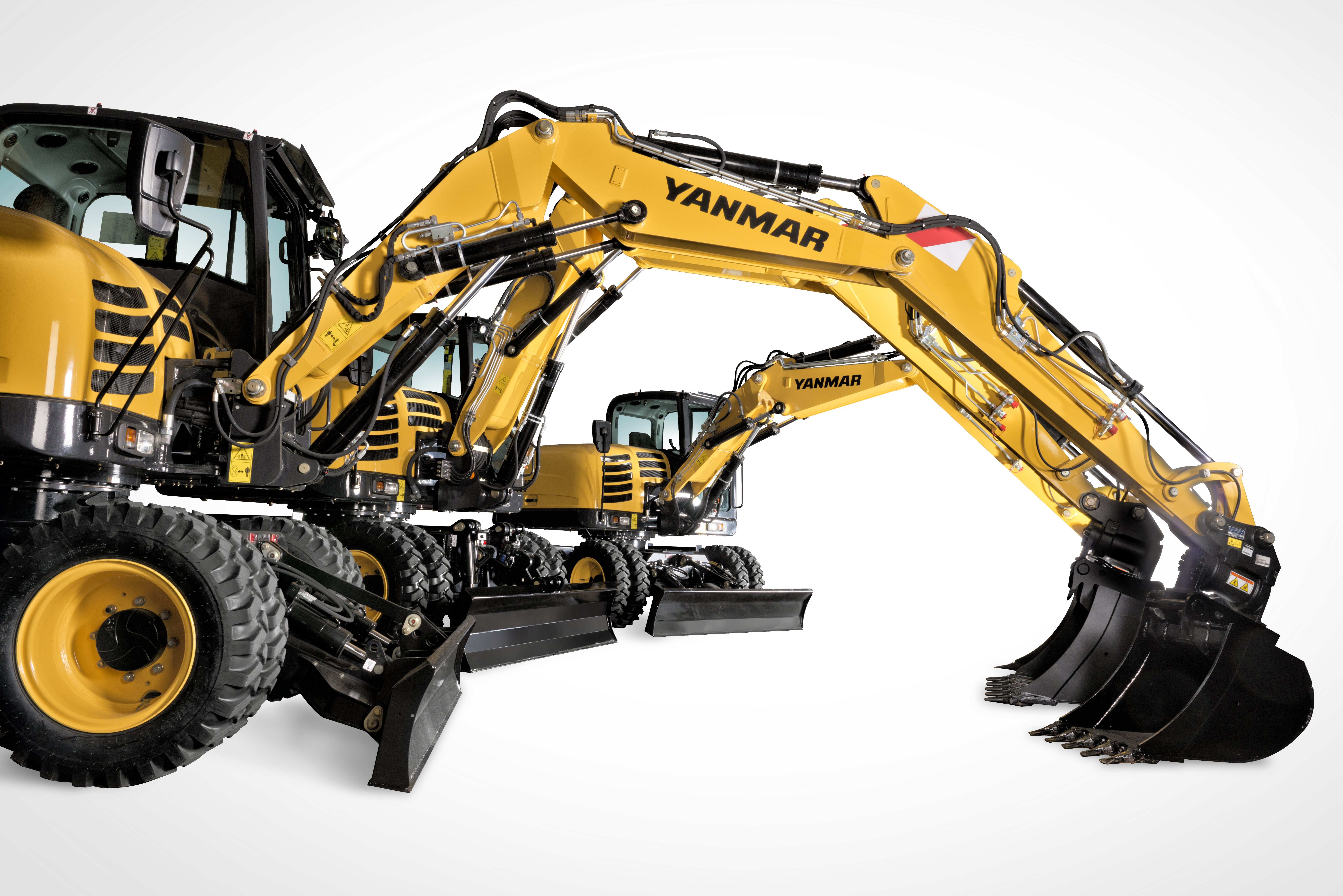

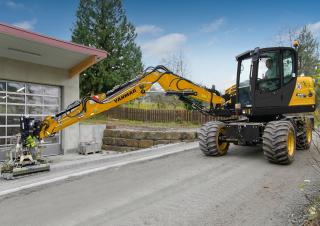

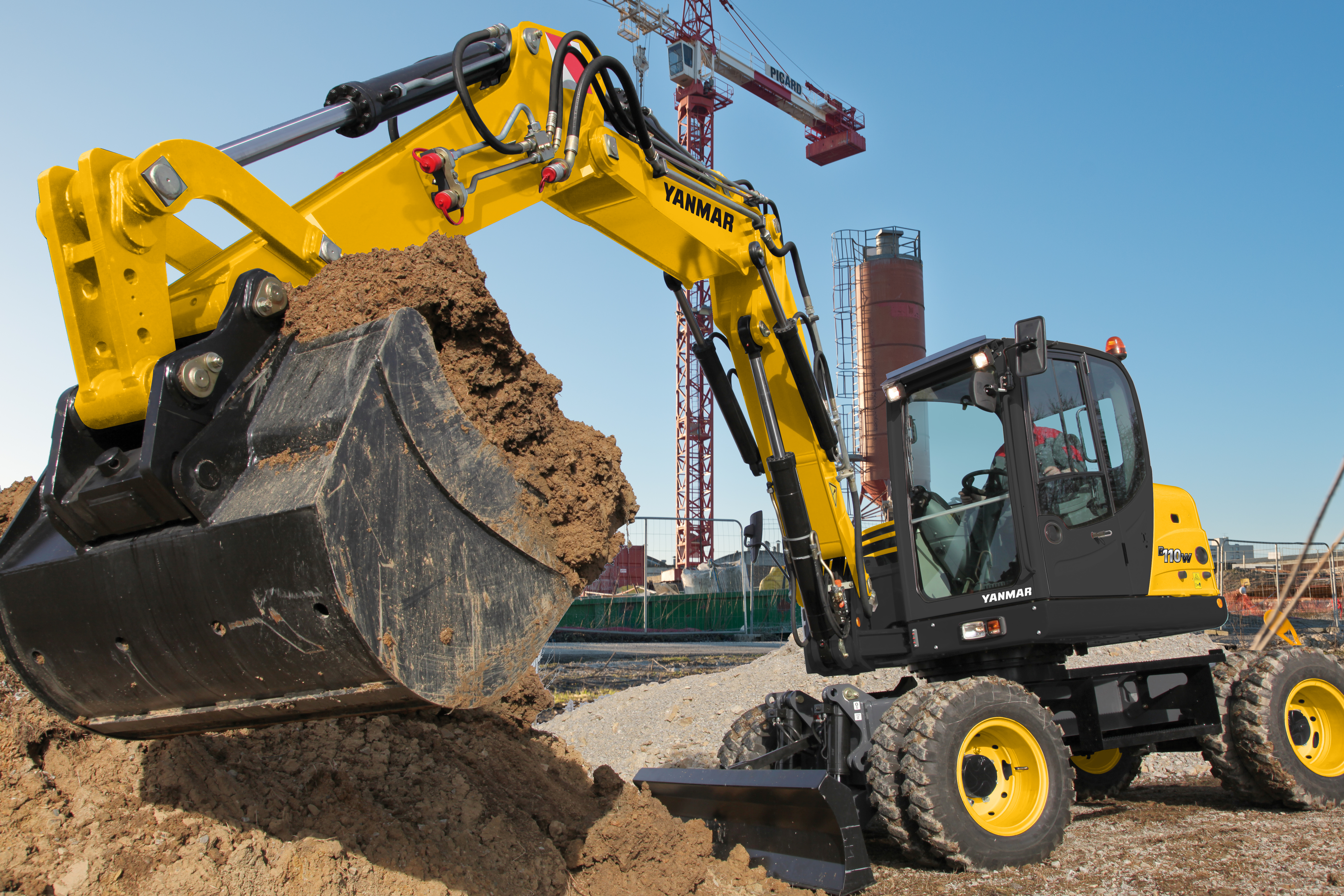

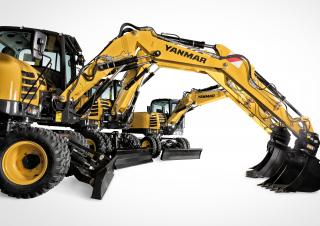

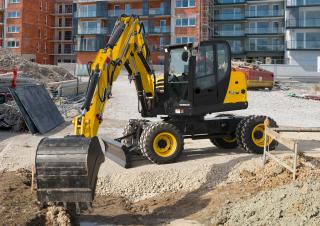

B 110 PB

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - B 110 PB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11 t

Boom: VA

Transport length: 7.39 m

Transport width: 2.5 m

Transport height: 2.9 m

Max. Reach horizontal: 6.06 m

Dredging depth: 4.44 m

Tear-out force: 72 kN

Travel speed: 20 km/h

Model series: B

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 85 kW

Displacement: 3.6 l

Revolutions at max torque: 2000 rpm

Max. torque: 400/1600 Nm

No. of cylinders: 4

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: Yes
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Track guidance: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar B 110 PB FAQ

When was the Yanmar B 110 PB manufactured?

The Yanmar B 110 PB was manufactured from 2016 to 2020.

How much does the Yanmar B 110 PB weigh?

The Yanmar B 110 PB weighs 11 tons.

What are the transport dimensions of the Yanmar B 110 PB wheel excavator?

The Yanmar B 110 PB has a transport length of 7.39 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What is the travel speed of the Yanmar B 110 PB wheel excavator?

The Yanmar B 110 PB has a travel speed of 20 km/h.

What are the excavation performance specifications of the Yanmar B 110 PB wheel excavator?

The Yanmar B 110 PB wheel excavator has a dredging depth of 4.44 meters, a maximum horizontal reach of 6.06 meters, and features an adjustable boom.

What is the tear-out force of the Yanmar B 110 PB wheel excavator?

The Yanmar B 110 PB wheel excavator has a tear-out force of 72 kN.

How much is a Yanmar B 110 PB Wheel excavator (2016u20132020) worth?

The residual value of the Yanmar B 110 PB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
