M 1500 Weimar Excavator Specs & Dimensions - (1996 - 1999)

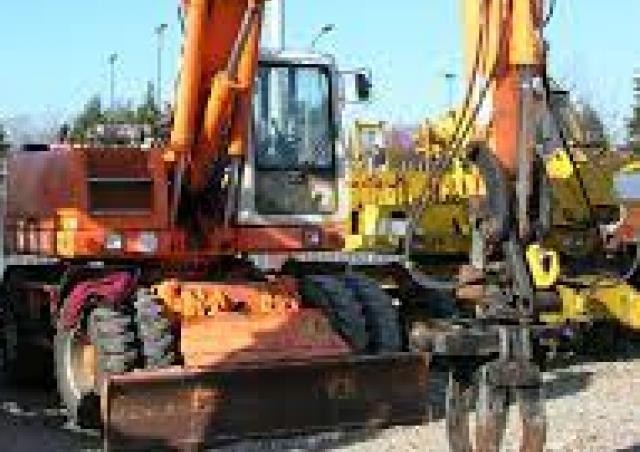

Manufactured by Weimar, this is the M 1500 wheel excavator. Find and download detailed specs and data sheets for this machine here…

Manufactured by Weimar, this is the M 1500 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Weimar M 1500 is a 15.1t machine with Deutz engine which powers this model with up to 88kW or 118 horse power. This Weimar wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The bucket capacity of M 1500 is 0,7m³, which is above average for this type of machine.

Quick hitch mech., Aircondition and Material Handling Excavator are not provided on this model as of 1999. There are more detailed specifications and machine descriptions available in the original Weimar M 1500 specs data sheet.

The production stopped in 1999, where this M 1500 was available at a new list price between €108000 and €138000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Weimar currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Weimar M 1500 specs data sheet on LECTURA Specs today!

Wheel Excavators Weimar M 1500

Technical specs - M 1500 Weimar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.1 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Engine manuf.
Deutz
Engine type
BF4M1013
Engine power
88 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Weimar M 1500 FAQ

When was the Weimar M 1500 manufactured?

The Weimar M 1500 was manufactured from 1996 to 1999.

How much does the Weimar M 1500 wheel excavator weigh?

The Weimar M 1500 wheel excavator weighs 15.1 tons.

What is the standard tyre size of the Weimar M 1500 wheel excavator?

The Weimar M 1500 wheel excavator has standard tyres sized 10.00-20.

What is the bucket capacity of the Weimar M 1500 wheel excavator?

The Weimar M 1500 wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Weimar M 1500 Wheel excavator (1996u20131999) worth?

The residual value of the Weimar M 1500 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
