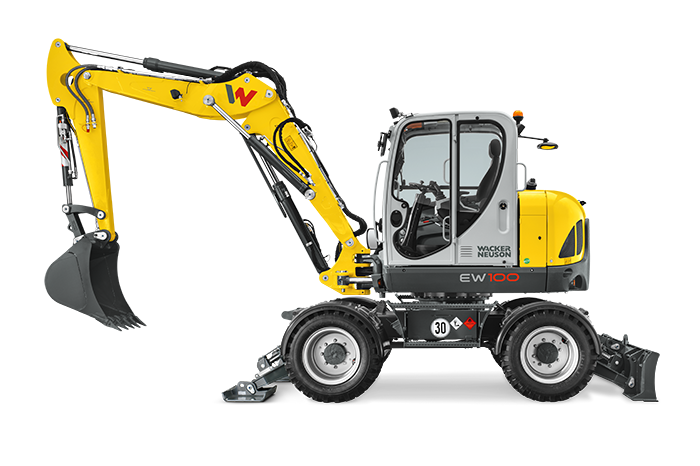

EW 100 Wacker Neuson Excavator Specs & Dimensions - (2014 - 2020)

Weight: 10.33t – Standard tyres: 8.25/ 20-14 PR – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 6.66m – Transp…

Weight: 10.33t – Standard tyres: 8.25/ 20-14 PR – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 6.66m – Transport width: 2.45m

Check out detailed dimensions, specifications, information and technical data for Wacker Neuson EW 100 excavator manufactured between 2014 - 2020. Get more in-depth insight with Wacker Neuson EW 100 digger specifications. See information, like: Weight: 10.33t – Standard tyres: 8.25/ 20-14 PR – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 6.66m – Transport width: 2.45m and more.

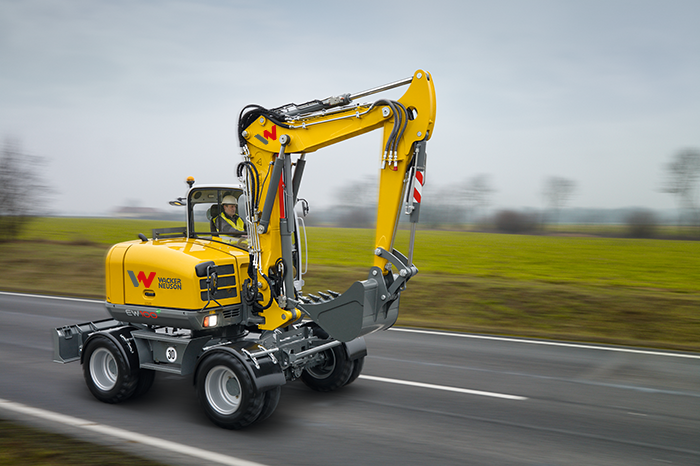

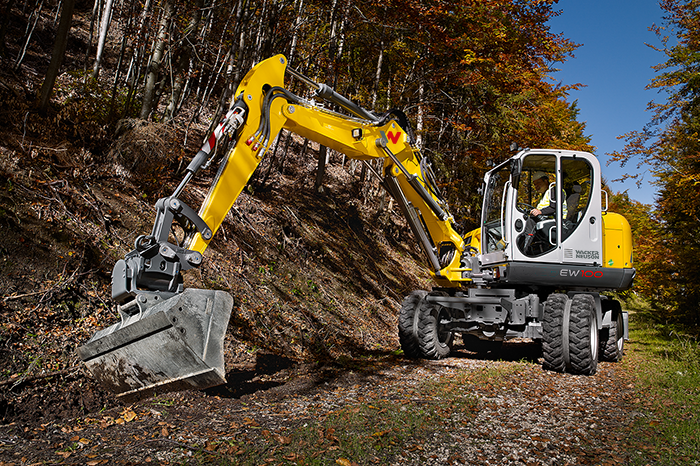

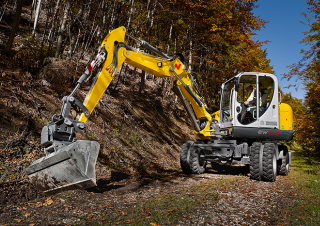

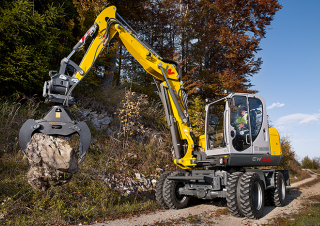

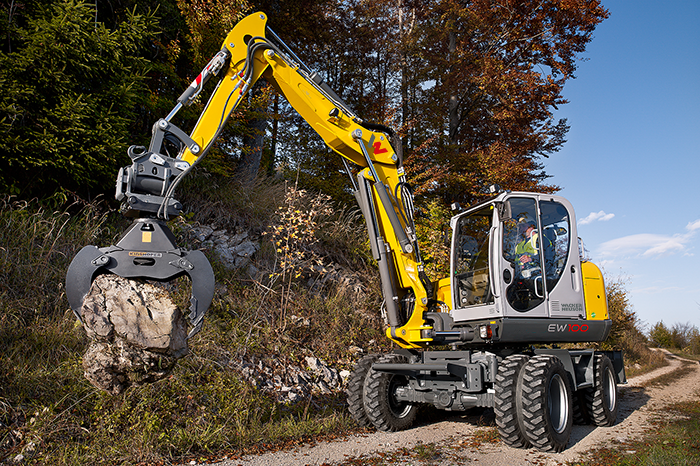

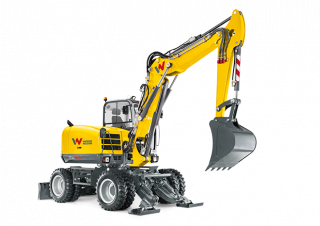

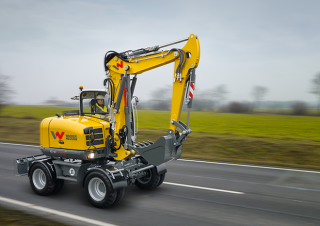

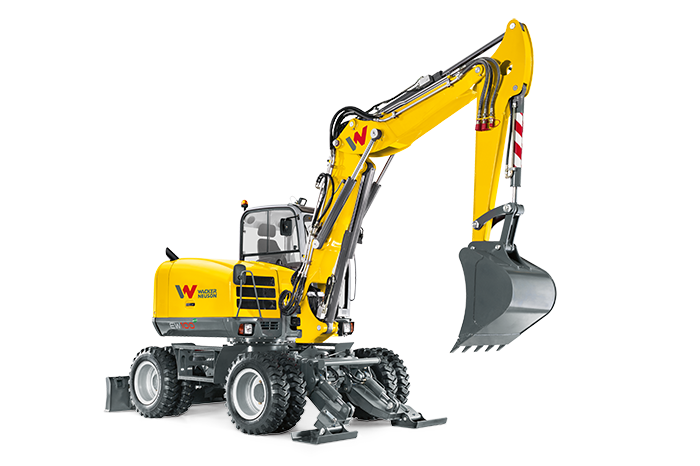

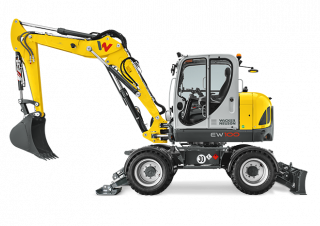

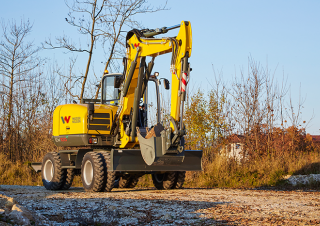

Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100

Visit Wacker Neuson live at

Technical specs - EW 100 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.33 t
Standard tyres
8.25/ 20-14 PR
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
6.66 m
Transport width
2.45 m
Transport height
2.99 m
Max. Reach horizontal
7.6 m
Dredging depth
3.94 m
Tear-out force
40.34 kN
Travel speed
20 km/h
Model series
EW
Engine manuf.
Perkins
Engine type
854E-E34TAWF
Engine power
55 kW
Displacement
3.3 l
Revolutions at max torque
1700 rpm
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson EW 100 FAQ

When was the Wacker Neuson EW 100 manufactured?

The Wacker Neuson EW 100 was manufactured from 2014 to 2020.

How much does the Wacker Neuson EW 100 weigh?

The Wacker Neuson EW 100 weighs 10.33 tons.

What are the transport dimensions of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 has a transport length of 6.66 meters, a transport width of 2.45 meters, and a transport height of 2.99 meters.

What is the travel speed of the Wacker Neuson EW 100 wheel excavator?

The Wacker Neuson EW 100 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 is equipped with standard tyres sized 8.25/ 20-14 PR and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 has a dredging depth of 3.94 meters, a maximum horizontal reach of 7.6 meters, and features an adjustable boom.

What is the tear-out force of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 has a tear-out force of 40.34 kN.

How much is a Wacker Neuson EW 100 Wheel excavator (2014u20132020) worth?

The residual value of the Wacker Neuson EW 100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
