6503 Wacker Neuson Excavator Specs & Dimensions - (2015 - 2016)

Manufactured by Wacker-Neuson, this is the 6503 wheel excavator. Find and download detailed specs and data sheets for this machine…

Manufactured by Wacker-Neuson, this is the 6503 wheel excavator. Find and download detailed specs and data sheets for this machine here.

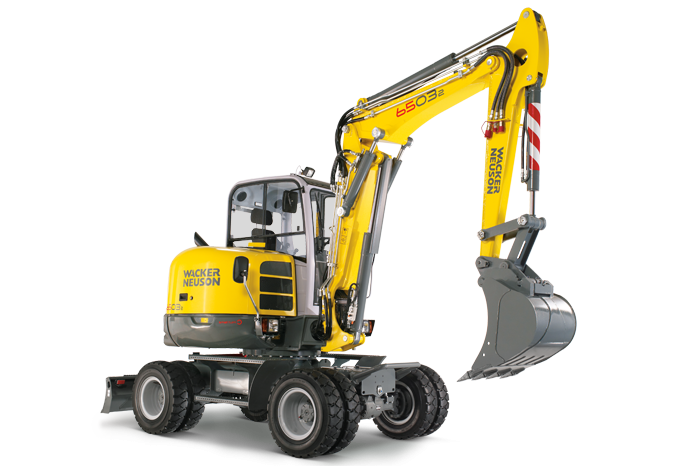

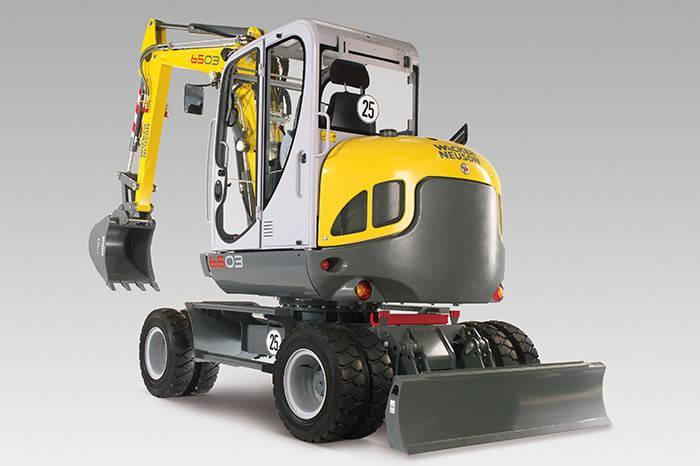

The Wacker-Neuson 6503 is a 7.005t machine with Yanmar engine which powers this model with up to 43kW or 57 horse power. This Wacker-Neuson wheel excavator belongs to the smallest machine segment in the wheel excavators category. The 6503’s size is 1.92m x 5.88m x 2.875m.

Since 2015, this model has included Blade, Overload alert and Quick hitch mech.. It does not include Track guidance, Cabin adjustment and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Wacker-Neuson 6503 specs data sheet.

The production stopped in 2016, where this 6503 was available at a new list price between €91000 and €116000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Wacker-Neuson models of this type on LECTURA Specs are the EW 100 and EW 65, and 2 other wheel excavators, which currently range from 7t up to 9.9t are also available. Want more detailed specifications? Download the latest Wacker-Neuson 6503 specs data sheet on LECTURA Specs today!

Visit Wacker Neuson live at

6503

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 6503 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 300-15

Boom: VA

Transport length: 5.88 m

Transport width: 1.92 m

Transport height: 2.87 m

Engine manuf.: Yanmar

Engine type: 4TNV98

Engine power: 43 kW

Displacement: 3.3 l

Revolutions at max torque: 2100 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Wacker Neuson 6503 FAQ

When was the Wacker Neuson 6503 manufactured?

The Wacker Neuson 6503 was manufactured from 2015 to 2016.

How much does the Wacker Neuson 6503 weigh?

The Wacker Neuson 6503 weighs 7 tons.

What are the transport dimensions of the Wacker Neuson 6503 wheel excavator?

The Wacker Neuson 6503 has a transport length of 5.88 meters, a transport width of 1.92 meters, and a transport height of 2.87 meters.

What are the undercarriage tyre specifications of the Wacker Neuson 6503 wheel excavator?

The Wacker Neuson 6503 is equipped with standard tyres sized 300-15.

What type of boom does the Wacker Neuson 6503 have?

The Wacker Neuson 6503 has an adjustable boom.

How much is a Wacker Neuson 6503 Wheel excavator (2015u20132016) worth?

The residual value of the Wacker Neuson 6503 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
