EWR150 Volvo Excavator Specs & Dimensions - (2025 - 2026)

Weight: 16.7t – Bucket capacity: 0.73m³ – Boom: MB – Transport length: 8.05m – Transport width: 2.55m – Transport height: 3.15m…

Weight: 16.7t – Bucket capacity: 0.73m³ – Boom: MB – Transport length: 8.05m – Transport width: 2.55m – Transport height: 3.15m

Check out detailed dimensions, specifications, information and technical data for Volvo EWR150 excavator manufactured between 2025 - 2026. Get more in-depth insight with Volvo EWR150 digger specifications. See information, like: Weight: 16.7t – Bucket capacity: 0.73m³ – Boom: MB – Transport length: 8.05m – Transport width: 2.55m – Transport height: 3.15m and more.

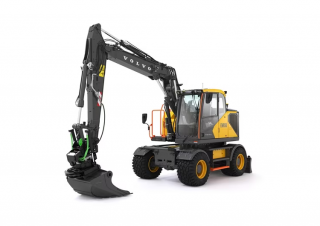

Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150
Wheel Excavators Volvo EWR150

Visit Volvo live at

Technical specs - EWR150 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.7 t
Bucket capacity
0.73 m³
Boom
MB
Transport length
8.05 m
Transport width
2.55 m
Transport height
3.15 m
Max. Reach horizontal
8.97 m
Dredging depth
5.43 m
Tear-out force
108.5 kN
Dipper length
2.6 m
Turning radius inside
6.4 m
Travel speed
35 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D4J
Engine power
112 kW
Displacement
4.04 l
Revolutions at max torque
2000 rpm
Max. torque
618/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm
Emission level
V

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
