EW200B Volvo Excavator Specs & Dimensions - (2004 - 2005)

Weight: 19.8t – Standard tyres: 10.00–20 / 18R-19.5 – Bucket capacity: 1.1m³ – Bucket capacity min.: 0.42m³ – Bucket capacity max.…

Weight: 19.8t – Standard tyres: 10.00–20 / 18R-19.5 – Bucket capacity: 1.1m³ – Bucket capacity min.: 0.42m³ – Bucket capacity max.: 1.1m³ – Outrigger stabilisers: 22/4-fold

Check out detailed dimensions, specifications, information and technical data for Volvo EW200B excavator manufactured between 2004 - 2005. Get more in-depth insight with Volvo EW200B digger specifications. See information, like: Weight: 19.8t – Standard tyres: 10.00–20 / 18R-19.5 – Bucket capacity: 1.1m³ – Bucket capacity min.: 0.42m³ – Bucket capacity max.: 1.1m³ – Outrigger stabilisers: 22/4-fold and more.

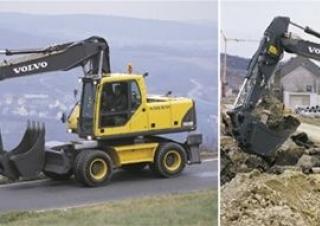

Wheel Excavators Volvo EW200B

Visit Volvo live at

Technical specs - EW200B Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.8 t
Standard tyres
10.00–20 / 18R-19.5
Bucket capacity
1.1 m³
Bucket capacity min.
0.42 m³
Bucket capacity max.
1.1 m³
Outrigger stabilisers
2 2/4-fold
Transport length
8.81 m
Transport width
2.55 m
Transport height
4 m
Max. Reach horizontal
9.7 m
Dredging depth
6.4 m
Tear-out force
111.2 kN
Bucket width
2.55 m
Turning radius inside
7.3 m
Travel speed
35 km/h
Engine manuf.
Volvo
Engine type
D6D EFE2
Engine power
119 kW
Displacement
5.7 l
Revolutions at max torque
1450 rpm
Max. torque
663 Nm
No. of cylinders
6
Cylinder bore x stroke
98x126 mm

More technical details, like: boom, dipper length, turning radius outside, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW200B FAQ

When was the Volvo EW200B manufactured?

The Volvo EW200B was manufactured from 2004 to 2005.

How much does the Volvo EW200B wheel excavator weigh?

The Volvo EW200B wheel excavator weighs 19.8 tons.

What are the transport dimensions of the Volvo EW200B wheel excavator?

The Volvo EW200B has a transport length of 8.81 meters, a transport width of 2.55 meters, and a transport height of 4 meters.

What is the travel speed of the Volvo EW200B wheel excavator?

The Volvo EW200B wheel excavator has a travel speed of 35 km/h.

What are the undercarriage specifications of the Volvo EW200B wheel excavator?

The Volvo EW200B is equipped with standard tyres sized 10.00u001320 / 18R-19.5 and has 2 outrigger stabilisers.

What is the turning radius inside of the Volvo EW200B wheel excavator?

The Volvo EW200B has an inside turning radius of 7.3 meters.

What are the excavation performance specifications of the Volvo EW200B wheel excavator?

The Volvo EW200B wheel excavator has a dredging depth of 6.4 meters and a maximum horizontal reach of 9.7 meters.

What is the tear-out force of the Volvo EW200B wheel excavator?

The Volvo EW200B wheel excavator has a tear-out force of 111.2 kN.

What are the specifications of the primary work tool bucket on the Volvo EW200B wheel excavator?

The Volvo EW200B's primary work tool bucket has a capacity ranging from 0.42 to 1.1 cubic meters, with a standard capacity of 1.1 cubic meters and a width of 2.55 meters.

How much is a Volvo EW200B Wheel excavator (2004u20132005) worth?

The residual value of the Volvo EW200B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
