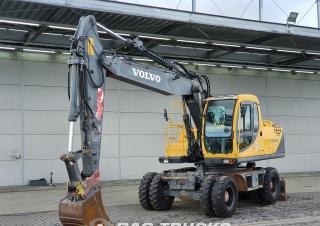

EW170 Volvo Excavator Specs & Dimensions - (2000 - 2003)

Weight: 18.3t – Standard tyres: 10.00-20-14PR – Bucket capacity: 1.82m³ – Boom: MB – Outrigger stabilisers: 42/4-fold – Transport …

Weight: 18.3t – Standard tyres: 10.00-20-14PR – Bucket capacity: 1.82m³ – Boom: MB – Outrigger stabilisers: 42/4-fold – Transport length: 9.16m

Check out detailed dimensions, specifications, information and technical data for Volvo EW170 excavator manufactured between 2000 - 2003. Get more in-depth insight with Volvo EW170 digger specifications. See information, like: Weight: 18.3t – Standard tyres: 10.00-20-14PR – Bucket capacity: 1.82m³ – Boom: MB – Outrigger stabilisers: 42/4-fold – Transport length: 9.16m and more.

Wheel Excavators Volvo EW170

Visit Volvo live at

Technical specs - EW170 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.3 t
Standard tyres
10.00-20-14PR
Bucket capacity
1.82 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.16 m
Transport width
2.495 m
Transport height
3.1 m
Max. Reach horizontal
8.96 m
Dredging depth
5.9 m
Tear-out force
20.9 kN
Bucket width
1.65 m
Turning radius outside
7.05 m
Travel speed
32 km/h
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
119 kW
Displacement
5.9 l
Revolutions at max torque
1900 rpm
Max. torque
618/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW170 FAQ

When was the Volvo EW170 manufactured?

The Volvo EW170 was manufactured from 2000 to 2003.

How much does the Volvo EW170 wheel excavator weigh?

The Volvo EW170 wheel excavator weighs 18.3 tons.

What are the transport dimensions of the Volvo EW170 wheel excavator?

The Volvo EW170 has a transport length of 9.16 meters, a transport width of 2.5 meters, and a transport height of 3.1 meters.

What is the travel speed of the Volvo EW170 wheel excavator?

The Volvo EW170 wheel excavator has a travel speed of 32 km/h.

What are the undercarriage specifications of the Volvo EW170 wheel excavator?

The Volvo EW170 wheel excavator is equipped with standard tyres sized 10.00-20-14PR and features 4 outrigger stabilisers.

What is the turning radius of the Volvo EW170 wheel excavator?

The Volvo EW170 wheel excavator has an outside turning radius of 7.05 meters.

What are the excavation performance specifications of the Volvo EW170 wheel excavator?

The Volvo EW170 has a dredging depth of 5.9 meters, a maximum horizontal reach of 8.96 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EW170 wheel excavator?

The Volvo EW170 wheel excavator has a tear-out force of 20.9 kN.

What are the specifications of the primary work tool bucket on the Volvo EW170?

The primary work tool bucket of the Volvo EW170 has a capacity of 1.82 cubic meters and a width of 1.65 meters.

How much is a Volvo EW170 Wheel excavator (2000u20132003) worth?

The residual value of the Volvo EW170 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo EW170 overview

Engine

Large capacity radiator

The large capacity radiator system provides excellent engine cooling efficiency. Radiator fins are designed to reduce plugging by insects or dust and are easily accessible if cleaning is required.


Undercarriage

Service brake system

Wet, multiple disc brakes, ensure good braking on muddy terrain. They are sealed to keep out dirt and other abrasive contaminants. Two completely independent brake systems are provided for the front and rear axle.


Undercarriage

The hydraulic dual brake system, with the negative actuation of the parking brake, improves safety. The steering system is fully hydraulic and the steering wheel has tilt and telescopic functions, which provide the operator with greater comfort. The front axle hydraulic locking system allows the axle to oscillate when travelling and provides stability by locking in position when working.


Booms and sticks

Volvo quick fit

The Volvo hydraulic quick fit makes it possible to change buckets or attachments quickly and easily without the operator even leaving the cab. This saves valuable time, increases productivity and makes the machine more versatile. To release the bucket or attachments, two switches are activated simultaneously. This also activates an alarm to warn the operator that the attachment is loose. A lifting hook is also mounted on the quick fit to allow the removal of the bucket or attachment when lifting heavy objects.
