EW160E Volvo Excavator Specs & Dimensions - (2019 - 2026)

Weight: 17.25t – Standard tyres: 10.00x20 – Bucket capacity: 0.76m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport leng…

Weight: 17.25t – Standard tyres: 10.00x20 – Bucket capacity: 0.76m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 8.24m

Check out detailed dimensions, specifications, information and technical data for Volvo EW160E excavator manufactured between 2019 - 2026. Get more in-depth insight with Volvo EW160E digger specifications. See information, like: Weight: 17.25t – Standard tyres: 10.00x20 – Bucket capacity: 0.76m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 8.24m and more.

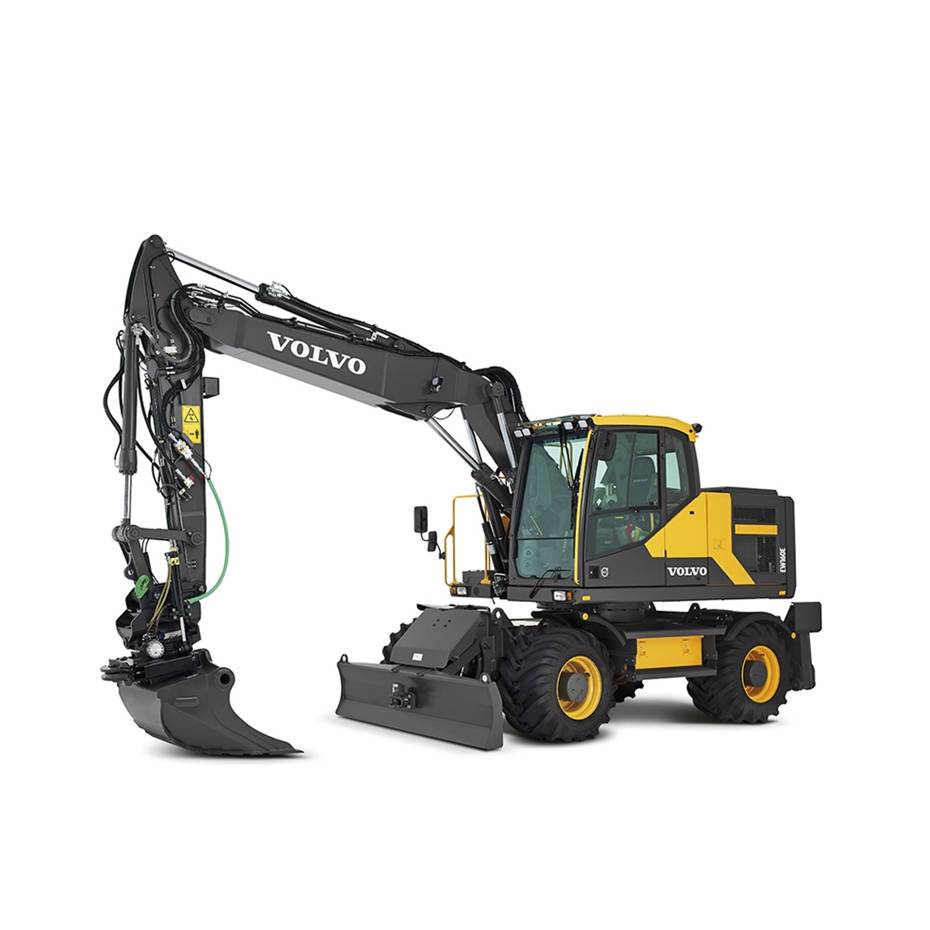

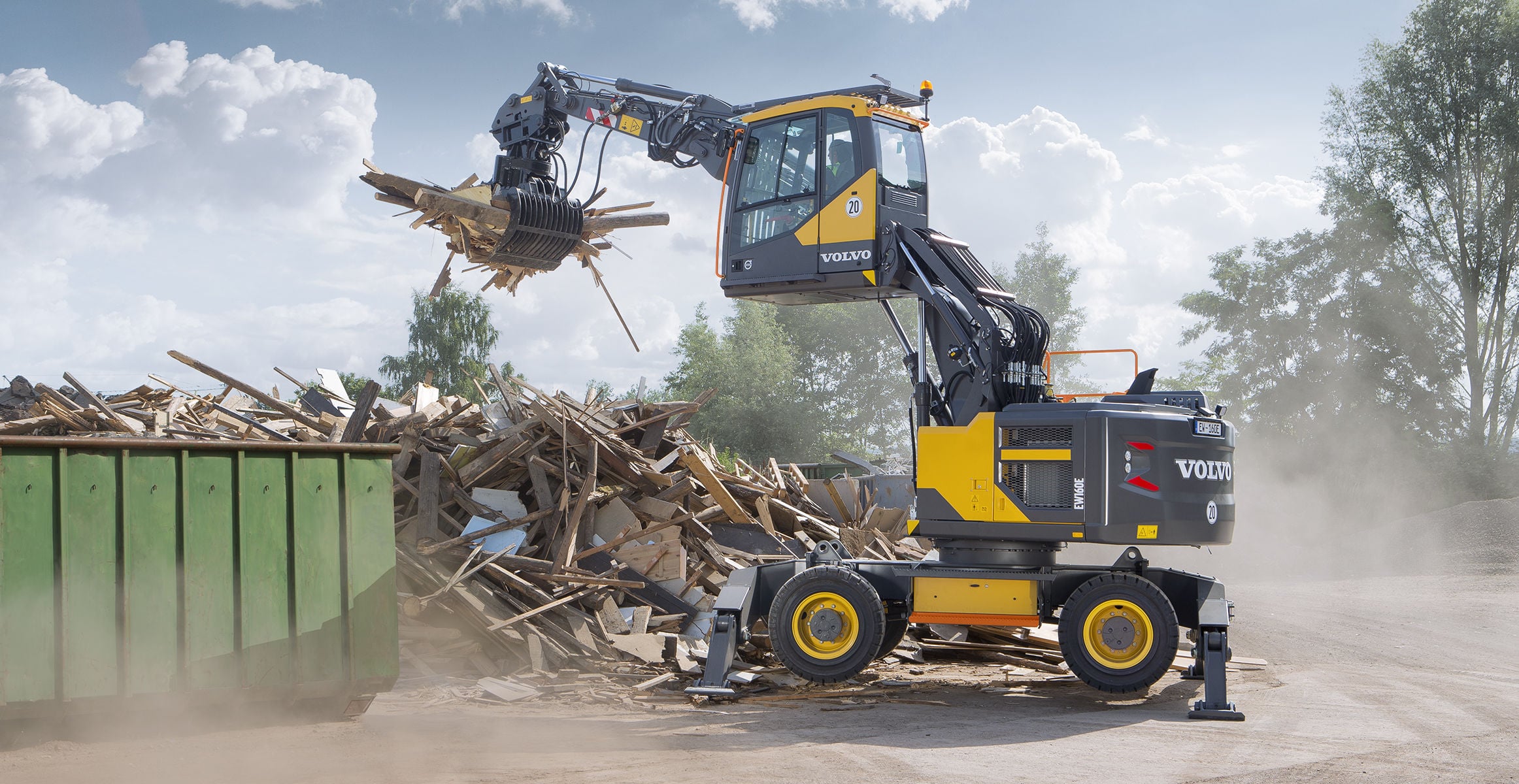

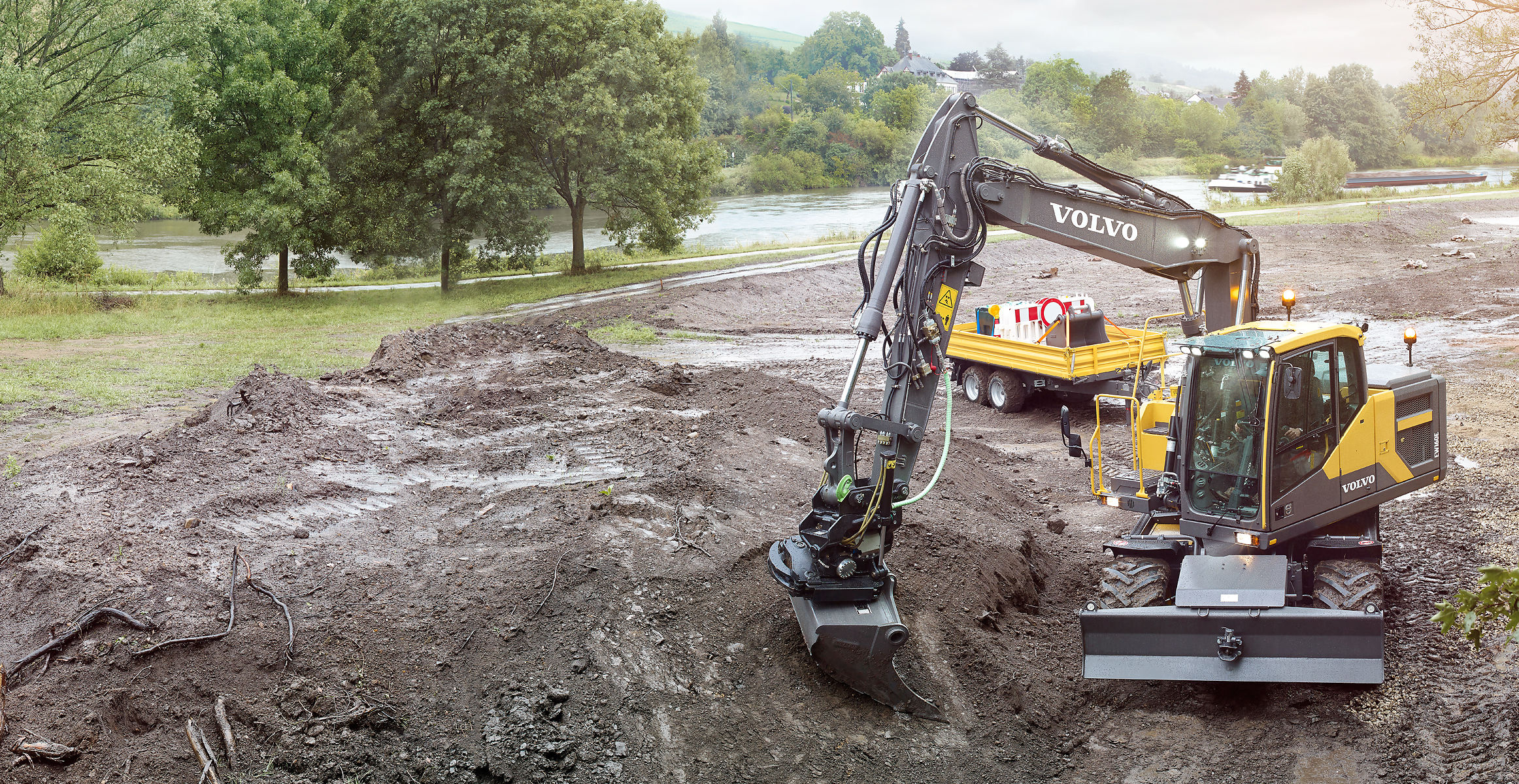

Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E
Wheel Excavators Volvo EW160E

Visit Volvo live at

Technical specs - EW160E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.25 t
Standard tyres
10.00x20
Bucket capacity
0.76 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
8.24 m
Transport width
2.54 m
Transport height
3.14 m
Max. Reach horizontal
8.6 m
Dredging depth
5.13 m
Tear-out force
126 kN
Travel speed
35 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D6J
Engine power
112 kW
Displacement
5.7 l
Revolutions at max torque
1900 rpm
Max. torque
716/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
98/126 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW160E FAQ

When was the Volvo EW160E manufactured?

The Volvo EW160E was first produced in 2019.

How much does the Volvo EW160E wheel excavator weigh?

The Volvo EW160E wheel excavator weighs 17.25 tons.

What are the transport dimensions of the Volvo EW160E wheel excavator?

The Volvo EW160E has a transport length of 8.24 meters, a width of 2.54 meters, and a height of 3.14 meters.

What is the travel speed of the Volvo EW160E wheel excavator?

The Volvo EW160E has a travel speed of 35 km/h.

What are the undercarriage specifications of the Volvo EW160E wheel excavator?

The Volvo EW160E is equipped with standard tyres sized 10.00x20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Volvo EW160E wheel excavator?

The Volvo EW160E has a dredging depth of 5.13 meters, a maximum horizontal reach of 8.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EW160E wheel excavator?

The Volvo EW160E wheel excavator has a tear-out force of 126 kN.

What is the bucket capacity of the Volvo EW160E wheel excavator?

The Volvo EW160E wheel excavator has a bucket capacity of 0.76 cubic meters.

How much is a Volvo EW160E Wheel excavator (2019u20132025) worth?

The residual value of the Volvo EW160E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
