EW160D Volvo Excavator Specs & Dimensions - (2012 - 2016)

The EW 160 D wheel excavator model is manufactured by Volvo. Find and download detailed specs and data sheets for this machine her…

The EW 160 D wheel excavator model is manufactured by Volvo. Find and download detailed specs and data sheets for this machine here.

The Volvo EW 160 D is a 17.2t machine with Volvo engine which powers this model with up to 115kW or 154 horse power. This Volvo wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.2m x 2.54m x 3.11m. The bucket capacity of EW 160 D is 0,76m³, which is above average for this type of machine.

Since 2012, this model has included Overload alert and Blade. It does not include Quick hitch hydr., Diesel particulate filter and Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Volvo EW 160 D specs data sheet. Specification sheet is available for a free download in Spanish, English, French, Italian and German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2016, where this EW 160 D was available at a new list price between €246000 and €313000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Volvo models of this type on LECTURA Specs are the EW 210 D, EW 140 D and EW 60 E, and 8 other wheel excavators, which currently range from 7.2t up to 22.2t are also available. Want more detailed specifications? Download the latest Volvo EW 160 D specs data sheet on LECTURA Specs today!

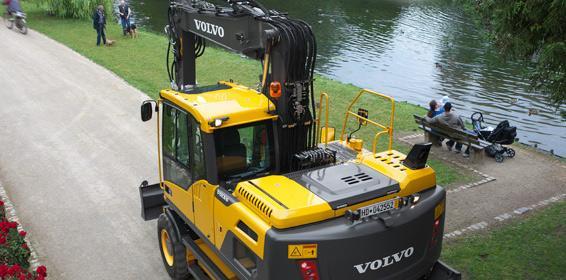

Wheel Excavators Volvo EW160D
Wheel Excavators Volvo EW160D
Wheel Excavators Volvo EW160D
Wheel Excavators Volvo EW160D
Wheel Excavators Volvo EW160D
Wheel Excavators Volvo EW160D

Visit Volvo live at

Technical specs - EW160D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.2 t
Standard tyres
10.00x20
Bucket capacity
0.76 m³
Transport length
8.2 m
Transport width
2.54 m
Transport height
3.11 m
Max. Reach horizontal
9.8 m
Dredging depth
6.2 m
Model series
EW
Engine manuf.
Volvo
Engine type
D 6 H
Engine power
115 kW
Displacement
6 l
Revolutions at max torque
1350 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW160D FAQ

When was the Volvo EW160D manufactured?

The Volvo EW160D was manufactured from 2012 to 2016.

How much does the Volvo EW160D wheel excavator weigh?

The Volvo EW160D wheel excavator weighs 17.2 tons.

What are the transport dimensions of the Volvo EW160D wheel excavator?

The Volvo EW160D has a transport length of 8.2 meters, a transport width of 2.54 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Volvo EW160D wheel excavator?

The Volvo EW160D wheel excavator is equipped with standard tyres sized 10.00x20.

What are the excavation performance specifications of the Volvo EW160D?

The Volvo EW160D has a dredging depth of 6.2 meters and a maximum horizontal reach of 9.8 meters.

What is the bucket capacity of the Volvo EW160D wheel excavator?

The bucket capacity of the Volvo EW160D wheel excavator is 0.76 cubic meters.

How much is a Volvo EW160D Wheel excavator (2012u20132016) worth?

The residual value of the Volvo EW160D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
