EW160B Volvo Excavator Specs & Dimensions - (2003 - 2007)

Model rating
9,67 / 10

Volvo is the manufacturer of the wheel excavator model EW 160 B. Find and download detailed specs and data sheets for this machine…

Volvo is the manufacturer of the wheel excavator model EW 160 B. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Volvo engine, this EW 160 B 16.2t machine can provide 103kW or 138 horse power for the wheel excavator. This Volvo wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The EW 160 B’s size is 2.54m x 8.2m x 3.11m. The bucket of EW 160 B has a capacity of 0,75m³ which is average for this type of machine.

Since 2003, this model has included Overload alert and Blade. Material Handling Excavator, Cabin adjustment and Diesel particulate filter are not provided on this model as of 2007. There are more detailed specifications and machine descriptions available in the original Volvo EW 160 B specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €181000 and €231000. Production of the EW 160 B stopped in 2007. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 8 other wheel excavators, which range from 7.2t up to 22.2t are produced by Volvo. Of these, EW 140 D, EW 60 E and also EW 210 D are the most frequently visited on LECTURA Specs. Throughout the production cycle of this EW 160 B wheel excavator, there have been around 8 models that average a price of €47400 for an age of 12 years Want more detailed specifications? Download the latest Volvo EW 160 B specs data sheet on LECTURA Specs today!

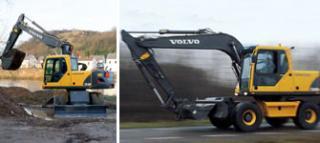

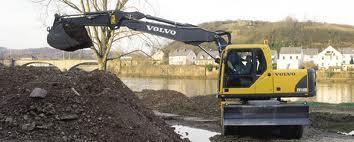

Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B
Wheel Excavators Volvo EW160B

Visit Volvo live at

Technical specs - EW160B Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.2 t
Standard tyres
10.00x20
Bucket capacity
0.75 m³
Transport length
8.2 m
Transport width
2.54 m
Transport height
3.11 m
Max. Reach horizontal
9.6 m
Dredging depth
6.2 m
Tear-out force
98.2 kN
Model series
EW
Engine manuf.
Volvo
Engine type
D 6 D-EJE 2
Engine power
103 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW160B FAQ

When was the Volvo EW160B manufactured?

The Volvo EW160B was manufactured from 2003 to 2007.

How much does the Volvo EW160B wheel excavator weigh?

The Volvo EW160B wheel excavator weighs 16.2 tons.

What are the transport dimensions of the Volvo EW160B wheel excavator?

The Volvo EW160B has a transport length of 8.2 meters, a transport width of 2.54 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Volvo EW160B wheel excavator?

The Volvo EW160B wheel excavator is equipped with standard tyres sized 10.00x20.

What are the excavation performance specifications of the Volvo EW160B wheel excavator?

The Volvo EW160B has a dredging depth of 6.2 meters and a maximum horizontal reach of 9.6 meters.

What are the power ratings of the Volvo EW160B wheel excavator?

The source data does not provide power rating information for the Volvo EW160B wheel excavator.

What is the bucket capacity of the Volvo EW160B wheel excavator?

The bucket capacity of the Volvo EW160B wheel excavator is 0.75 cubic meters.

How much is a Volvo EW160B Wheel excavator (2003u20132007) worth?

The residual value of the Volvo EW160B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
