TW150 Terex Excavator Specs & Dimensions - (2007 - 2023)

Weight: 17t – Standard tyres: 10.00-20 – Bucket capacity: 1.1m³ – Outrigger stabilisers: 22/4-fold – Transport length: 8.05m – Tra…

Weight: 17t – Standard tyres: 10.00-20 – Bucket capacity: 1.1m³ – Outrigger stabilisers: 22/4-fold – Transport length: 8.05m – Transport width: 2.5m

Check out detailed dimensions, specifications, information and technical data for Terex TW150 excavator manufactured between 2007 - 2023. Get more in-depth insight with Terex TW150 digger specifications. See information, like: Weight: 17t – Standard tyres: 10.00-20 – Bucket capacity: 1.1m³ – Outrigger stabilisers: 22/4-fold – Transport length: 8.05m – Transport width: 2.5m and more.

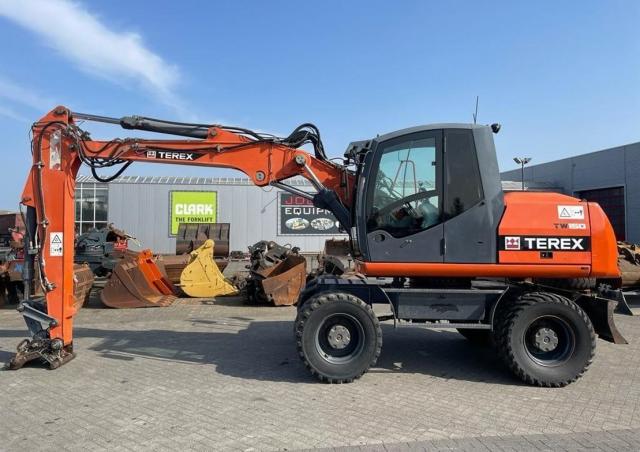

Wheel Excavators Terex TW150

Technical specs - TW150 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17 t
Standard tyres
10.00-20
Bucket capacity
1.1 m³
Outrigger stabilisers
2 2/4-fold
Transport length
8.05 m
Transport width
2.5 m
Transport height
3.15 m
Max. Reach horizontal
9.2 m
Dredging depth
5.6 m
Tear-out force
82 kN
Turning radius outside
2.19 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD2012L042V
Engine power
95 kW
Displacement
4.038 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dipper length, turning radius inside, model series, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex TW150 FAQ

When was the Terex TW150 manufactured?

The Terex TW150 was manufactured from 2007 to 2023.

How much does the Terex TW150 wheel excavator weigh?

The Terex TW150 wheel excavator weighs 17 tons.

What are the transport dimensions of the Terex TW150 wheel excavator?

The Terex TW150 has a transport length of 8.05 meters, a transport width of 2.5 meters, and a transport height of 3.15 meters.

What is the travel speed of the Terex TW150 wheel excavator?

The Terex TW150 wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Terex TW150 wheel excavator?

The Terex TW150 is equipped with standard tyres sized 10.00-20 and has 2 outrigger stabilisers.

What is the turning radius of the Terex TW150 wheel excavator?

The Terex TW150 has an outside turning radius of 2.19 meters.

What are the excavation performance specifications of the Terex TW150 wheel excavator?

The Terex TW150 has a dredging depth of 5.6 meters and a maximum horizontal reach of 9.2 meters.

What is the tear-out force of the Terex TW150 wheel excavator?

The Terex TW150 wheel excavator has a tear-out force of 82 kN.

What is the bucket capacity of the Terex TW150 wheel excavator?

The Terex TW150 wheel excavator has a bucket capacity of 1.1 cubic meters.
