1905M Terex Excavator Specs & Dimensions - (2006 - 2023)

Weight: 18.1t – Standard tyres: 10.00-20 – Bucket capacity: 1.49m³ – Outrigger stabilisers: 42/4-fold – Transport length: 4.155m –…

Weight: 18.1t – Standard tyres: 10.00-20 – Bucket capacity: 1.49m³ – Outrigger stabilisers: 42/4-fold – Transport length: 4.155m – Transport width: 2.5m

Check out detailed dimensions, specifications, information and technical data for Terex 1905M excavator manufactured between 2006 - 2023. Get more in-depth insight with Terex 1905M digger specifications. See information, like: Weight: 18.1t – Standard tyres: 10.00-20 – Bucket capacity: 1.49m³ – Outrigger stabilisers: 42/4-fold – Transport length: 4.155m – Transport width: 2.5m and more.

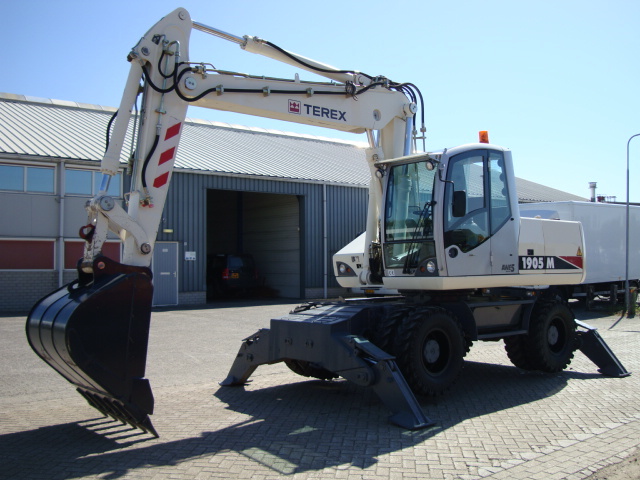

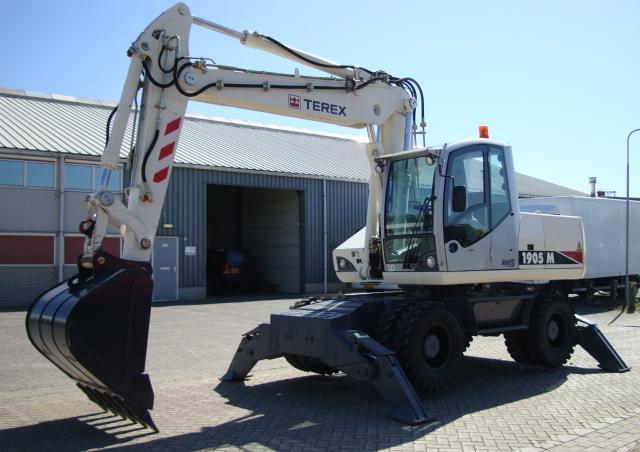

Wheel Excavators Terex 1905M

Technical specs - 1905M Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.1 t
Standard tyres
10.00-20
Bucket capacity
1.49 m³
Outrigger stabilisers
4 2/4-fold
Transport length
4.155 m
Transport width
2.5 m
Transport height
4 m
Max. Reach horizontal
9.65 m
Dredging depth
6.2 m
Tear-out force
98 kN
Bucket width
0.51 m
Turning radius outside
7.5 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
BF6M 2012C
Engine power
134 kW
Displacement
6.057 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dipper length, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex 1905M FAQ

When was the Terex 1905M manufactured?

The Terex 1905M was manufactured from 2006 to 2023.

How much does the Terex 1905M wheel excavator weigh?

The Terex 1905M wheel excavator weighs 18.1 tons.

What are the transport dimensions of the Terex 1905M wheel excavator?

The Terex 1905M has a transport length of 4.16 meters, a transport width of 2.5 meters, and a transport height of 4 meters.

What is the travel speed of the Terex 1905M wheel excavator?

The Terex 1905M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Terex 1905M wheel excavator?

The Terex 1905M is equipped with 10.00-20 standard tyres and has 4 outrigger stabilisers.

What is the turning radius of the Terex 1905M wheel excavator?

The Terex 1905M wheel excavator has an outside turning radius of 7.5 meters.

What are the excavation performance specifications of the Terex 1905M wheel excavator?

The Terex 1905M wheel excavator has a dredging depth of 6.2 meters and a maximum horizontal reach of 9.65 meters.

What is the tear-out force of the Terex 1905M?

The Terex 1905M has a tear-out force of 98 kN.

What are the bucket specifications of the Terex 1905M wheel excavator?

The Terex 1905M wheel excavator has a bucket capacity of 1.49 cubic meters and a bucket width of 0.51 meters.

How much is a Terex 1905M Wheel excavator (2006u20132023) worth?

The residual value of the Terex 1905M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
