SMB 2041 Terex-Schaeff Excavator Specs & Dimensions - (1995 - 2001)

Model rating
7,00 / 10

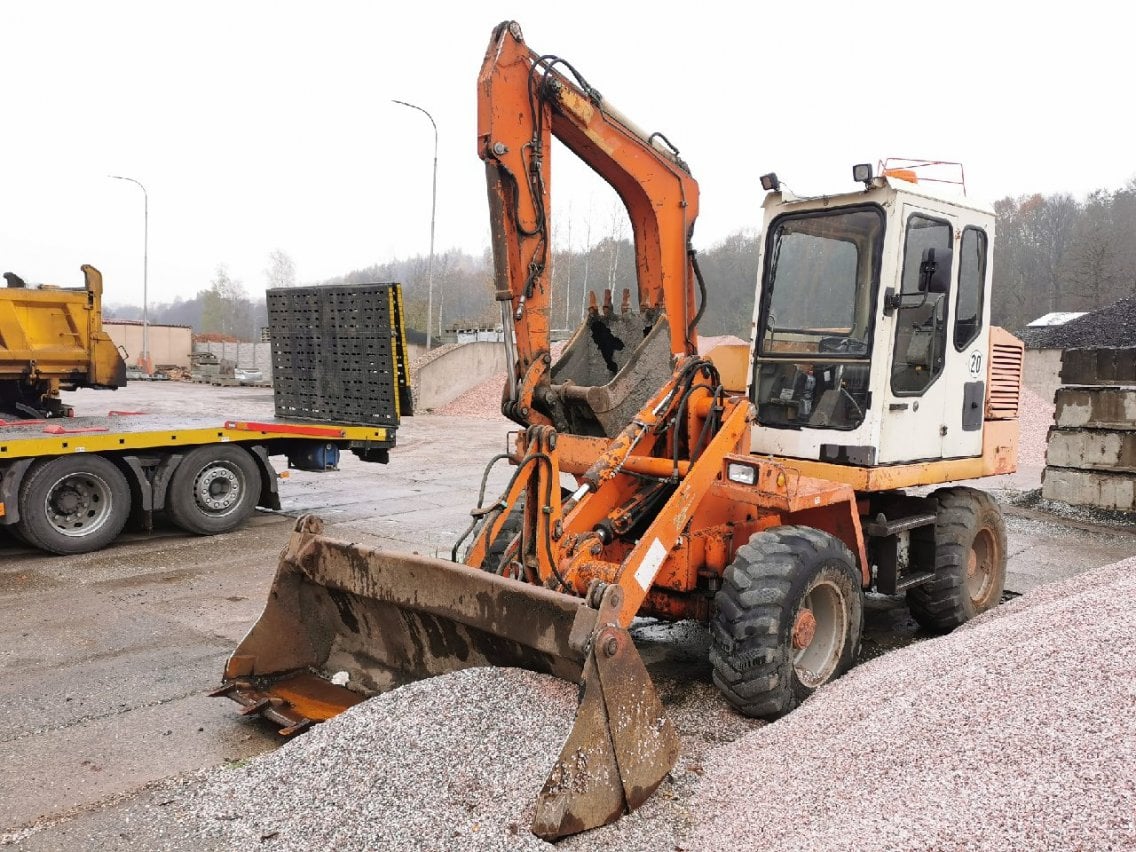

Manufactured by Terex-Schaeff, this is the SMB 2041 wheel excavator. Find and download detailed specs and data sheets for this mac…

Manufactured by Terex-Schaeff, this is the SMB 2041 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 59kW or 79 horse power, delivered from its powerful Perkins engine to the 8.5t SMB 2041 machine. The SMB 2041 is categorised in the smallest machine segment in the wheel excavators category. The bucket capacity of SMB 2041 is 0,27m³, which is above average for this type of machine.

Overload alert, Quick hitch mech. And Diesel particulate filter are not provided on this model as of 2001. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff SMB 2041 specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €101000 and €128000. Production of the SMB 2041 stopped in 2001. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Terex-Schaeff models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Terex-Schaeff SMB 2041 specs data sheet on LECTURA Specs today!

Wheel Excavators Terex-Schaeff SMB 2041

Technical specs - SMB 2041 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Standard tyres
16/70-20
Bucket capacity
0.27 m³
Model series
SMB
Engine manuf.
Perkins
Engine type
1004.4
Engine power
59 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff SMB 2041 FAQ

When was the Terex-Schaeff SMB 2041 manufactured?

The Terex-Schaeff SMB 2041 was manufactured from 1995 to 2001.

How much does the Terex-Schaeff SMB 2041 weigh?

The Terex-Schaeff SMB 2041 weighs 8.5 tons.

What are the undercarriage specifications of the Terex-Schaeff SMB 2041?

The Terex-Schaeff SMB 2041 has Standard tyres of size 16/70-20.

What is the bucket capacity of the Terex-Schaeff SMB 2041 wheel excavator?

The Terex-Schaeff SMB 2041 wheel excavator has a bucket capacity of 0.27 cubic meters.

How much is a Terex-Schaeff SMB 2041 Wheel excavator (1995u20132001) worth?

The residual value of the Terex-Schaeff SMB 2041 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
