HML 22 Terex-Schaeff Excavator Specs & Dimensions - (1997 - 2003)

Model rating
9,00 / 10

Terex-Schaeff is the manufacturer of the mini excavator model HML 22. Find and download detailed specs and data sheets for this ma…

Terex-Schaeff is the manufacturer of the mini excavator model HML 22. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Perkins engine, this HML 22 5.9t machine can provide 44kW or 59 horse power for the mini excavator. The Terex-Schaeff HML 22 can be grouped in the biggest machine segment in the mini excavators category. The HML 22’s size is 2.15m x 4.4m x 4m. The bucket of HML 22 has a capacity of 0.27m³ which is average for this type of machine.

It has been sold without air Rubber track, Track adaption and Aircondition as of 2003. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 22 specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €73000 and €92000. Production of the HML 22 stopped in 2003. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex-Schaeff currently produces other mini excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex-Schaeff HML 22 specs data sheet on LECTURA Specs today!

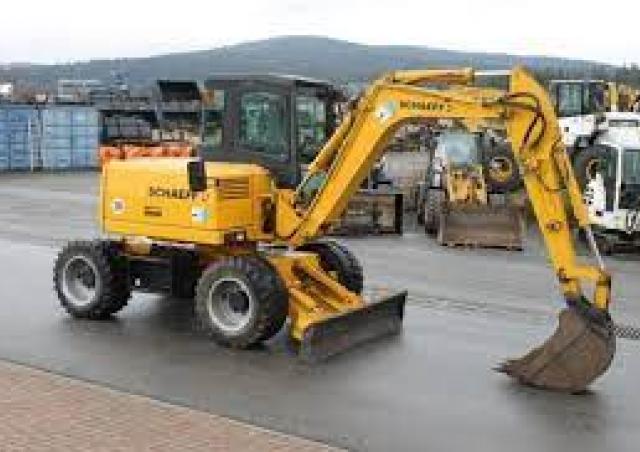

Wheel Excavators Terex-Schaeff HML 22

Technical specs - HML 22 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.9 t
Standard tyres
365/70-18MPT
Bucket capacity min.
0.095 m³
Bucket capacity max.
0.27 m³
Transport length
4.4 m
Transport width
2.15 m
Transport height
4 m
Max. Reach horizontal
5.78 m
Dredging depth
3.39 m
Tear-out force
25.4 kN
Bucket width
0.8 m
Model series
HML
Engine manuf.
Perkins
Engine type
704.30
Engine power
44 kW

More technical details, like: bucket capacity, boom, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, boom, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 22 FAQ

When was the Terex-Schaeff HML 22 manufactured?

The Terex-Schaeff HML 22 was manufactured from 1997 until 2003.

How much does the Terex-Schaeff HML 22 weigh?

The Terex-Schaeff HML 22 weighs 5.9 tons.

What are the transport dimensions of the Terex-Schaeff HML 22 wheel excavator?

The Terex-Schaeff HML 22 has a transport length of 4.4 meters, a transport width of 2.15 meters, and a transport height of 4 meters.

What are the undercarriage specifications of the Terex-Schaeff HML 22 wheel excavator?

The Terex-Schaeff HML 22 is equipped with standard tyres sized 365/70-18MPT.

What are the excavation performance specifications of the Terex-Schaeff HML 22 wheel excavator?

The Terex-Schaeff HML 22 has a dredging depth of 3.39 meters and a maximum horizontal reach of 5.78 meters.

What is the tear-out force, a power-related specification, of the Terex-Schaeff HML 22 wheel excavator?

The Terex-Schaeff HML 22 wheel excavator has a tear-out force of 25.4 kN.

What are the specifications of the primary work tool bucket on the Terex-Schaeff HML 22?

The Terex-Schaeff HML 22 has a bucket with a maximum capacity of 0.27 cubic meters, a minimum capacity of 0.1 cubic meters, and a width of 0.8 meters.

How much is a Terex-Schaeff HML 22 Wheel excavator (1997u20132003) worth?

The residual value of the Terex-Schaeff HML 22 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
