TB 295W Takeuchi Excavator Specs & Dimensions - (2024 - 2026)

Weight: 10.46t – Bucket capacity: 0.245m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 6.815m – Transport wid…

Weight: 10.46t – Bucket capacity: 0.245m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 6.815m – Transport width: 2.335m

Check out detailed dimensions, specifications, information and technical data for Takeuchi TB 295W excavator manufactured between 2024 - 2026. Get more in-depth insight with Takeuchi TB 295W digger specifications. See information, like: Weight: 10.46t – Bucket capacity: 0.245m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 6.815m – Transport width: 2.335m and more.

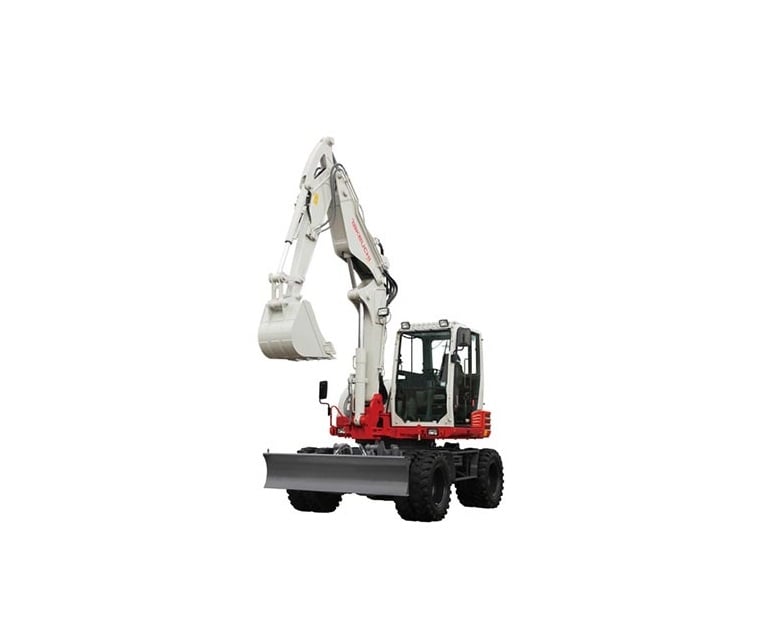

Wheel Excavators Takeuchi TB 295W

Technical specs - TB 295W Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.46 t
Bucket capacity
0.245 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
6.815 m
Transport width
2.335 m
Transport height
3 m
Max. Reach horizontal
7.555 m
Dredging depth
4.115 m
Tear-out force
39.7 kN
Travel speed
29.7 km/h
Model series
TB
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.621 l
Revolutions at max torque
2200 rpm
Max. torque
460 Nm
Emission level
V/Tier 4

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 295W FAQ

When was the Takeuchi TB 295W manufactured?

The Takeuchi TB 295W was first produced in 2024.

How much does the Takeuchi TB 295W weigh?

The Takeuchi TB 295W weighs 10.46 tons.

What are the transport dimensions of the Takeuchi TB 295W wheel excavator?

The Takeuchi TB 295W has a transport length of 6.815 meters, a transport width of 2.335 meters, and a transport height of 3 meters.

What is the travel speed of the Takeuchi TB 295W wheel excavator?

The Takeuchi TB 295W has a travel speed of 29.7 km/h.

How many outrigger stabilisers does the Takeuchi TB 295W wheel excavator have?

The Takeuchi TB 295W wheel excavator is equipped with 2 outrigger stabilisers.

What are the excavation performance specifications of the Takeuchi TB 295W wheel excavator?

The Takeuchi TB 295W has an adjustable boom, a dredging depth of 4.115 meters, and a maximum horizontal reach of 7.555 meters.

What power rating is available for the Takeuchi TB 295W wheel excavator?

There is no power rating data available for the Takeuchi TB 295W wheel excavator in the provided information.

What is the bucket capacity of the Takeuchi TB 295W wheel excavator?

The bucket capacity of the Takeuchi TB 295W wheel excavator is 0.245 cubic meters.

How much is a Takeuchi TB 295W Wheel excavator (2024u20132025) worth?

The residual value of the Takeuchi TB 295W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
