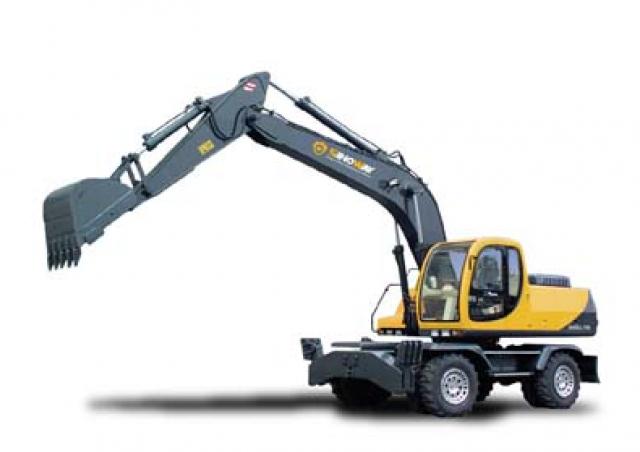

SWEL150 Sinoway Excavator Specs & Dimensions - (2018 - 2026)

Weight: 15t – Bucket capacity: 0.55m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 8.6m – Transport width: 2.…

Weight: 15t – Bucket capacity: 0.55m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 8.6m – Transport width: 2.51m

Check out detailed dimensions, specifications, information and technical data for Sinoway SWEL150 excavator manufactured between 2018 - 2026. Get more in-depth insight with Sinoway SWEL150 digger specifications. See information, like: Weight: 15t – Bucket capacity: 0.55m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 8.6m – Transport width: 2.51m and more.

Wheel Excavators Sinoway SWEL150

Technical specs - SWEL150 Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Bucket capacity
0.55 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
8.6 m
Transport width
2.51 m
Transport height
3.32 m
Max. Reach horizontal
8.39 m
Dredging depth
5.11 m
Tear-out force
92 kN
Travel speed
20 km/h
Model series
SWEL
Engine manuf.
Cummins
Engine type
4BT3.9
Engine power
93 kW
Displacement
3.9 l
Revolutions at max torque
2200 rpm
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWEL150 FAQ

When was the Sinoway SWEL150 manufactured?

The Sinoway SWEL150 was first produced in 2018.

How much does the Sinoway SWEL150 wheel excavator weigh?

The Sinoway SWEL150 wheel excavator weighs 15 tons.

What are the transport dimensions of the Sinoway SWEL150 wheel excavator?

The Sinoway SWEL150 has a transport length of 8.6 meters, a transport width of 2.51 meters, and a transport height of 3.32 meters.

What is the travel speed of the Sinoway SWEL150 wheel excavator?

The Sinoway SWEL150 wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sinoway SWEL150 wheel excavator?

The Sinoway SWEL150 wheel excavator is equipped with 2 outrigger stabilisers.

What are the excavation performance specifications of the Sinoway SWEL150 wheel excavator?

The Sinoway SWEL150 has a dredging depth of 5.11 meters, a maximum horizontal reach of 8.39 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sinoway SWEL150 wheel excavator, given that no power ratings are provided?

The Sinoway SWEL150 wheel excavator has a tear-out force of 92 kN. No power ratings are provided in the available data.

What is the bucket capacity of the Sinoway SWEL150 wheel excavator?

The Sinoway SWEL150 wheel excavator has a bucket capacity of 0.55 cubic meters.

How much is a Sinoway SWEL150 Wheel excavator (2018u20132025) worth?

The residual value of the Sinoway SWEL150 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
