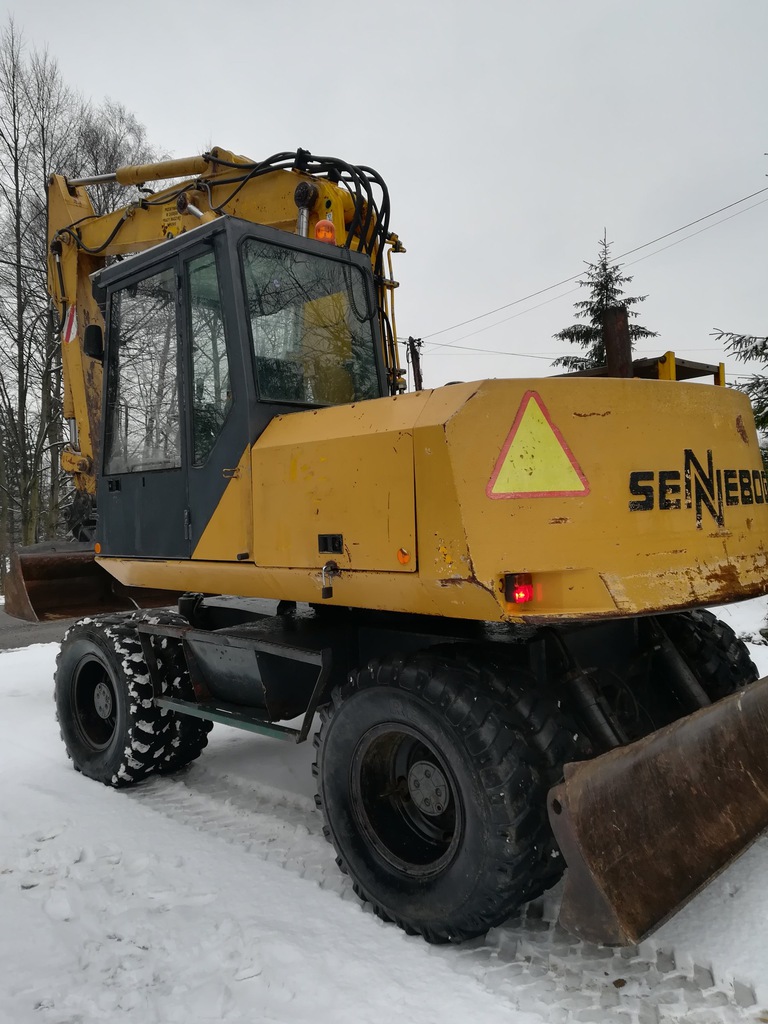

SM 13 C Sennebogen Excavator Specs & Dimensions - (1988 - 1995)

The SM 13 C wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine…

The SM 13 C wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this SM 13 C 13.8t machine can provide 62kW or 83 horse power for the wheel excavator. The Sennebogen SM 13 C can be grouped in the smallest machine segment in the wheel excavators category. The bucket of SM 13 C has a capacity of 0,6m³ which is average for this type of machine.

It has been sold without air Track guidance, Quick hitch hydr. And Quick hitch mech. As of 1995. There are more detailed specifications and machine descriptions available in the original Sennebogen SM 13 C specs data sheet.

The production stopped in 1995, where this SM 13 C was available at a new list price between €113000 and €144000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Sennebogen currently produces 14 other wheel excavators, which range from 16.9t up to 165t - the most visited on LECTURA Specs are 821 M, 850 M, 825 M. Want more detailed specifications? Download the latest Sennebogen SM 13 C specs data sheet on LECTURA Specs today!

Wheel Excavators Sennebogen SM 13 C

Visit Sennebogen live at

Technical specs - SM 13 C Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.8 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Model series
C
Engine manuf.
Deutz
Engine type
F4L913
Engine power
62 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sennebogen SM 13 C FAQ

When was the Sennebogen SM 13 C manufactured?

The Sennebogen SM 13 C was manufactured from 1988 to 1995.

How much does the Sennebogen SM 13 C weigh?

The Sennebogen SM 13 C weighs 13.8 tons.

What are the undercarriage tyre specifications of the Sennebogen SM 13 C wheel excavator?

The Sennebogen SM 13 C wheel excavator is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Sennebogen SM 13 C wheel excavator?

The Sennebogen SM 13 C wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Sennebogen SM 13 C Wheel excavator (1988u20131995) worth?

The residual value of the Sennebogen SM 13 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
