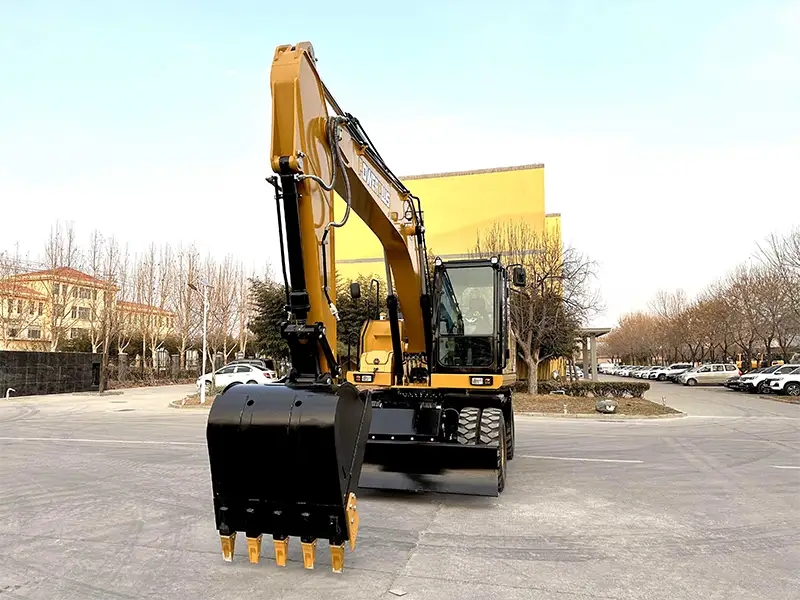

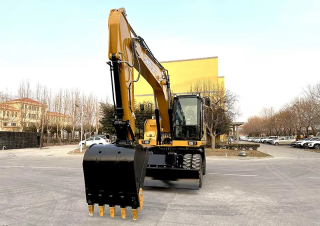

PP180W-XI PowerPlus Excavator Specs & Dimensions - (2026 - 2026)

Weight: 16.5t – Standard tyres: 10.0-20 – Bucket capacity: 0.8m³ – Transport length: 8.05m – Transport width: 2.5m – Transport hei…

Weight: 16.5t – Standard tyres: 10.0-20 – Bucket capacity: 0.8m³ – Transport length: 8.05m – Transport width: 2.5m – Transport height: 3.255m

Check out detailed dimensions, specifications, information and technical data for PowerPlus PP180W-XI excavator manufactured between 2026 - 2026. Get more in-depth insight with PowerPlus PP180W-XI digger specifications. See information, like: Weight: 16.5t – Standard tyres: 10.0-20 – Bucket capacity: 0.8m³ – Transport length: 8.05m – Transport width: 2.5m – Transport height: 3.255m and more.

Technical specs - PP180W-XI PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Standard tyres
10.0-20
Bucket capacity
0.8 m³
Transport length
8.05 m
Transport width
2.5 m
Transport height
3.255 m
Max. Reach horizontal
8.363 m
Dredging depth
5.35 m
Tear-out force
100 kN
Travel speed
35 km/h
Model series
PP
Engine manuf.
Cummins
Engine type
6BTAA5.9-C178
Engine power
132.7 kW
Emission level
Euro II

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
