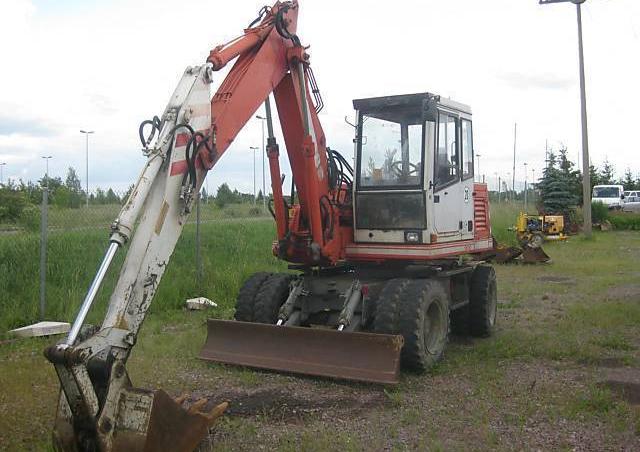

MH 2.8 C O&K Excavator Specs & Dimensions - (1987 - 1994)

The MH 2.8 C wheel excavator model is manufactured by O&K. Find and download detailed specs and data sheets for this machine h…

The MH 2.8 C wheel excavator model is manufactured by O&K. Find and download detailed specs and data sheets for this machine here.

The O&K MH 2.8 C is a 8.5t machine with Deutz engine which powers this model with up to 42kW or 56 horse power. The O&K MH 2.8 C can be grouped in the smallest machine segment in the wheel excavators category. The MH 2.8 C’s size is 2.23m x 5.95m x 2.95m. The bucket of MH 2.8 C has a capacity of 0,23m³ which is average for this type of machine.

It does not include Track guidance, Blade and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original O&K MH 2.8 C specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €95000 and €121000. Production of the MH 2.8 C stopped in 1994. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed O&K models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest O&K MH 2.8 C specs data sheet on LECTURA Specs today!

Wheel Excavators O&K MH 2.8 C

Technical specs - MH 2.8 C O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Standard tyres
8.25-20
Bucket capacity
0.23 m³
Transport length
5.95 m
Transport width
2.23 m
Transport height
2.95 m
Model series
MH
Engine manuf.
Deutz
Engine type
F4L912
Engine power
42 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, mono boom size, standard dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K MH 2.8 C FAQ

When was the O&K MH 2.8 C manufactured?

The O&K MH 2.8 C was manufactured from 1987 to 1994.

How much does the O&K MH 2.8 C wheel excavator weigh?

The O&K MH 2.8 C wheel excavator weighs 8.5 tons.

What are the transport dimensions of the O&K MH 2.8 C wheel excavator?

The O&K MH 2.8 C has a transport length of 5.95 meters, a transport width of 2.23 meters, and a transport height of 2.95 meters.

What is the standard tyre size of the O&K MH 2.8 C wheel excavator?

The O&K MH 2.8 C wheel excavator is equipped with standard tyres sized 8.25-20.

What is the bucket capacity of the O&K MH 2.8 C wheel excavator?

The O&K MH 2.8 C wheel excavator has a bucket capacity of 0.23 cubic meters.

How much is a O&K MH 2.8 C Wheel excavator (1987u20131994) worth?

The residual value of the O&K MH 2.8 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
