15MWR Mecalac Excavator Specs & Dimensions - (2017 - 2026)

Weight: 14.2t – Standard tyres: 18-19.5 – Bucket capacity: 0.77m³ – Outrigger stabilisers: 22/4-fold – Transport length: 5.2m – Tr…

Weight: 14.2t – Standard tyres: 18-19.5 – Bucket capacity: 0.77m³ – Outrigger stabilisers: 22/4-fold – Transport length: 5.2m – Transport width: 2.52m

Check out detailed dimensions, specifications, information and technical data for Mecalac 15MWR excavator manufactured between 2017 - 2026. Get more in-depth insight with Mecalac 15MWR digger specifications. See information, like: Weight: 14.2t – Standard tyres: 18-19.5 – Bucket capacity: 0.77m³ – Outrigger stabilisers: 22/4-fold – Transport length: 5.2m – Transport width: 2.52m and more.

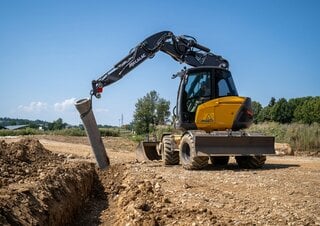

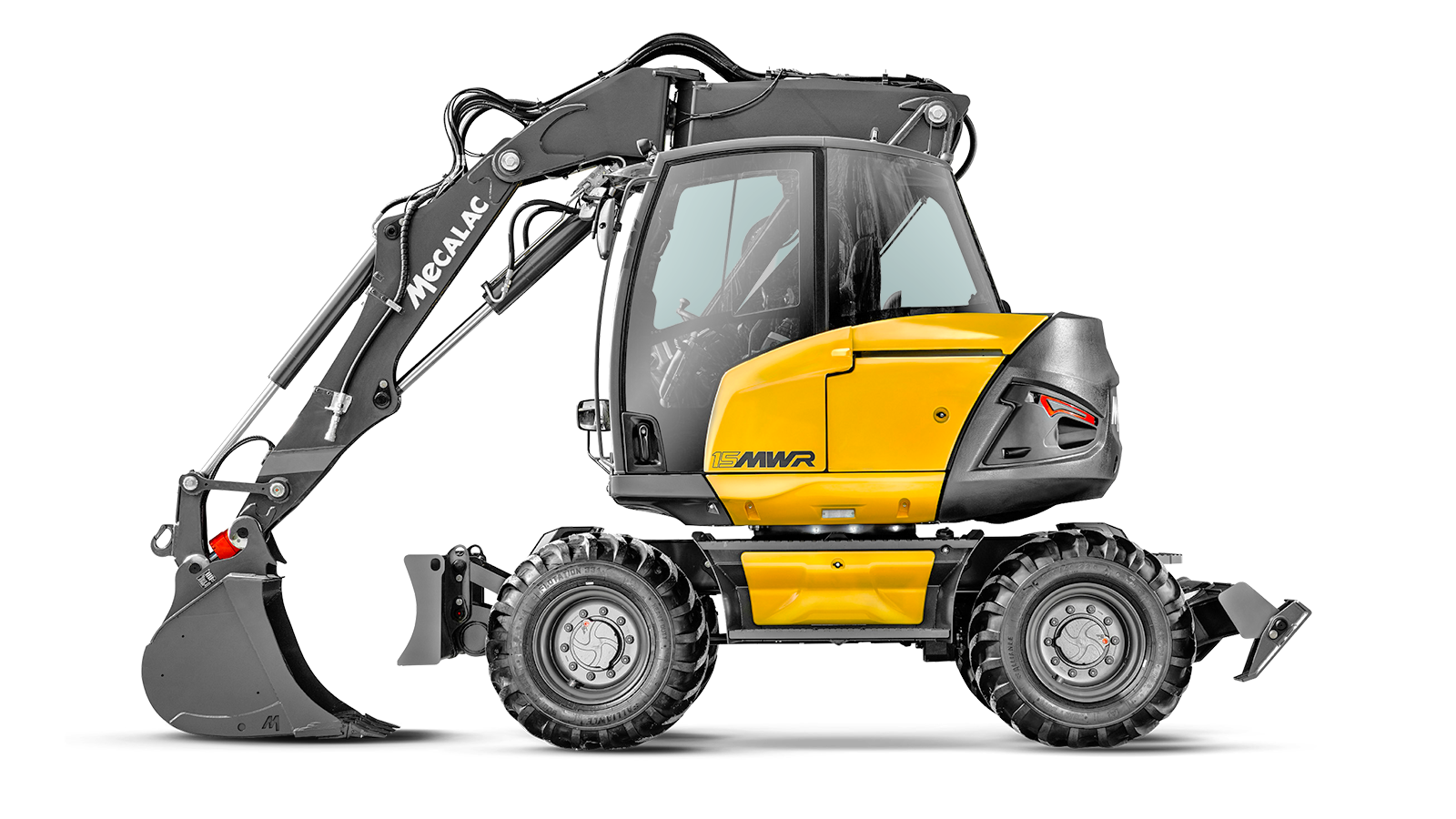

Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR
Wheel Excavators Mecalac 15MWR

Technical specs - 15MWR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Standard tyres
18-19.5
Bucket capacity
0.77 m³
Outrigger stabilisers
2 2/4-fold
Transport length
5.2 m
Transport width
2.52 m
Transport height
3.13 m
Max. Reach horizontal
8.3 m
Dredging depth
4.55 m
Tear-out force
55 kN
Bucket width
1.2 m
Turning radius inside
1.93 m
Turning radius outside
4.4 m
Travel speed
35 km/h
Model series
MWR
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
100 kW
Displacement
4 l
Revolutions at max torque
2000 rpm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., boom, dipper length, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 15MWR FAQ

When was the Mecalac 15MWR manufactured?

The Mecalac 15MWR was first produced in 2017.

How much does the Mecalac 15MWR wheel excavator weigh?

The Mecalac 15MWR wheel excavator weighs 14.2 tons.

What are the transport dimensions of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR has a transport length of 5.2 meters, a transport width of 2.52 meters, and a transport height of 3.13 meters.

What is the travel speed of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR has a travel speed of 35 km/h.

What are the undercarriage specifications of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR is equipped with 18-19.5 standard tyres and has 2 outrigger stabilisers.

What are the maneuverability specifications of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR has an outside turning radius of 4.4 meters and an inside turning radius of 1.93 meters.

What are the excavation performance specifications of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR wheel excavator has a dredging depth of 4.55 meters and a maximum horizontal reach of 8.3 meters.

What is the tear-out force of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR wheel excavator has a tear-out force of 55 kN.

What are the bucket specifications of the Mecalac 15MWR wheel excavator?

The Mecalac 15MWR has a bucket capacity of 0.77 cubic meters and a bucket width of 1.2 meters.

How much is a Mecalac 15MWR Wheel excavator (2017u20132025) worth?

The residual value of the Mecalac 15MWR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
