A 924 C Litonic Liebherr Excavator Specs & Dimensions - (2007 - 2014)

The A 924 C Litonic wheel excavator model is manufactured by Liebherr. Find and download detailed specs and data sheets for this m…

The A 924 C Litonic wheel excavator model is manufactured by Liebherr. Find and download detailed specs and data sheets for this machine here.

The Liebherr A 924 C Litonic is a 20.9t machine with Liebherr engine which powers this model with up to 135kW or 181 horse power. The Liebherr A 924 C Litonic can be grouped in the biggest machine segment in the wheel excavators category. The model's dimensions are 9.6m x 2.75m x 3.215m. The bucket of A 924 C Litonic has a capacity of 1,15m³ which is average for this type of machine.

The A 924 C Litonic is manufactured and distributed with Overload alert, Aircondition and Blade. Quick hitch hydr., Material Handling Excavator and Diesel particulate filter are not provided on this model as of 2014. There are more detailed specifications and machine descriptions available in the original Liebherr A 924 C Litonic specs data sheet. Available in German, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €288000 and €367000. Production of the A 924 C Litonic stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 916 Litronic, A 914 Compact Litronic, A 914 Litronic. We can see currently about 12 models of the A 924 C Litonic wheel excavator with an average age of 9 years and average price of €71700. Want more detailed specifications? Download the latest Liebherr A 924 C Litonic specs data sheet on LECTURA Specs today!

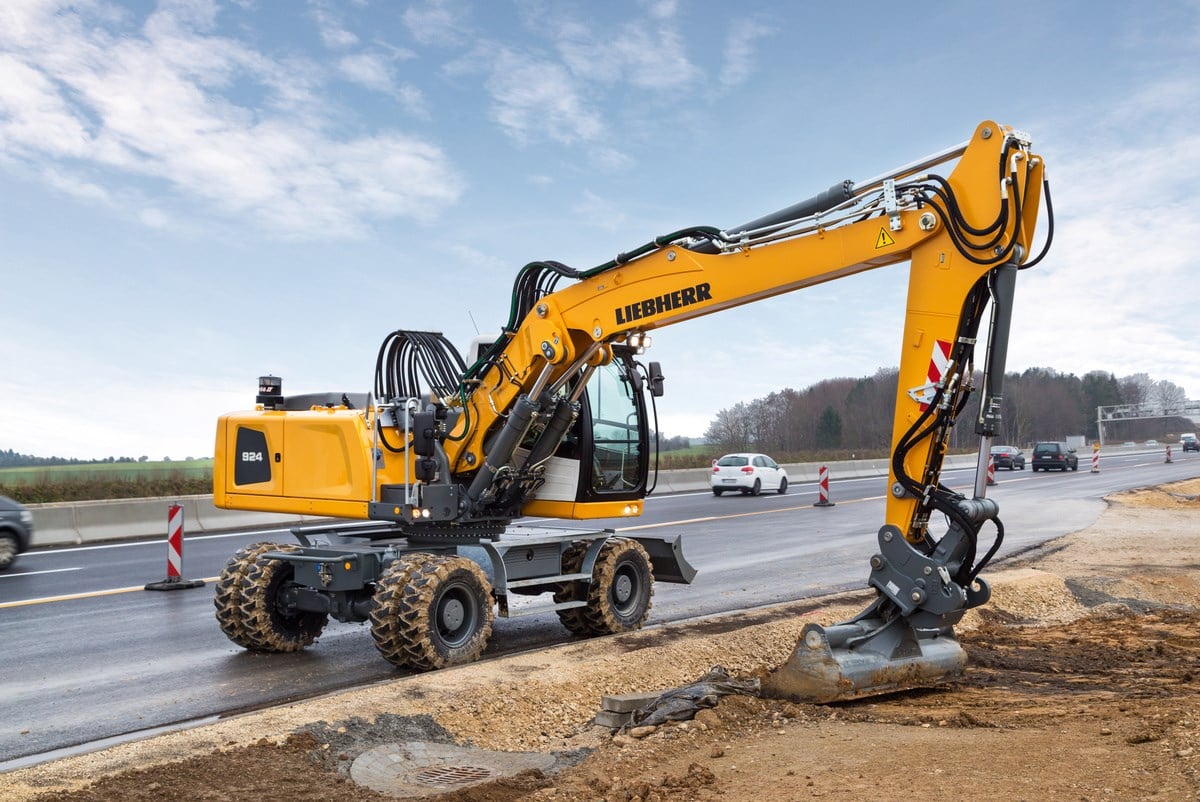

Wheel Excavators Liebherr A 924 C Litonic
Wheel Excavators Liebherr A 924 C Litonic
Wheel Excavators Liebherr A 924 C Litonic
Wheel Excavators Liebherr A 924 C Litonic

Visit Liebherr live at

Technical specs - A 924 C Litonic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.9 t
Standard tyres
11.00-20PR16
Bucket capacity
1.15 m³
Boom
VA
Outrigger stabilisers
4 2/4-fold
Transport length
9.6 m
Transport width
2.75 m
Transport height
3.215 m
Max. Reach horizontal
9.6 m
Dredging depth
6 m
Tear-out force
127.5 kN
Bucket width
1.25 m
Model series
A
Engine manuf.
Liebherr
Engine type
D934 L
Engine power
135 kW
Displacement
7 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 924 C Litonic FAQ

When was the Liebherr A 924 C Litonic manufactured?

The Liebherr A 924 C Litonic was manufactured from 2007 to 2014.

How much does the Liebherr A 924 C Litonic weigh?

The Liebherr A 924 C Litonic weighs 20.9 tons.

What are the transport dimensions of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic has a transport length of 9.6 meters, a transport width of 2.75 meters, and a transport height of 3.22 meters.

What is the fuel consumption range of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic wheel excavator has a fuel consumption range of 8 to 15 liters per hour.

What are the undercarriage specifications of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic wheel excavator is equipped with 11.00-20PR16 standard tyres and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic has a dredging depth of 6 meters, a maximum horizontal reach of 9.6 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic wheel excavator has a tear-out force of 127.5 kN.

What are the bucket specifications of the Liebherr A 924 C Litonic wheel excavator?

The Liebherr A 924 C Litonic has a bucket capacity of 1.15 cubic meters and a bucket width of 1.25 meters.

How much is a Liebherr A 924 C Litonic Wheel excavator (2007u20132014) worth?

The residual value of the Liebherr A 924 C Litonic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
