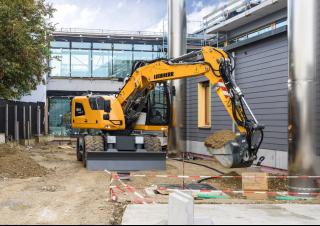

A 914 Compact Litronic G6.0 Liebherr Excavator Specs & Dimensions - (2016 - 2026)

Maximum Performance

High digging forces despite a tight tail swing permit flexible usage on every construction site. Hard surfaces can be processed quickly and precisely, thus also ensuring maximum productivity. A 914 Compact Litronic enables a high working speed, even when movements of attachment are performed in parallel. Excavating, backfilling and profiling tasks can be completed faster, and new tasks can be started sooner. The speed of the machine can be adjusted easily using the MODE switch for load lifting work or grading work. With the optional joystick steering, the driver can steer the wheeled excavator proportionally using the mini joystick. In this way, working and driving movements can be performed at the same time without having to change controls, leading to more efficient operation for even greater productivity.

Precise Work

The standard joysticks with proportional controls and the extraordinary sensitivity of the hydraulic system enable precision work at high speeds and parallel movements. This means the machine operator can carry out the most challenging tasks in a short time, not only at reduced speed but also with maximum performance output from the machine. The digging brake means that manual actuation of the brake pedal is no longer necessary in some applications. Particularly in applications with a frequent transfer of the excavator, this leads to quicker work processes and thus increases safety for people and the machine.

Bright, Longlife Lighting

Various headlights provide optimal lighting in the working area, thus ensuring a better view and greater safety for people and the machine. The standard LED rear lights not only look great, but they also have high luminosity and an extremely long life.

Service Every Step of the Way – Simple, Fast and Reliable

Liebherr compact wheeled excavators are not only powerful, robust, precise and efficient, but they also impress with the service-orientated machine design. Maintenance is performed quickly, simply and safely. This reduces maintenance costs and keeps machine downtimes to a minimum.

Service-based Machine Design

The service-based machine design guarantees short servicing times, thus minimizing maintenance costs due to the time it saves. All the maintenance points are easily accessible from the ground and easy to reach due to the large, wide-opening service doors. The enhanced service concept places the maintenance points close to each other and reduces their number to a minimum. This means that service work can be completed even more quickly and efficiently.

Engine Idling and Engine Shut-down

The standard automatic idling function reduces the engine speed to idle as soon as the operator takes his hand from the joystick so that no hydraulic function is activated. Proximity sensors in the joystick levers restore the original engine speed as soon as the operator’s hand is moved towards the lever again. This ensures that the set engine speed is available immediately. The result is a combination of fuel saving and reduced noise levels. Operating costs can be reduced even further with the optional automatic engine shut-down function.

Low Noise Levels

The use of viscoelastic mounts, good insulation and low-noise diesel engines from Liebherr minimises noise emissions and vibrations.

Pleasant Climate

The use of an efficient auxiliary heater significantly enhances cab comfort, productive work time and safety. The upstream warm-up phase also protects the engine components and reduces wear.

Diesel Engine

Fuel anti-theft device. Liebherr particle filter. Reversible fan drive, fully automatic. Automatic engine shut-down (time adjustable). Preheating fuel. Preheating coolant.

Operating Weight

The operating weight includes the basic machine with 8 tyres plus intermediate rings, a two-piece boom 4.85 m, stick 2.25 m, quick coupler SWA 33 and bucket 850 mm/0.50 m³. The undercarriage versions and their weights are as follows: A 914 Compact Litronic with rear blade weighs 15,500 kg, with rear outriggers and front blade weighs 16,000 kg, A 914 Compact EW Litronic with rear blade weighs 15,700 kg, and with rear outriggers and front blade weighs 16,800 kg.

Undercarriage

Dual-circuit braking system. Rear blade stabilizer. Rear + front stabilizer blade. Lighting function coupling. Trailer coupling with bolt, automatic. Engine brake, automatic. Tyres (twin tyres) Liebherr EM 22 290/90-20. Tyres (twin tyres) Mitas EM 22. Individual control outriggers. Travel speed levels, four. Tilt function of trailer, hydraulic. Mudguards (rear and front). Load holding valve on each stabilization cylinder. Powershift transmission, semiautomatic. Parking brake, maintenance-free. Rear outriggers + front stabilizer blade. Tyres, various makes. Protection for piston rods, stabilizer cylinder. Speedo. Storage compartment left – lockable. Storage compartment right – lockable. Undercarriage EW 7.75 m². Tool equipment, extended.

Liebherr Working Tools and LIKUFIX

To boost the productivity of its construction machines, Liebherr offers a broad range of working tools for different fields of application. Furthermore, the hydraulic excavators can also be equipped with the Liebherr LIKUFIX hydraulic quick coupling system. The combination of a hydraulic Liebherr quick coupling system with the LIKUFIX coupling block permits fast safe changing of mechanical and hydraulic working tools from the operator’s cabin. This boosts productivity on average by 30%.

Hydraulic Oils with Added Value

Liebherr hydraulic oils achieve a service life of 6,000 operating hours plus. Instead of having defined change intervals, the results of the oil analysis (every 1,000 operating hours or after one year) determine when the oil needs to be changed. The unique Liebherr Hydraulic Plus oil can even achieve a service life of 8,000 operating hours plus at the same time reducing fuel consumption by up to 5%.

Hydraulic System

Shut-off valve between hydraulic tank and pump(s). Pressure test fittings. Accumulator for controlled lowering of the equipment with the engine shut down. Hydraulic oil filter with integrated microfilter. Liebherr hydraulic oil from -20 °C to +40 °C. Liebherr hydraulic oil, biologically degradable. Liebherr hydraulic oil, specially for warm or cold regions. Bypass filter. Switchover high pressure circuit and tipping cylinder. Switchover high pressure circuit and two-piece boom.

Ergonomic Excellence – Superior Cabin Design for Operator Comfort and Wellbeing

The modern Liebherr operator’s cab is the largest in this machine class, and offers the best conditions for healthy, focussed and productive working. Standard features include an air-sprung operator seat with seat heating, automatic air conditioning and the ergonomically arranged control elements with touchscreen indicating unit. An example of the extensive safety equipment is the roll-over protection system (ROPS) for the cab fitted as standard according to ISO 12117-2.

Automatic Air Conditioning

The automatic air conditioning offers convincingly intuitive operation. Temperature, blower setting and the various air nozzles in the head, chest and foot areas are set using the touch screen on the indicating unit. The defrost/defog one-button function clears fogged up windows in the shortest possible time. The filter for the cab air can be changed easily and conveniently from the outside.

Operator Seats

The Standard, Comfort and Premium operator seat versions offer sitting comfort at the highest level. Even the standard operator seat offers an extensive range of features such as air suspension, seat heating, headrest, lumbar support and many more.

Radio with Hands-free Device

The optional Liebherr radio is MP3-compatible, has a USB connection and can be used as interface for the integral hands-free kit. If the machine operator connects his smartphone to the radio using Bluetooth, the touchscreen can be used to control phone calls. This means that all media, including the radio, MP3 or phone calls, are controlled using a central unit which provides greater clarity, simplicity and comfort.

Control Unit

The large touchscreen provides the operator with a fast, uncomplicated interface which delivers all the information required for working with the machine. A flat, intuitive menu system ensures that it can be readily understood so that the control unit can be used in a highly productive way.

Uppercarriage

Uppercarriage rear light, 2 pieces, LED. Uppercarriage rear side light, 1 piece, LED. Refuelling system with filling pump. Main battery switch for electrical system. Engine hood with gas spring. Amber beacon, at uppercarriage, LED double flash. Service doors, lockable.

Efficient Management

LiDAT, Liebherr’s own data transmission and positioning system, facilitates efficient management, monitoring and control of the entire fleet in terms of machinery data recording, data analysis, fleet management and service. All of the important machinery data can be viewed at any time on a web browser. LiDAT provides you comprehensive work deployment documentation, greater availability thanks to shorter downtimes, faster support from the manufacturer, quicker detection of strain/overload and subsequently a longer service life of the machine as well as greater planning efficiency.

Driving Oscillation Damper

The driving oscillation damper massively reduces vibrations in the whole machine that can occur when driving a wheeled excavator. This is mainly advantageous during longer journeys, not only onroad but also offroad. The driving oscillation dampers comprise pressure accumulators that act as “shock absorbers” on the lift cylinders to ensure that vibrations from the equipment are not transferred to the uppercarriage. The damping function reduces the mechanical load on the steel structure, which in turn results in a longer service life of the components. The smoother driving response gives the driver a faster, more comfortable and thereby more efficient driving experience.

Pipe Fracture Safety Valves

The standard pipe fracture safety valves on the stick and hoist cylinders prevent the attachments from dropping in an unregulated way and ensure maximum safety during every operation.

Lift Capacities

The lift capacities on the load lift hook of the Liebherr quick coupler SWA 33 without attachment are stated in metric tons (t) and are valid on a firm, level supporting surface with blocked oscillating axle. These capacities can be slewed through 360° with the undercarriage in the transverse position. Capacities in the longitudinal position of the undercarriage (+/- 15°) are specified over the steering axle with the stabilizers raised and over the rigid axle with the stabilizers down. Indicated loads are based on the ISO 10567 standard and do not exceed 75% of tipping or 87% of hydraulic capacity, or are limited by the permissible load of the load lift hook on the quick coupler (max. 5 t). Without the quick coupler, lift capacities will increase by up to 110 kg. In accordance with the harmonised European Standard EN 474-5, hydraulic excavators used for lifting operations must be equipped with pipe fracture safety valves, an overload warning device, a load lift hook, and a lift capacity chart.
