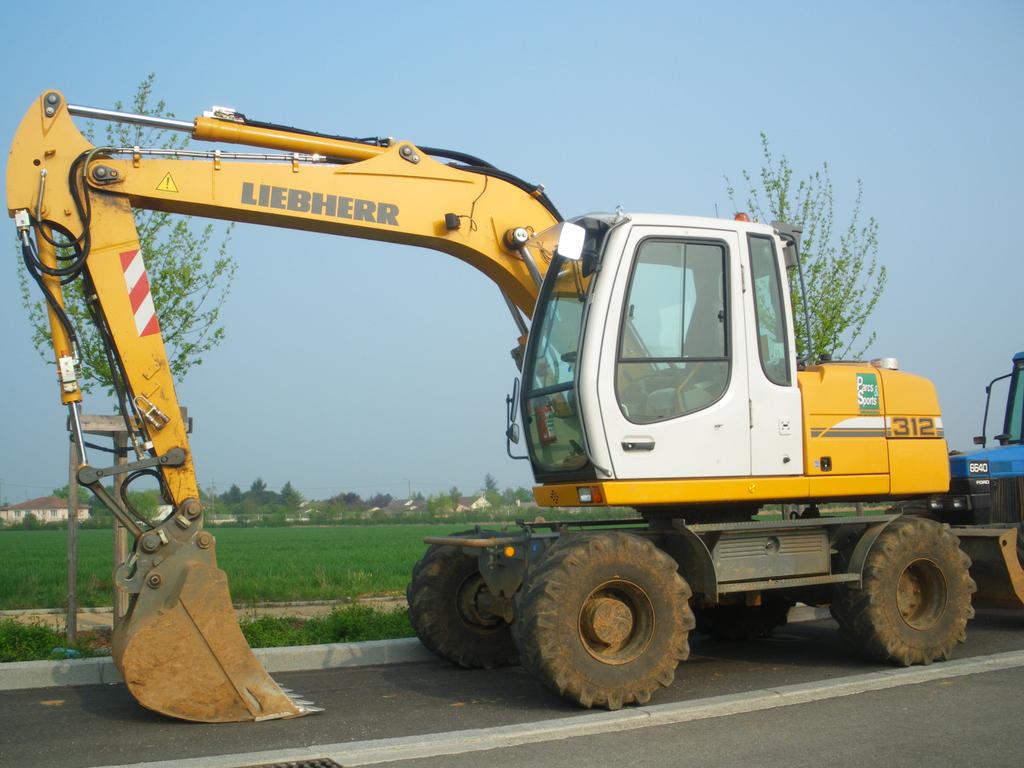

A 312 Litronic Liebherr Excavator Specs & Dimensions - (2007 - 2011)

Manufactured by Liebherr, this is the A 312 Litronic wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Liebherr, this is the A 312 Litronic wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 81kW or 108 horse power, delivered from its powerful Deutz engine to the 13.4t A 312 Litronic machine. This Liebherr wheel excavator belongs to the smallest machine segment in the wheel excavators category. The A 312 Litronic’s size is 2.55m x 8.2m x 3.12m. The bucket of A 312 Litronic has a capacity of 0,5m³ which is average for this type of machine.

The Liebherr A 312 Litronic has been equipped and sold with Blade and Overload alert. It does not include Quick hitch hydr., Track guidance and Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Liebherr A 312 Litronic specs data sheet. Download a free data sheet in German from LECTURA Specs.

The production stopped in 2011, where this A 312 Litronic was available at a new list price between €183000 and €234000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 12 other wheel excavators, which range from 11.8t up to 27.1t are produced by Liebherr. Of these, A 914 Litronic, A 916 Litronic and also A 914 Compact Litronic are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Liebherr A 312 Litronic specs data sheet on LECTURA Specs today!

Wheel Excavators Liebherr A 312 Litronic

Visit Liebherr live at

Technical specs - A 312 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.4 t
Standard tyres
10.00-20PR16
Bucket capacity
0.5 m³
Boom
VA
Transport length
8.2 m
Transport width
2.55 m
Transport height
3.12 m
Max. Reach horizontal
8.5 m
Dredging depth
5.2 m
Tear-out force
67.9 kN
Bucket width
0.85 m
Model series
A
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
81 kW
Displacement
4 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, maximum transport length - mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 312 Litronic FAQ

When was the Liebherr A 312 Litronic manufactured?

The Liebherr A 312 Litronic was manufactured from 2007 to 2011.

How much does the Liebherr A 312 Litronic weigh?

The Liebherr A 312 Litronic weighs 13.4 tons.

What are the transport dimensions of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic has a transport length of 8.2 meters, a transport width of 2.55 meters, and a transport height of 3.12 meters.

What are the undercarriage tyre specifications of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator is equipped with standard tyres sized 10.00-20PR16.

What are the excavation performance specifications of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic has a dredging depth of 5.2 meters, a maximum horizontal reach of 8.5 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator has a tear-out force of 67.9 kN.

What are the bucket specifications of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator has a bucket capacity of 0.5 cubic meters and a bucket width of 0.85 meters.

How much is a Liebherr A 312 Litronic Wheel excavator (2007u20132011) worth?

The residual value of the Liebherr A 312 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
