808 2 P Kramer Excavator Specs & Dimensions - (1995 - 1999)

Manufactured by Kramer, this is the 808 2 P wheel excavator. Find and download detailed specs and data sheets for this machine her…

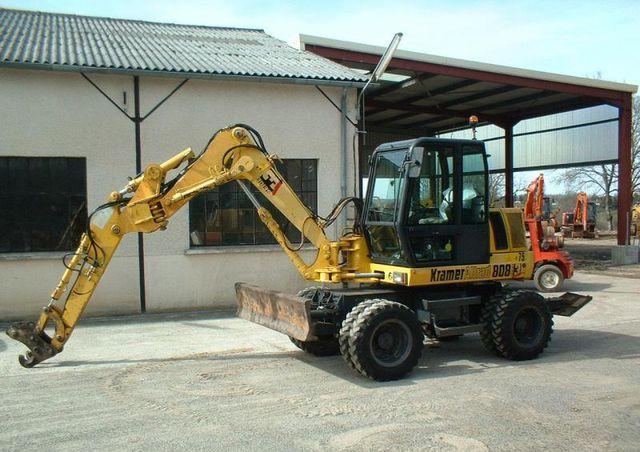

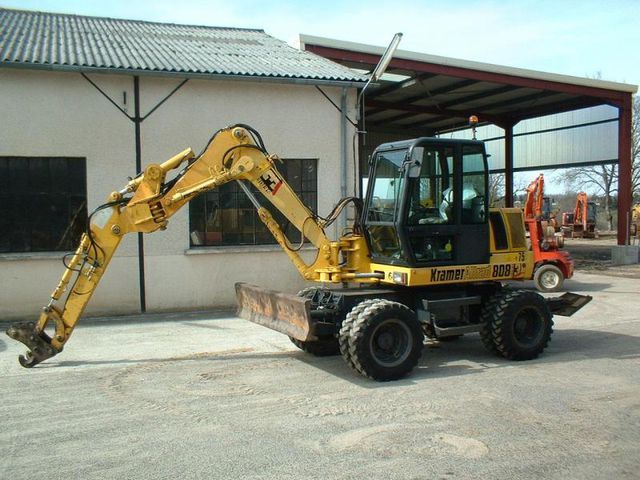

Manufactured by Kramer, this is the 808 2 P wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Kramer 808 2 P is a 8.7t machine with Perkins engine which powers this model with up to 56kW or 75 horse power. The 808 2 P is categorised in the smallest machine segment in the wheel excavators category. The bucket of 808 2 P has a capacity of 0,3m³ which is average for this type of machine.

The 808 2 P is manufactured and distributed with Blade. It does not include Material Handling Excavator, Track guidance and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Kramer 808 2 P specs data sheet.

The production stopped in 1999, where this 808 2 P was available at a new list price between €96000 and €123000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by Kramer. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Kramer 808 2 P specs data sheet on LECTURA Specs today!

Wheel Excavators Kramer 808 2 P

Technical specs - 808 2 P Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Standard tyres
8.25-20
Bucket capacity
0.3 m³
Outrigger stabilisers
2 2/4-fold
Engine manuf.
Perkins
Engine type
1004.4
Engine power
56 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside...

More technical details, like: bucket capacity min., bucket capacity max., boom, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Kramer 808 2 P FAQ

When was the Kramer 808 2 P manufactured?

The Kramer 808 2 P was manufactured from 1995 to 1999.

How much does the Kramer 808 2 P weigh?

The Kramer 808 2 P weighs 8.7 tons.

What are the undercarriage specifications of the Kramer 808 2 P wheel excavator?

The Kramer 808 2 P is equipped with standard tyres sized 8.25-20 and has 2 outrigger stabilisers.

What is the bucket capacity of the Kramer 808 2 P wheel excavator?

The Kramer 808 2 P wheel excavator has a bucket capacity of 0.3 cubic meters.

How much is a Kramer 808 2 P Wheel excavator (1995u20131999) worth?

The residual value of the Kramer 808 2 P depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
