Komatsu PW160-8 excavator specs (2012 - 2017)

Name: Komatsu PW160-8 Wheel Excavators
Brand: Komatsu

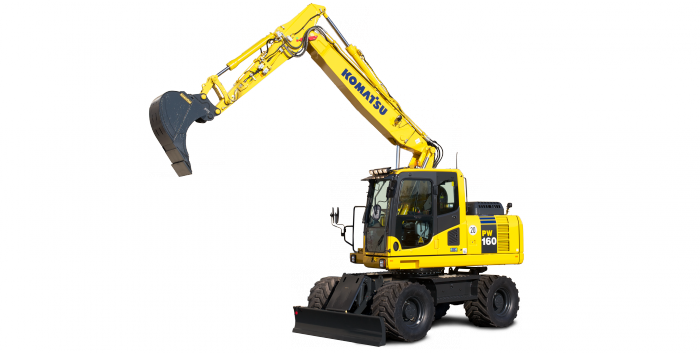

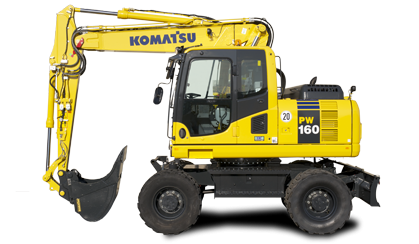

Manufactured by Komatsu, this is the PW 160-8 wheel excavator. Find and download detailed specs and data sheets for this machine h…

Manufactured by Komatsu, this is the PW 160-8 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 97kW or 130 horse power, delivered from its powerful Komatsu engine to the 14.91t PW 160-8 machine. This Komatsu wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.93m x 3.51m x 2.9m. The bucket capacity of PW 160-8 is 0,94m³, which is above average for this type of machine.

The PW 160-8 is manufactured and distributed with Blade. Aircondition, Overload alert and Quick hitch mech. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Komatsu PW 160-8 specs data sheet. You can download it for free in Swedish, French, Finnish, Polish, Spanish, Italian, Portuguese, Dutch, Norwegian, German, Czech and English on LECTURA Specs.

This model can be acquired for a list price between €205000 and €261000. Production of the PW 160-8 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Komatsu currently produces 8 other wheel excavators, which range from 10t up to 18.6t - the most visited on LECTURA Specs are PW 118 MR 8, PW 98 MR 8, PW 160-10. This PW 160-8 wheel excavator, which has been in production between 2012 and 2017 ranks in the LECTURA index at #15. Want more detailed specifications? Download the latest Komatsu PW 160-8 specs data sheet on LECTURA Specs today!

Technical specs - PW160-8 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.91 t

Standard tyres: 10.00-20

Bucket capacity: 1.13 m³

Boom: MB

Outrigger stabilisers: 2 2/4-fold

Transport length: 8.93 m

Transport width: 2.55 m

Transport height: 3.94 m

Max. Reach horizontal: 8.62 m

Dredging depth: 4.925 m

Travel speed: 35 km/h

Model series: PW

Engine manuf.: Komatsu

Engine type: SAA4D107E-1

Engine power: 90 kW

Displacement: 4.5 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Track guidance: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No
