PW100-1 Komatsu Excavator Specs & Dimensions - (1981 - 1988)

Weight: 10.6t – Standard tyres: 9-20-14 PR – Bucket capacity: 0.56m³ – Transport length: 6.97m – Transport width: 3.49m – Transpor…

Weight: 10.6t – Standard tyres: 9-20-14 PR – Bucket capacity: 0.56m³ – Transport length: 6.97m – Transport width: 3.49m – Transport height: 3.71m

Check out detailed dimensions, specifications, information and technical data for Komatsu PW100-1 excavator manufactured between 1981 - 1988. Get more in-depth insight with Komatsu PW100-1 digger specifications. See information, like: Weight: 10.6t – Standard tyres: 9-20-14 PR – Bucket capacity: 0.56m³ – Transport length: 6.97m – Transport width: 3.49m – Transport height: 3.71m and more.

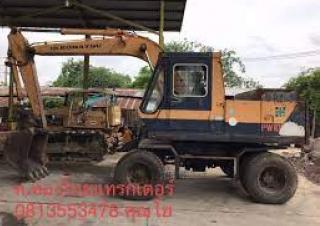

Wheel Excavators Komatsu PW100-1

Visit Komatsu live at

Technical specs - PW100-1 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.6 t
Standard tyres
9-20-14 PR
Bucket capacity
0.56 m³
Transport length
6.97 m
Transport width
3.49 m
Transport height
3.71 m
Turning radius inside
7.9 m
Travel speed
30 km/h
Model series
PW
Engine manuf.
Komatsu
Engine type
S4D105-5
Engine power
68 kW
Displacement
4.33 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius outside, dimension lxwxh, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PW100-1 FAQ

When was the Komatsu PW100-1 manufactured?

The Komatsu PW100-1 was manufactured from 1981 to 1988.

How much does the Komatsu PW100-1 weigh?

The Komatsu PW100-1 weighs 10.6 tons.

What are the transport dimensions of the Komatsu PW100-1 wheel excavator?

The Komatsu PW100-1 has a transport length of 6.97 meters, a transport width of 3.49 meters, and a transport height of 3.71 meters.

What is the travel speed of the Komatsu PW100-1 wheel excavator?

The Komatsu PW100-1 has a travel speed of 30 km/h.

What are the standard tyres specifications for the Komatsu PW100-1 wheel excavator?

The Komatsu PW100-1 wheel excavator is equipped with standard tyres sized 9-20-14 PR.

What is the turning radius inside of the Komatsu PW100-1 wheel excavator?

The Komatsu PW100-1 wheel excavator has an inside turning radius of 7.9 meters.

What is the bucket capacity of the Komatsu PW100-1 wheel excavator?

The bucket capacity of the Komatsu PW100-1 wheel excavator is 0.56 cubic meters.

How much is a Komatsu PW100-1 Wheel excavator (1981u20131988) worth?

The residual value of the Komatsu PW100-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
