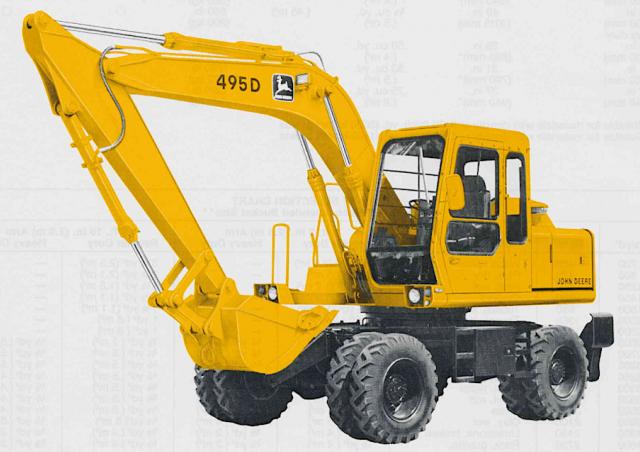

495D John Deere Construction Excavator Specs & Dimensions - (1989 - 2021)

Weight: 11.877t – Standard tyres: 9.00-20.0 x 12 PR – Bucket capacity: 0.4m³ – Bucket capacity min.: 0.4m³ – Bucket capacity max.:…

Weight: 11.877t – Standard tyres: 9.00-20.0 x 12 PR – Bucket capacity: 0.4m³ – Bucket capacity min.: 0.4m³ – Bucket capacity max.: 0.46m³ – Boom: MB

Check out detailed dimensions, specifications, information and technical data for John Deere Construction 495D excavator manufactured between 1989 - 2021. Get more in-depth insight with John Deere Construction 495D digger specifications. See information, like: Weight: 11.877t – Standard tyres: 9.00-20.0 x 12 PR – Bucket capacity: 0.4m³ – Bucket capacity min.: 0.4m³ – Bucket capacity max.: 0.46m³ – Boom: MB and more.

Wheel Excavators John Deere Construction 495D

Technical specs - 495D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.877 t
Standard tyres
9.00-20.0 x 12 PR
Bucket capacity
0.4 m³
Bucket capacity min.
0.4 m³
Bucket capacity max.
0.46 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
10.21 m
Transport width
2.49 m
Transport height
3.02 m
Max. Reach horizontal
9.56 m
Dredging depth
6.3 m
Tear-out force
88.1 kN
Bucket width
0.8 m
Travel speed
30 km/h
Model series
D
Engine manuf.
John Deere
Engine type
4-276T
Engine power
71 kW
Displacement
4.524 l
Max. torque
385 Nm
No. of cylinders
4
Cylinder bore x stroke
106.5x127 mm

More technical details, like: dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

John Deere Construction 495D FAQ

When was the John Deere Construction 495D manufactured?

The John Deere Construction 495D was manufactured from 1989 to 2021.

How much does the John Deere Construction 495D weigh?

The John Deere Construction 495D weighs 11.88 tons.

What are the transport dimensions of the John Deere Construction 495D wheel excavator?

The John Deere Construction 495D has a transport length of 10.21 meters, a transport width of 2.49 meters, and a transport height of 3.02 meters.

What is the travel speed of the John Deere Construction 495D wheel excavator?

The John Deere Construction 495D has a travel speed of 30 km/h.

What are the undercarriage specifications of the John Deere Construction 495D wheel excavator?

The John Deere Construction 495D has standard tyres sized 9.00-20.0 x 12 PR and 4 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the John Deere Construction 495D wheel excavator?

The John Deere Construction 495D wheel excavator has a dredging depth of 6.3 meters, a maximum horizontal reach of 9.56 meters, and is equipped with a monobloc boom.

What is the tear-out force of the John Deere Construction 495D wheel excavator?

The John Deere Construction 495D wheel excavator has a tear-out force of 88.1 kN.

What are the specifications of the primary work tool on the John Deere Construction 495D wheel excavator?

The primary work tool of the John Deere Construction 495D is a bucket with a capacity ranging from 0.4 to 0.46 cubic meters and a width of 0.8 meters.
