180C John Deere Construction Excavator Specs & Dimensions - (2005 - 2021)

Weight: 19.3t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stabi…

Weight: 19.3t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stabilisers: 42/4-fold

Check out detailed dimensions, specifications, information and technical data for John Deere Construction 180C excavator manufactured between 2005 - 2021. Get more in-depth insight with John Deere Construction 180C digger specifications. See information, like: Weight: 19.3t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stabilisers: 42/4-fold and more.

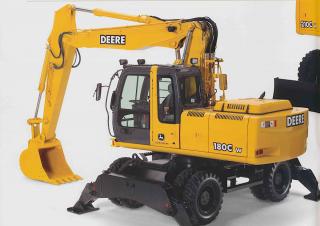

Wheel Excavators John Deere Construction 180C

Technical specs - 180C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.3 t
Bucket capacity
0.73 m³
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.99 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.37 m
Transport width
2.465 m
Transport height
3.08 m
Max. Reach horizontal
9.52 m
Dredging depth
5.79 m
Tear-out force
102 kN
Bucket width
0.915 m
Travel speed
30 km/h
Model series
C
Engine manuf.
Isuzu
Engine type
4BG1XABFA
Engine power
90.2 kW
Displacement
4.329 l
Max. torque
447 Nm
No. of cylinders
4
Emission level
EPA Tier II

More technical details, like: standard tyres, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

John Deere Construction 180C FAQ

When was the John Deere Construction 180C manufactured?

The John Deere Construction 180C was manufactured from 2005 to 2021.

How much does the John Deere Construction 180C wheel excavator weigh?

The John Deere Construction 180C wheel excavator weighs 19.3 tons.

What are the transport dimensions of the John Deere Construction 180C wheel excavator?

The John Deere Construction 180C has a transport length of 9.37 meters, a transport width of 2.47 meters, and a transport height of 3.08 meters.

What is the travel speed of the John Deere Construction 180C wheel excavator?

The John Deere Construction 180C has a travel speed of 30 km/h.

How many outrigger stabilisers does the John Deere Construction 180C wheel excavator have?

The John Deere Construction 180C wheel excavator is equipped with 4 outrigger stabilisers.

What are the excavation performance specifications of the John Deere Construction 180C wheel excavator?

The John Deere Construction 180C has a dredging depth of 5.79 meters, a maximum horizontal reach of 9.52 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 180C wheel excavator?

The John Deere Construction 180C wheel excavator has a tear-out force of 102 kN.

What are the bucket specifications of the John Deere Construction 180C wheel excavator?

The John Deere Construction 180C has a bucket capacity of 0.73 mu00b3, with a maximum capacity of 0.99 mu00b3 and a minimum capacity of 0.45 mu00b3, and a bucket width of 0.915 meters.
