JS145W JCB Excavator Specs & Dimensions - (2021 - 2026)

Weight: 16.96t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Bucket capacity min.: 0.265m³ – Bucket capacity max.: 0.995m…

Weight: 16.96t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Bucket capacity min.: 0.265m³ – Bucket capacity max.: 0.995m³ – Boom: VA

Check out detailed dimensions, specifications, information and technical data for JCB JS145W excavator manufactured between 2021 - 2026. Get more in-depth insight with JCB JS145W digger specifications. See information, like: Weight: 16.96t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Bucket capacity min.: 0.265m³ – Bucket capacity max.: 0.995m³ – Boom: VA and more.

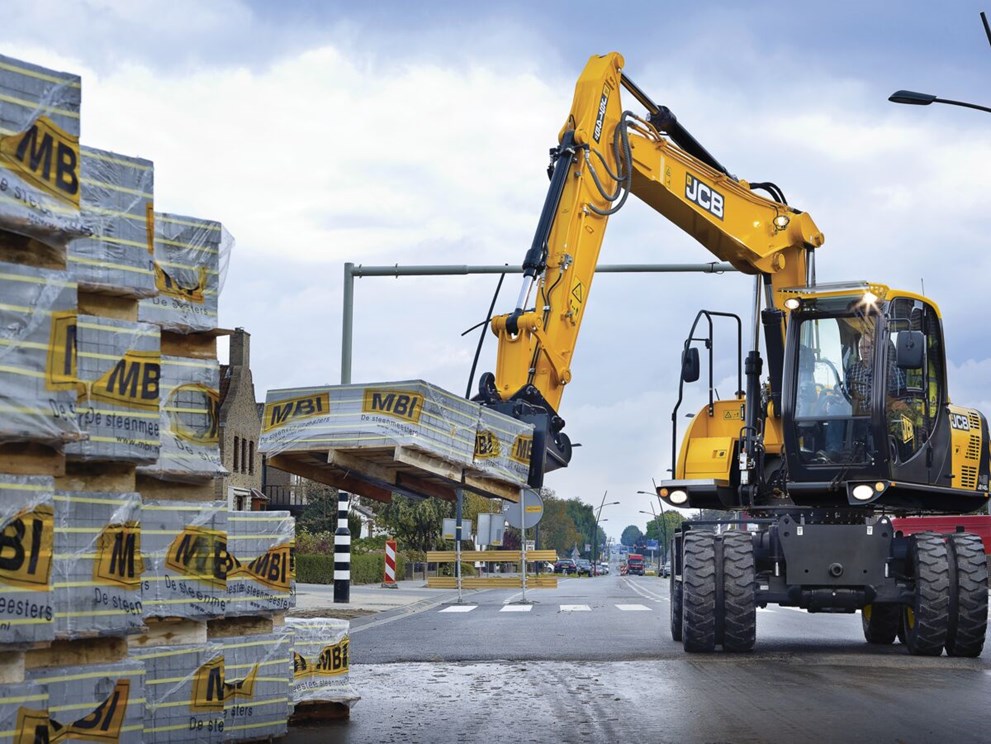

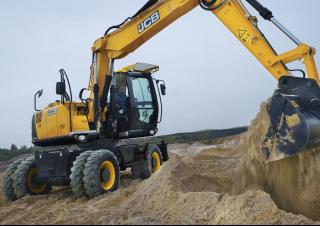

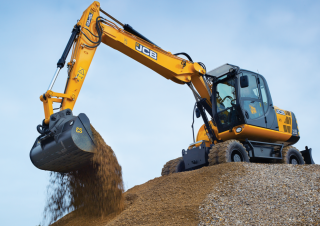

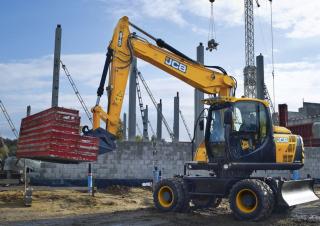

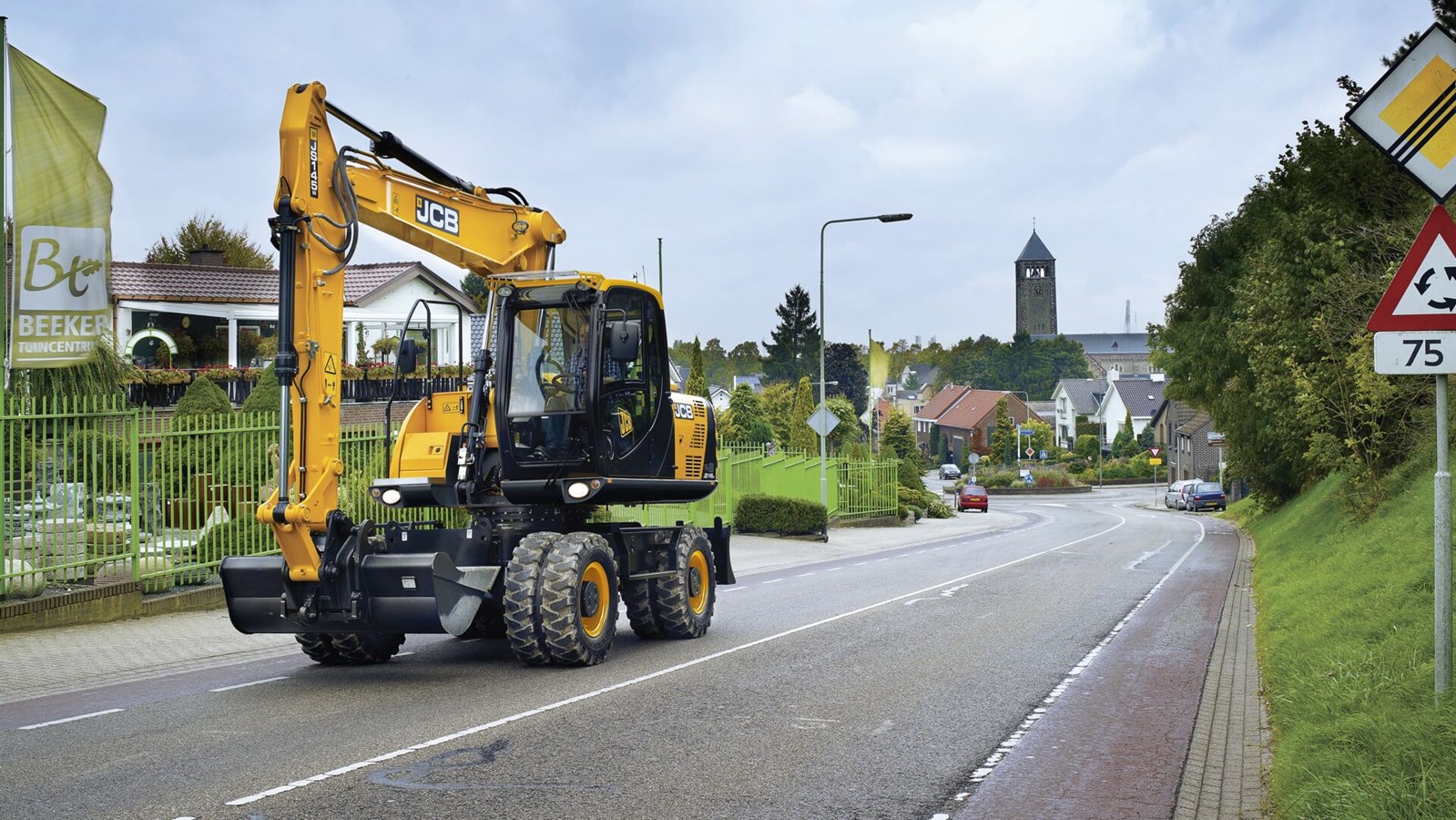

Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W

Visit JCB live at

Technical specs - JS145W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.96 t
Standard tyres
10.00x20
Bucket capacity
0.34 m³
Bucket capacity min.
0.265 m³
Bucket capacity max.
0.995 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
7.685 m
Transport width
2.49 m
Transport height
3.161 m
Max. Reach horizontal
8.75 m
Dredging depth
5.425 m
Tear-out force
74.3 kN
Bucket width
0.61 m
Dipper length
2.5 m
Turning radius outside
6.06 m
Travel speed
20 km/h
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax
Engine power
97 kW
Displacement
4.8 l
No. of cylinders
4
Emission level
V

More technical details, like: turning radius inside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

JCB JS145W FAQ

When was the JCB JS145W manufactured?

The JCB JS145W was first produced in 2021.

How much does the JCB JS145W wheel excavator weigh?

The JCB JS145W wheel excavator weighs 16.96 tons.

What are the transport dimensions of the JCB JS145W wheel excavator?

The JCB JS145W has a transport length of 7.69 meters, a transport width of 2.49 meters, and a transport height of 3.16 meters.

What is the travel speed of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has standard tyres sized 10.00x20 and is equipped with 2 outrigger stabilisers.

What is the turning radius of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has an outside turning radius of 6.06 meters.

What are the excavation performance specifications of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has a dredging depth of 5.425 meters, a maximum horizontal reach of 8.75 meters, features an adjustable boom, and has a dipper length of 2.5 meters.

What is the tear-out force of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has a tear-out force of 74.3 kN.

What are the specifications of the bucket on the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has a bucket capacity of 0.34 mu00b3, with a maximum capacity of 1 mu00b3 and a minimum capacity of 0.27 mu00b3, and a bucket width of 0.61 meters.

How much is a JCB JS145W Wheel excavator (2021u20132025) worth?

The residual value of the JCB JS145W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
