JS145W JCB Excavator Specs & Dimensions - (2014 - 2021)

JCB is the manufacturer of the wheel excavator model JS 145 W. Find and download detailed specs and data sheets for this machine h…

JCB is the manufacturer of the wheel excavator model JS 145 W. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 93kW or 124 horse power, delivered from its powerful JCB engine to the 16t JS 145 W machine. This JCB wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The JS 145 W’s size is 2.49m x 7.73m x 3.16m. The bucket capacity of JS 145 W is 1m³, which is above average for this type of machine.

It has been sold without air Diesel particulate filter, Track guidance and Aircondition as of 2017. There are more detailed specifications and machine descriptions available in the original JCB JS 145 W specs data sheet. Specification sheet is available for a free download in English, German, French and Italian - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €162000 and €206000. Production of the JS 145 W continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

JCB currently produces 9 other wheel excavators, which range from 11.2t up to 22t - the most visited on LECTURA Specs are JS 160 W, JS 200 W, JS 175 W. This JS 145 W wheel excavator, which has been in production between 2014 and 2017 ranks in the LECTURA index at #91. Want more detailed specifications? Download the latest JCB JS 145 W specs data sheet on LECTURA Specs today!

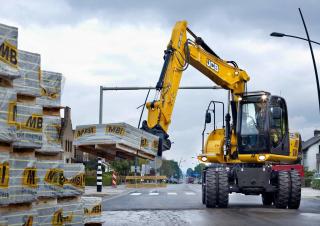

Wheel Excavators JCB JS145W

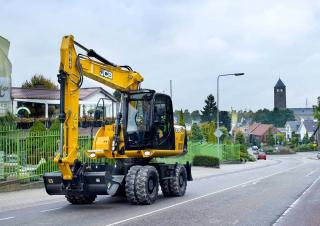

Wheel Excavators JCB JS145W

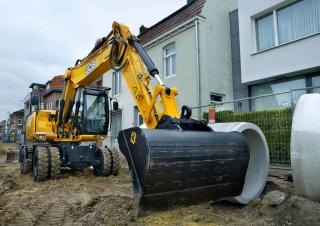

Wheel Excavators JCB JS145W

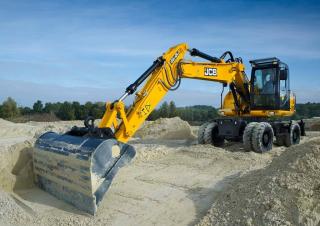

Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W
Wheel Excavators JCB JS145W

Visit JCB live at

Technical specs - JS145W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.8 t
Standard tyres
10.00x20
Bucket capacity
0.34 m³
Boom
VA
Outrigger stabilisers
4 2/4-fold
Transport length
7.665 m
Transport width
2.49 m
Transport height
3.161 m
Max. Reach horizontal
7.745 m
Dredging depth
4.775 m
Tear-out force
75.7 kN
Bucket width
0.61 m
Dipper length
2.5 m
Turning radius outside
6.06 m
Travel speed
33.5 km/h
Model series
JS
Engine manuf.
JCB
Engine type
444 T
Engine power
93 kW
Displacement
4.4 l
Revolutions at max torque
2050 rpm
No. of cylinders
4
Emission level
III B. T4i

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS145W FAQ

When was the JCB JS145W manufactured?

The JCB JS145W was manufactured from 2014 to 2021.

How much does the JCB JS145W wheel excavator weigh?

The JCB JS145W wheel excavator weighs 16.8 tons.

What are the transport dimensions of the JCB JS145W wheel excavator?

The JCB JS145W has a transport length of 7.67 meters, a transport width of 2.49 meters, and a transport height of 3.16 meters.

What is the travel speed of the JCB JS145W wheel excavator?

The JCB JS145W has a travel speed of 33.5 km/h.

What are the undercarriage specifications of the JCB JS145W wheel excavator?

The JCB JS145W is equipped with 10.00x20 standard tyres and has 4 outrigger stabilisers.

What is the outside turning radius of the JCB JS145W wheel excavator?

The JCB JS145W has an outside turning radius of 6.06 meters.

What are the excavation performance specifications of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has an adjustable boom, a dredging depth of 4.775 meters, a maximum horizontal reach of 7.745 meters, and a dipper length of 2.5 meters.

What is the tear-out force of the JCB JS145W wheel excavator?

The JCB JS145W wheel excavator has a tear-out force of 75.7 kN.

What are the specifications of the primary work tool bucket on the JCB JS145W wheel excavator?

The primary work tool bucket of the JCB JS145W has a capacity of 0.34 cubic meters and a width of 0.61 meters.

How much is a JCB JS145W Wheel excavator (2014u20132021) worth?

The residual value of the JCB JS145W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
