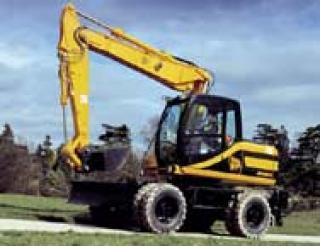

JCB JS 145 W excavator specs & dimensions (2001 - 2004)

Model rating: 7,00 / 10

JCB is the manufacturer of the wheel excavator model JS 145 W. Find and download detailed specs and data sheets for this machine h…

JCB is the manufacturer of the wheel excavator model JS 145 W. Find and download detailed specs and data sheets for this machine here.

The JCB JS 145 W is a 14.96t machine with Isuzu engine which powers this model with up to 72kW or 96 horse power. The JCB JS 145 W can be grouped in the medium sized machine segment in the wheel excavators category. The JS 145 W’s size is 2.49m x 7.58m x 3.04m. The bucket capacity of JS 145 W is 0,6m³, which is above average for this type of machine.

Quick hitch hydr., Aircondition and Cabin adjustment are not provided on this model as of 2004. There are more detailed specifications and machine descriptions available in the original JCB JS 145 W specs data sheet. Download a free data sheet in English and German from LECTURA Specs.

This model can be acquired for a list price between €137000 and €175000. Production of the JS 145 W stopped in 2004. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed JCB models of this type on LECTURA Specs are the JS 145 W, JS 200 W and JS 175 W, and 10 other wheel excavators, which currently range from 11.2t up to 22t are also available. Want more detailed specifications? Download the latest JCB JS 145 W specs data sheet on LECTURA Specs today!

JS 145 W

Years of manufacture: 2001—2004

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - JS 145 W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.96 t

Standard tyres: 10.00x20

Bucket capacity: 0.6 m³

Boom: VA

Outrigger stabilisers: 4 2/4-fold

Transport length: 7.58 m

Transport width: 2.49 m

Transport height: 3.04 m

Max. Reach horizontal: 9.185 m

Dredging depth: 4.9 m

Bucket width: 1 m

Model series: JS

Engine manuf.: Isuzu

Engine type: 4 BG 1 T-S 2

Engine power: 72 kW

Displacement: 4.329 l

Revolutions at max torque: 2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - shortest articulated, dipper length - standard articulated, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, sound level internal, sound level external, dipper standard, boost tearout mono, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, dipper short, boost tearout artic, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No
