JS 130 W JCB Excavator Specs & Dimensions - (2008 - 2013)

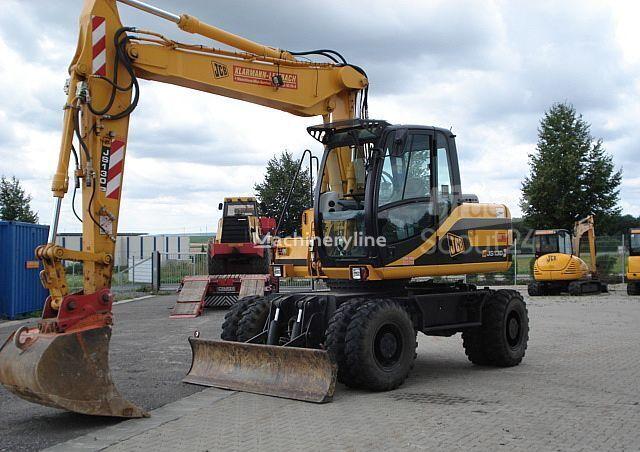

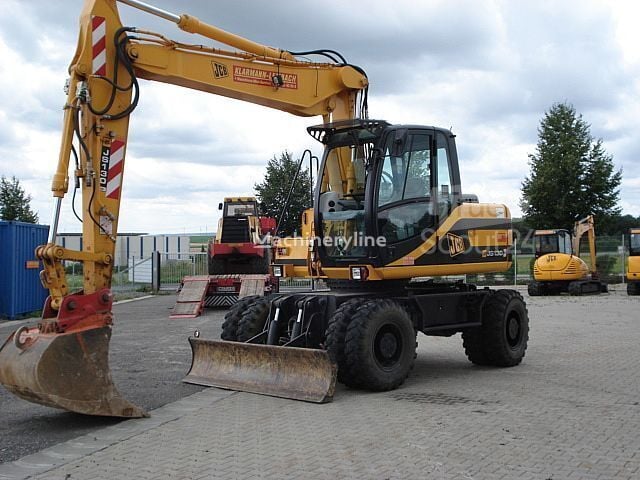

The JS 130 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine here.…

The JS 130 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 73kW or 97 horse power, delivered from its powerful Isuzu engine to the 14.2t JS 130 W machine. The JS 130 W is categorised in the smallest machine segment in the wheel excavators category. The bucket of JS 130 W has a capacity of 0,6m³ which is average for this type of machine.

It does not include Quick hitch mech., Quick hitch hydr. And Track guidance. There are more detailed specifications and machine descriptions available in the original JCB JS 130 W specs data sheet. You can download it for free in English on LECTURA Specs.

The production stopped in 2013, where this JS 130 W was available at a new list price between €148000 and €188000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

JCB currently produces 10 other wheel excavators, which range from 11.2t up to 22t - the most visited on LECTURA Specs are JS 200 W, JS 145 W, JS 175 W. Want more detailed specifications? Download the latest JCB JS 130 W specs data sheet on LECTURA Specs today!

Wheel Excavators JCB JS 130 W

Visit JCB live at

Technical specs - JS 130 W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.2 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Boom
VA
Max. Reach horizontal
9.23 m
Dredging depth
5.93 m
Tear-out force
93.85 kN
Model series
JS
Engine manuf.
Isuzu
Engine type
4JJIX
Engine power
73 kW
Displacement
2.999 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 130 W FAQ

When was the JCB JS 130 W manufactured?

The JCB JS 130 W was manufactured from 2008 to 2013.

How much does the JCB JS 130 W weigh?

The JCB JS 130 W weighs 14.2 tons.

What are the undercarriage specifications of the JCB JS 130 W wheel excavator?

The JCB JS 130 W wheel excavator is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the JCB JS 130 W wheel excavator?

The JCB JS 130 W has a dredging depth of 5.93 meters, a maximum horizontal reach of 9.23 meters, and features an adjustable boom.

What is the tear-out force of the JCB JS 130 W wheel excavator?

The JCB JS 130 W wheel excavator has a tear-out force of 93.85 kN.

What is the bucket capacity of the JCB JS 130 W wheel excavator?

The bucket capacity of the JCB JS 130 W wheel excavator is 0.6 cubic meters.

How much is a JCB JS 130 W Wheel excavator (2008u20132013) worth?

The residual value of the JCB JS 130 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
